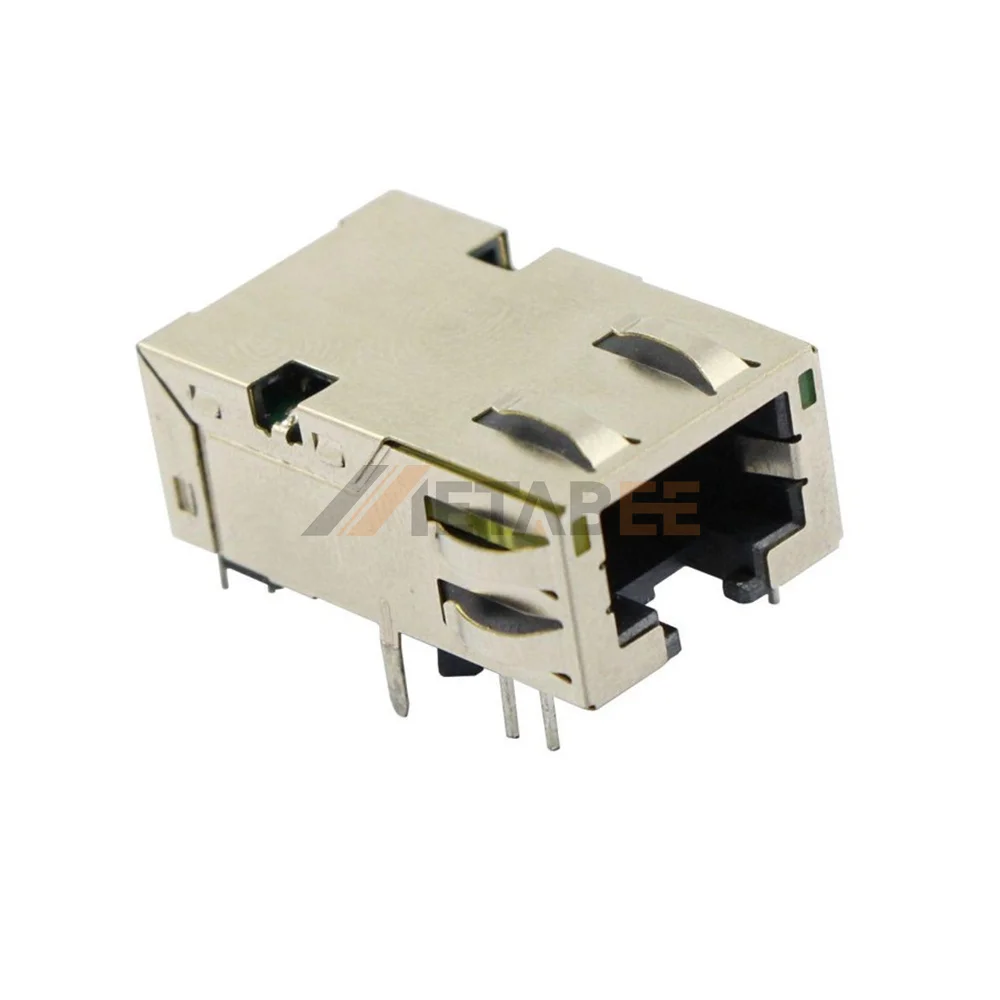

Single Port RJ45 Magjack POE, 8P8C, Cat6 Jack, 5G Base-T, Shielded with EMI, Through Hole, R/A
Introduction:
This high-performance component is a single port RJ45 magjack designed for modern networking needs. It supports fast 5G Base-T speeds and meets Cat6 standards reliably. The connector features an 8P8C interface and includes POE capabilities for powering devices directly. Built with robust shielding, it effectively minimizes EMI to ensure stable data transmission. The unit utilizes a right-angle orientation and through-hole mounting for secure PCB integration. It is an excellent choice for engineers seeking durability and high-speed communication in compact designs.
Key Features
- 5G Base-T Performance: Supports high-speed data transfer rates up to 5 Gbps.
- Integrated POE: Enables power delivery directly through the Ethernet cable.
- EMI Shielding: Metal housing blocks external interference for stable signals.
- Cat6 Compliance: Meets industry standards for high-performance network cabling.
- Through Hole Mounting: Solder tails provide superior mechanical retention and stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88AGX1-FS-VLG-M374C-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 5G Base-T | |
| Performance Category: | CAT6 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green/Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
