Introduction:
Using this single port RJ45 jack with integrated magnetics simplifies network board designs by replacing several separate filtering parts. High-temperature Nylon 46 thermoplastic ensures the housing withstands standard wave soldering without any warping. Integrated transformers inside the port effectively clean up 10/100 Base-T signals while protecting internal chips from electrical noise. Because it includes a board lock feature, the connector stays perfectly aligned and secure during the installation process. Dual green and yellow indicators provide a fast way to check link status and network activity at a glance. A nickel-plated copper alloy shell surrounds the jack to block electromagnetic interference in busy office gear.
Key Features
- Integrated Magnetics: Filters noise for stable 10/100 Base-T connectivity.
- Full EMI Shielding: Blocks interference to protect high-speed data flow.
- Board Lock Design: Ensures a strong and stable PCB attachment.
- Nylon 46 Housing: Survives high temperatures during industrial soldering processes.
- Link Status LEDs: Shows network activity with green and yellow lights.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LH-M4-HT-A | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | (Nylon 46) Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

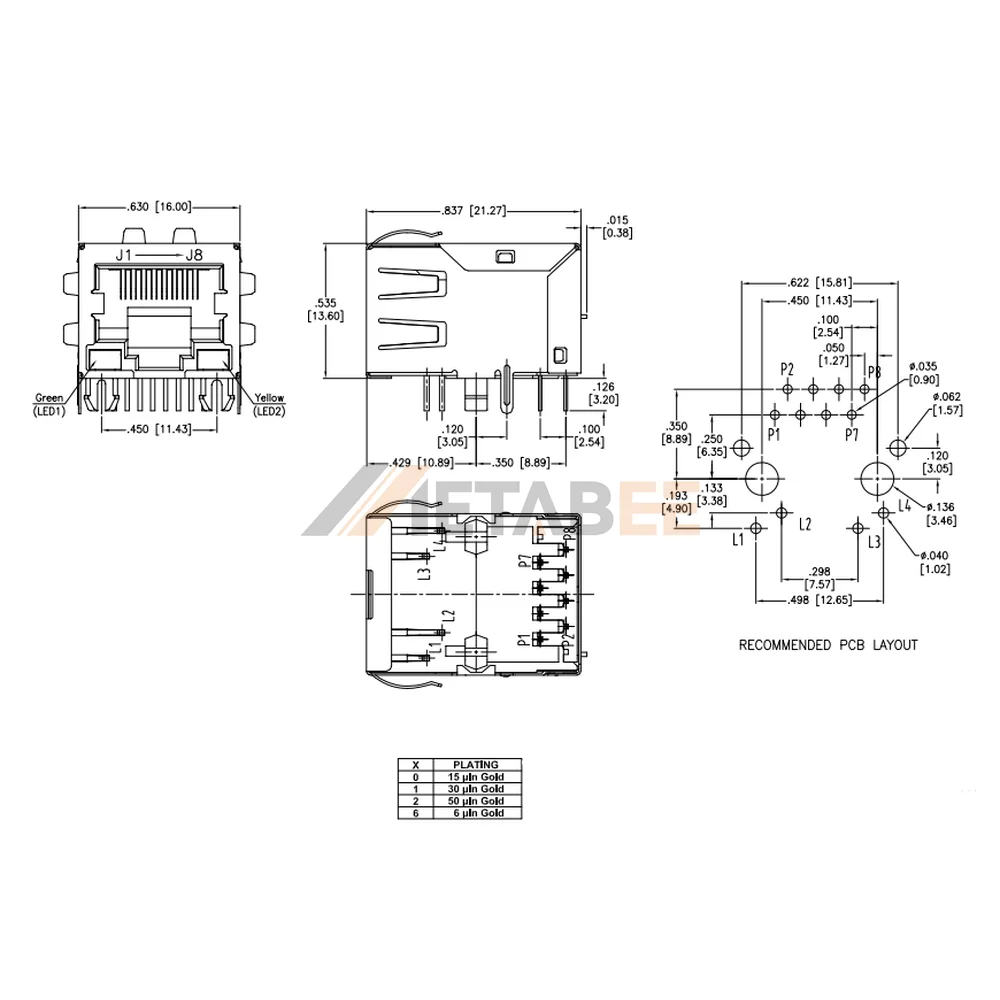

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
