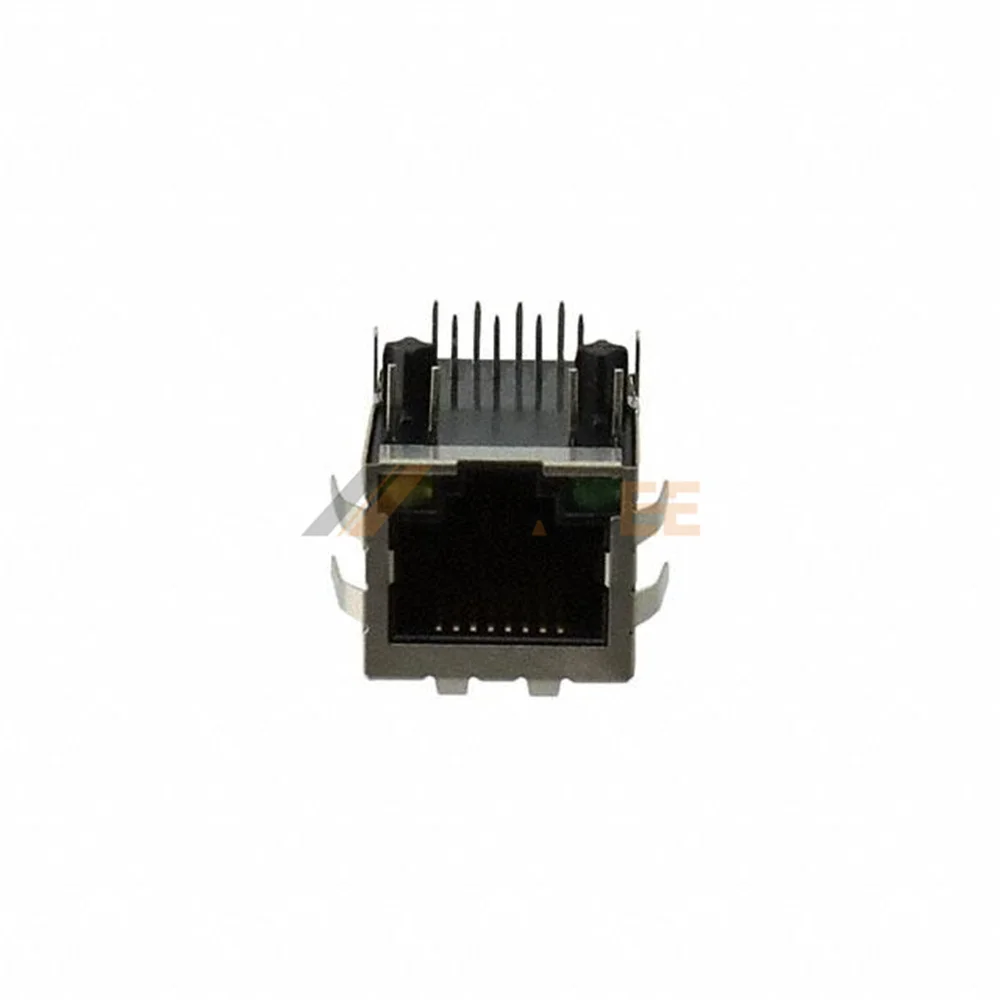

Single Port RJ45 Jack Connector with Integrated Magnetics, 10/100 Base-T, Shielded with EMI, THT, R/A
Introduction:
Designing compact networking hardware is easier when using this single port RJ45 connector with integrated magnetics to handle critical signal isolation. By housing high-quality transformers within a metallic shell, the port protects your internal circuitry from noise and voltage spikes. The nickel-plated brass shield includes EMI fingers to ensure stable data transmission even in crowded electronic environments. On the front, integrated green and yellow LEDs allow for quick visual monitoring of network activity and link speed. Since it features board guides and a right angle profile, the connector stays securely fixed to the PCB while saving vertical space. This reliable 10/100 Base-T component ensures long-lasting electrical performance for a wide range of telecommunication devices.
Key Features
-
Integrated Magnetics: Provides signal filtering and isolation for 10/100Base-T networking.
-
Full EMI Shielding: Blocks external interference using a nickel-plated brass shell.
-
Visual Status Indicators: Green and yellow LEDs show network activity clearly.
-
Right Angle Profile: Optimizes space on compact through hole circuit boards.
-
Board Guide System: Ensures a secure and stable mechanical attachment to PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LH-M5 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
