Single Port RJ45 Female Connector Network Socket, 8P8C, Unshielded, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port RJ45 female connector network socket designed for secure through hole mounting on printed circuit boards. Its construction involves PA46 hi-temp thermoplastic to withstand intense industrial soldering heat without any physical warping. The Gold over Nickel plated copper alloy contacts ensure high conductivity and a standard 1.5A current rating for consistent data flow. By employing a Tab-Up right angle orientation, the component effectively optimizes board space while handling dielectric voltages up to 1000 VAC RMS. Engineers use this unshielded interface for telecommunication equipment and data networking hardware requiring stable 8P8C connectivity across a wide temperature range of -40°C to +85°C.
Key Features
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- PA46 Hi-Temp Housing: Survives intense heat during industrial wave soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- 8P8C Network Interface: Provides standard unshielded modular connectivity for systems.
- Wide Temperature Range: Performs reliably between -40°C and +85°C.

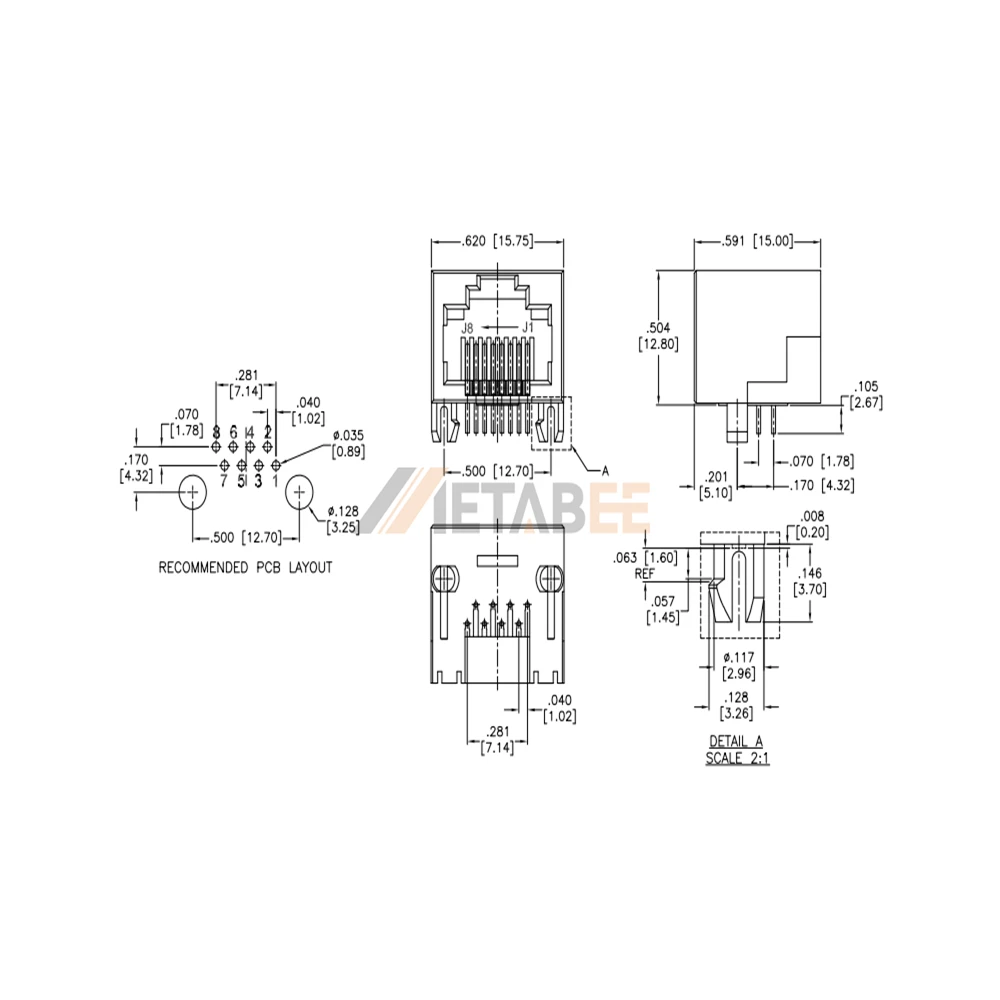

Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC RMS for 1 minute |
Materials and Plating:
| Housing Material: | PA46, Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
