Introduction:
Cost-effective Fast Ethernet connectivity is easily realized through the unshielded single port RJ45 connector with integrated magnetics. A durable black PA66 thermoplastic housing provides robust structural support for standard 100Base-T networks without the need for metal shielding. To guarantee precise and stable printed circuit board mounting, the right-angle module incorporates a practical board guide alongside solder retention features. Visual network status updates are clearly displayed by integrated green and yellow LEDs positioned neatly inside the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ to secure flawless data transmission across 0°C to 70°C environments.
Key Features
- 100 Base-T Network: Supports standard Fast Ethernet connections seamlessly.
- Unshielded UTP Design: Cost-effective PA66 housing optimizes board layouts.
- Enhanced PCB Mounting: Board guide and solder retention ensure stability.
- Integrated Status LEDs: Green and yellow lights display network activity.
- Low Resistance Contacts: Copper alloy strictly maintains <20mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-LH-M204-HT-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Tin plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

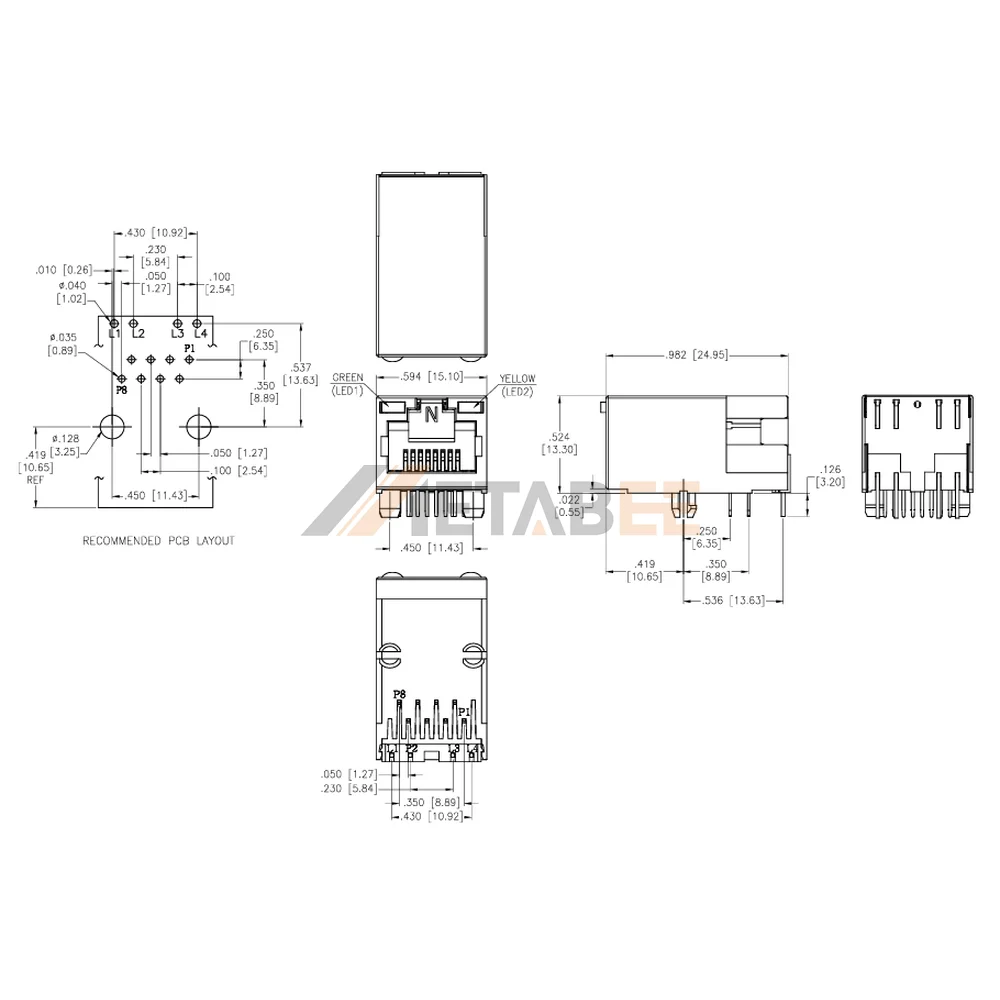

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
