Introduction:
Network stability is significantly enhanced by the Ethernet RJ45 connector magnetics, specifically designed for 10/100 Base-T Fast Ethernet. Nickel-plated copper alloy shielding provides a full enclosure to block electromagnetic interference during data transmission. In commercial environments, the black hi-temp thermoplastic housing maintains its structural integrity while operating from 0°C to 70°C. Automated assembly processes benefit immensely from the surface mount (SMT) design, which includes an integrated board guide and solder retention features for precise positioning. Gold-plated copper alloy contacts strictly maintain resistance below 20mΩ for flawless signal integrity. Finally, the tab-down orientation and absence of LED indicators allow for a streamlined visual profile in high-density layouts.
Key Features
- 10/100 Base-T Performance: Supports reliable Fast Ethernet data transmission speeds.
- Copper Alloy Shielding: Nickel-plated metal housing blocks electromagnetic interference.
- Surface Mount Technology: SMT design simplifies precise automated board assembly.
- Stable PCB Mounting: Board guide ensures accurate component alignment.
- Low Contact Resistance: Gold finish ensures signal integrity under 20mΩ.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FS-M4T-SMT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

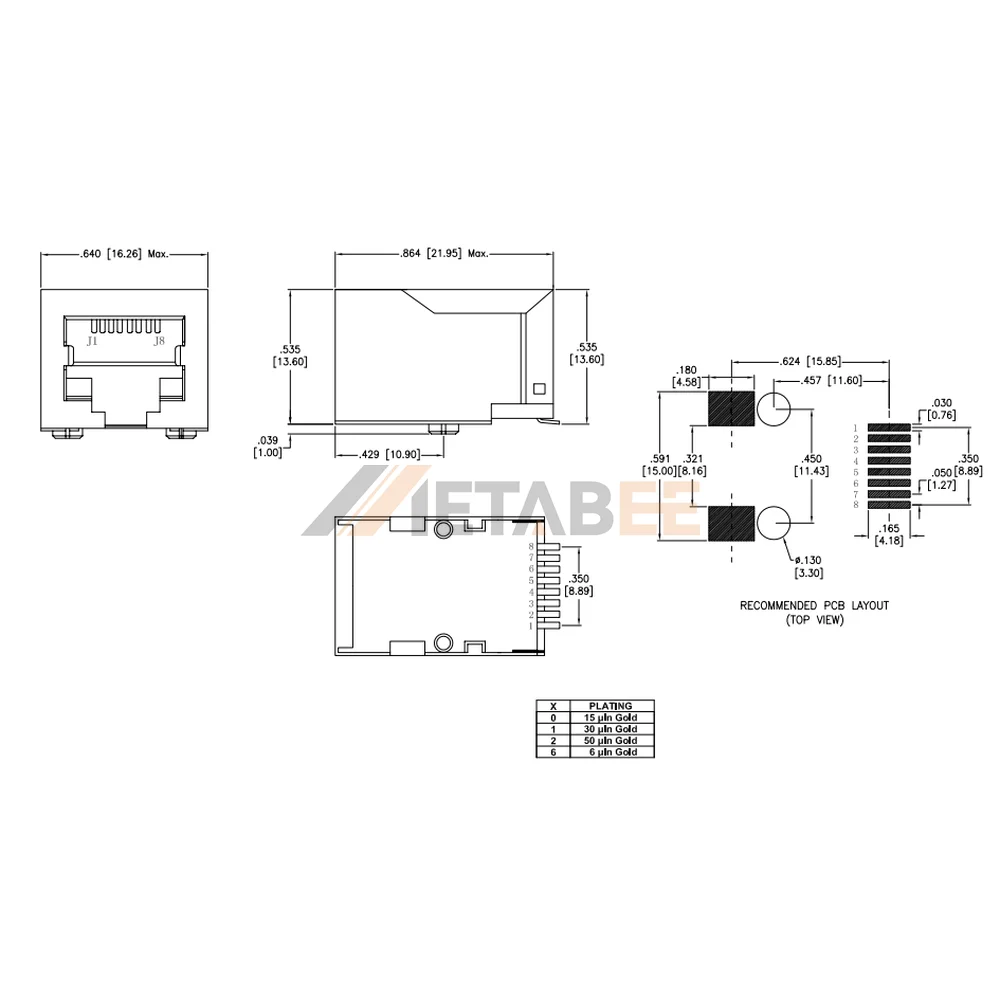

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
