Single Port 8 Pin RJ45 Modular Jack Ethernet Connector, Tab-Up, Through Hole, Vertical, Blank/Green
Introduction:
This is a single port vertical 8 pin modular jack designed for stable top-entry through hole mounting on printed circuit boards. It is manufactured from durable black PA66 thermoplastic to ensure structural integrity and high heat resistance during industrial wave soldering. The 8P8C interface features Phosphor Bronze contacts with a Gold over Nickel finish to provide superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Up configuration and an integrated Green LED, this unit optimizes board surface area while offering immediate link diagnostics. The unshielded design handles operating temperatures from -40°C to +85°C and maintains a high insulation resistance of 1000MΩ Min. Technicians utilize this reliable modular interface for networking hardware and telecommunication systems requiring secure vertical board-to-cable connectivity.
Key Features
- Vertical Mounting Design: Facilitates stable top-entry connectivity on compact PCBs.
- Integrated Status LED: Built-in green light provides immediate link diagnostics.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- PA66 Housing Material: Ensures durable performance during industrial assembly processes.
- High Current Support: Handles up to 1.5A for efficient networking links.
Main Specifications:
General Information:
| Product No.: | MTJ-88DX1-LE-C | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Blank, Right: Green |
Electrical:
| Rated Current: | 1.25A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 DC or AC Peak |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

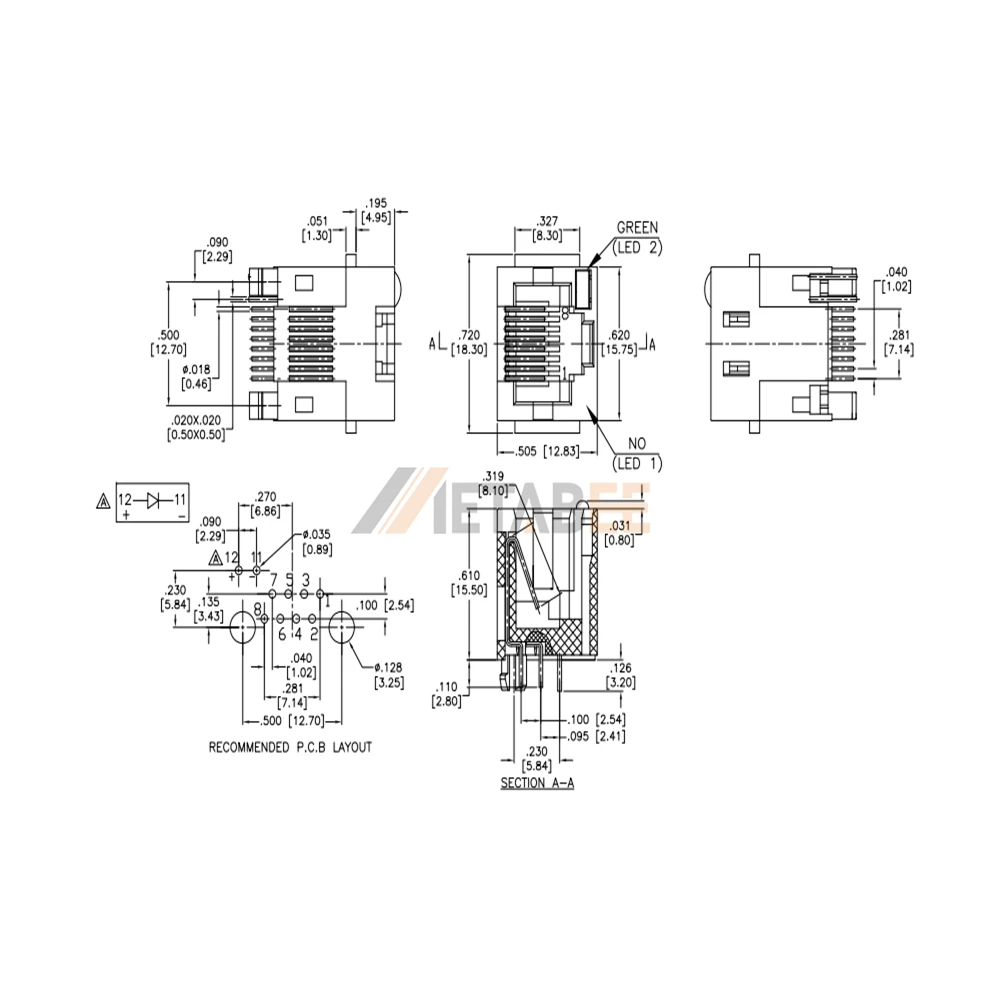

Structure of Modular Jack
