Introduction:
Robust Gigabit network applications rely heavily on premium hardware, and the shielded RJ45 integrated magnetics jack perfectly manages 1G Base-T Ethernet traffic. A durable nickel-plated brass shield completely wraps the black hi-temp thermoplastic insulator to reject electromagnetic interference effectively from 0°C up to an extended 85°C operating temperature. Precise printed circuit board alignment depends on a practical board guide seamlessly integrated into the right-angle, through-hole architecture. Clear visual link tracking utilizes dual green/yellow LEDs positioned flawlessly within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20mΩ to secure long-term signal clarity without degradation.
Key Features
- 1G Base-T Speed: Seamlessly handles high-speed Gigabit Ethernet data transmission.
- Extended Temperature Range: Operates reliably across 0°C to 85°C commercial environments.
- Brass Metal Shielding: Nickel-plated housing completely blocks severe electromagnetic interference.
- Hi-Temp Thermoplastic: Durable black insulator incorporates a practical board guide.
- Dual-Color Status LEDs: Green/yellow lights track exact network activity clearly.
Main Specifications:
General Information:
| Product No.: | MTJ-88BAX1-FS-PG-VL16-M329Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

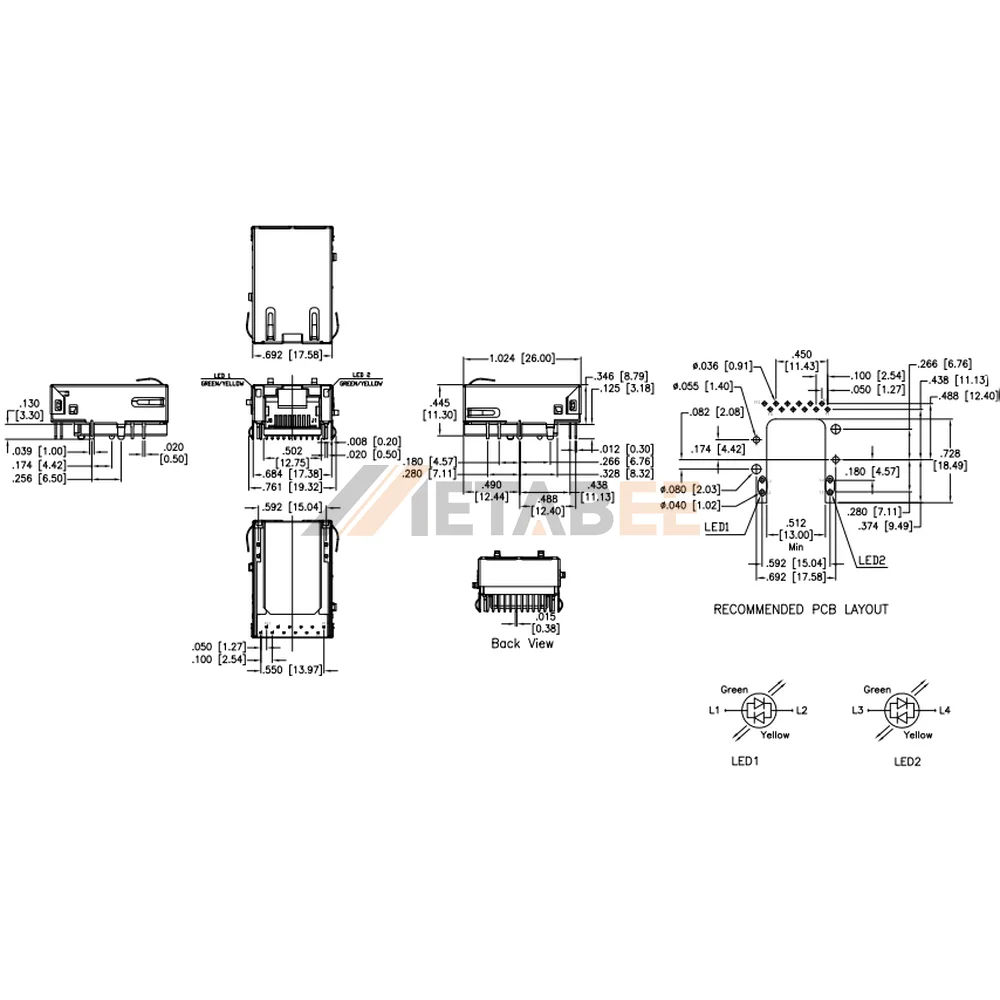

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
