Introduction:
Through-hole termination allows for secure vertical mounting on the PCB, making the RJ45 modular magnetic jack ideal for space-constrained industrial layouts. High-speed 1G Base-T data rates are supported flawlessly across an extreme temperature range of -40°C to 85°C. A nickel-plated brass shield encapsulates the black thermoplastic housing to block electromagnetic interference effectively. Precise mechanical stability depends on the integrated board lock during the soldering process. Visual network status feedback relies on built-in yellow and green LEDs positioned in the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ to secure long-term signal integrity.
Key Features
- 1G Base-T Performance: Enables reliable high-speed Gigabit Ethernet data transmission.
- Vertical THT Mounting: Optimizes board space with secure through-hole termination.
- Industrial Temperature Range: Operates safely between -40°C and 85°C.
- Brass Metal Shielding: Blocks electromagnetic interference for clear signal transmission.
- Integrated Status LEDs: Yellow and green lights track network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-STP-LG-M332C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

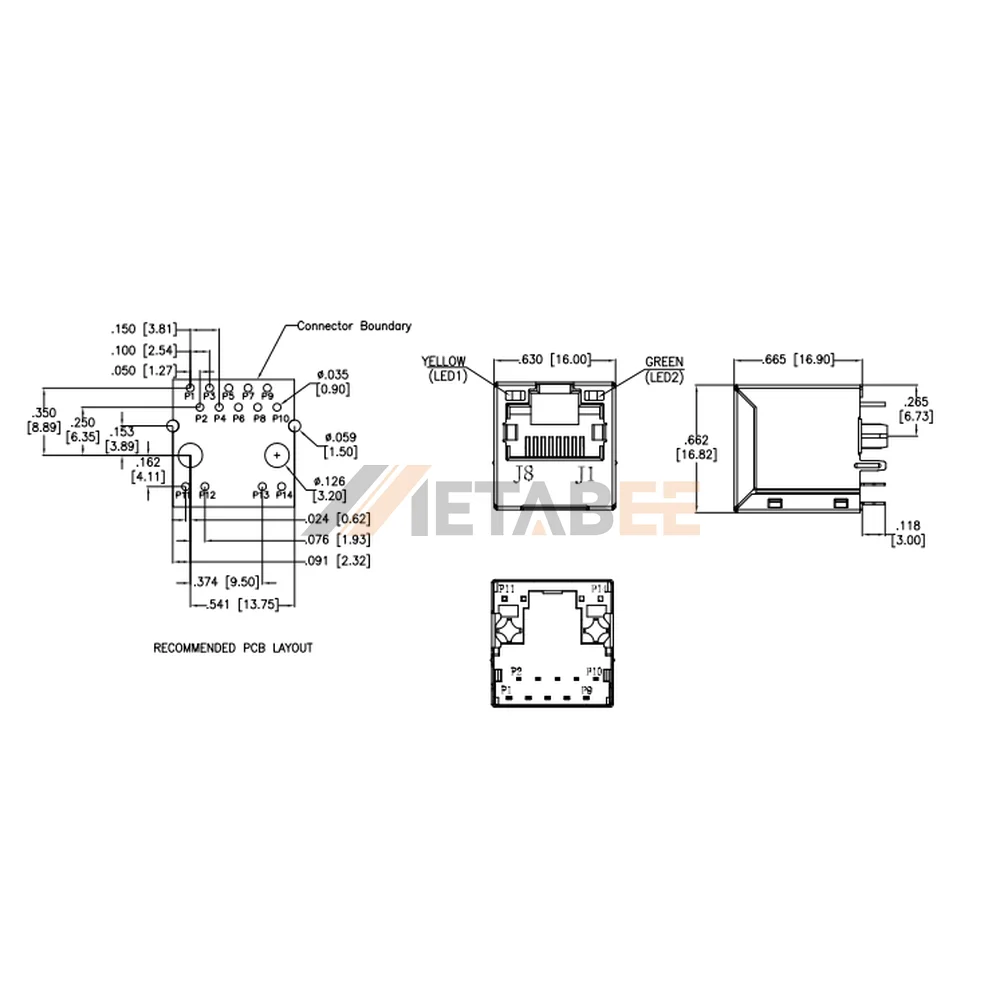

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
