Introduction:
Power and data transmission are combined effectively in the shielded RJ45 PoE magjack, built specifically for 10Base-T networks. A fully nickel-plated brass shield offers essential protection against electromagnetic interference across commercial environments. The right-angle, through-hole module utilizes black thermoplastic insulation with an integrated board lock to guarantee secure printed circuit board mounting. Visual connection status is clearly provided by green and yellow LEDs nestled seamlessly into the tab-up design. Gold-plated copper alloy contacts ensure contact resistance remains below 30mΩ for consistent electrical performance within the 0°C to 70°C operating range.
Key Features
- 10 Base-T PoE: Combines standard power and data transmission securely.
- Brass Metal Shielding: Nickel-plated housing minimizes severe signal interference.
- Thermoplastic Insulation: Durable black housing features a secure board lock.
- Integrated LED Indicators: Green and yellow lights display clear network status.
- Copper Alloy Contacts: Gold plating strictly maintains <30mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88CX1-FSP-PG-LH-M216 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

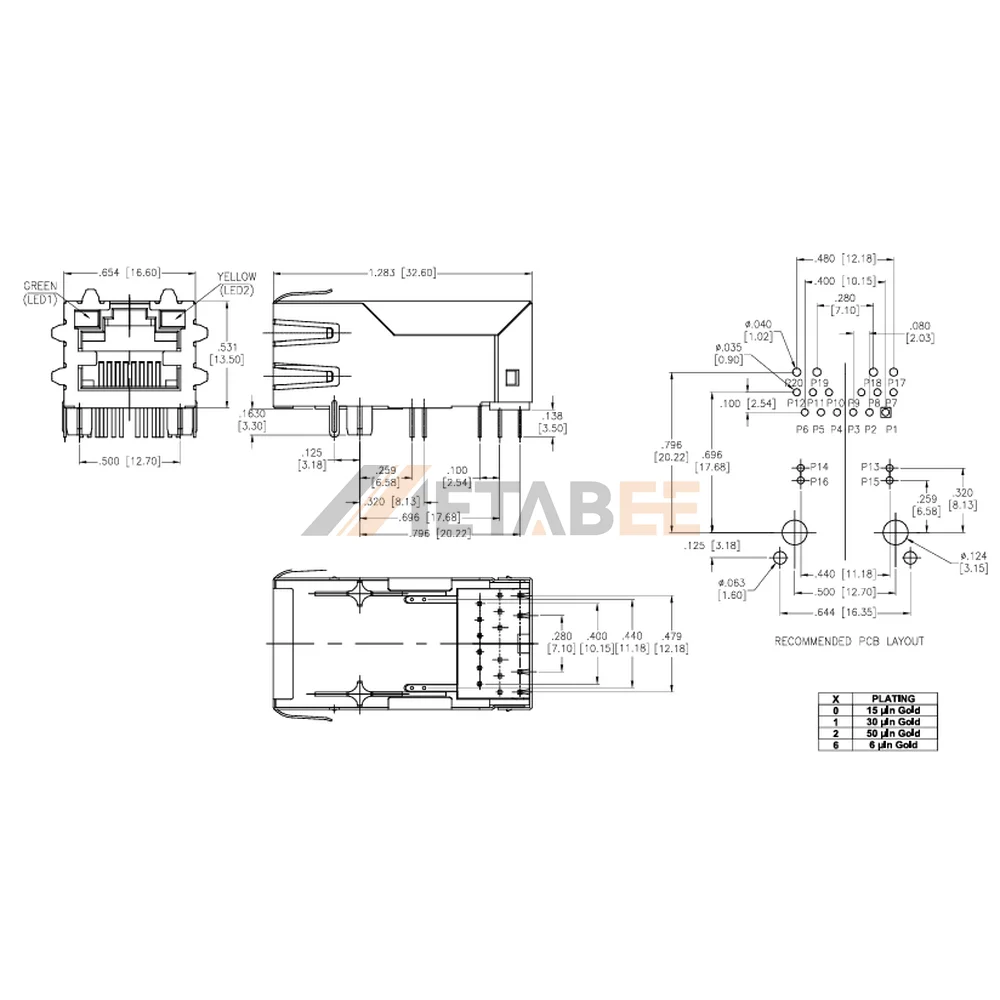

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
