Shielded RJ45 Metal Jack Without LEDs and EMI Fingers, 8P8C, Single Port, Tab-Up, Through Hole, R/A
Introduction:
This is a single port shielded RJ45 jack designed for stable through hole mounting on networking circuit boards. It features a glass reinforced PBT housing in a distinctive Yellow P114C Pantone finish to help technicians identify specific signal ports during complex hardware assembly. The full brass shell with nickel plating acts as a rugged barrier against electromagnetic interference to maintain high data integrity across the 8P8C interface. Utilizing a Tab-Up right angle configuration, the Phosphor Bronze contacts are finished with Gold over Nickel to ensure high conductivity for various 1.5A circuits. The component handles dielectric voltages up to 1500 VAC and provides a superior insulation resistance of 1000MΩ across a wide temperature range of -40°C to +85°C. Technicians utilize this reliable modular interface for telecommunication gear and data networking hardware requiring color-coded shielded connectivity.
Key Features
- Full Metallic Shielding: Copper alloy shell blocks external signal interference.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Glass Reinforced PBT: High-strength housing ensures long-term mechanical durability.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 8P8C Modular Interface: Supports standard unshielded network communication links.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSW | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | PBT, glass reinforced | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

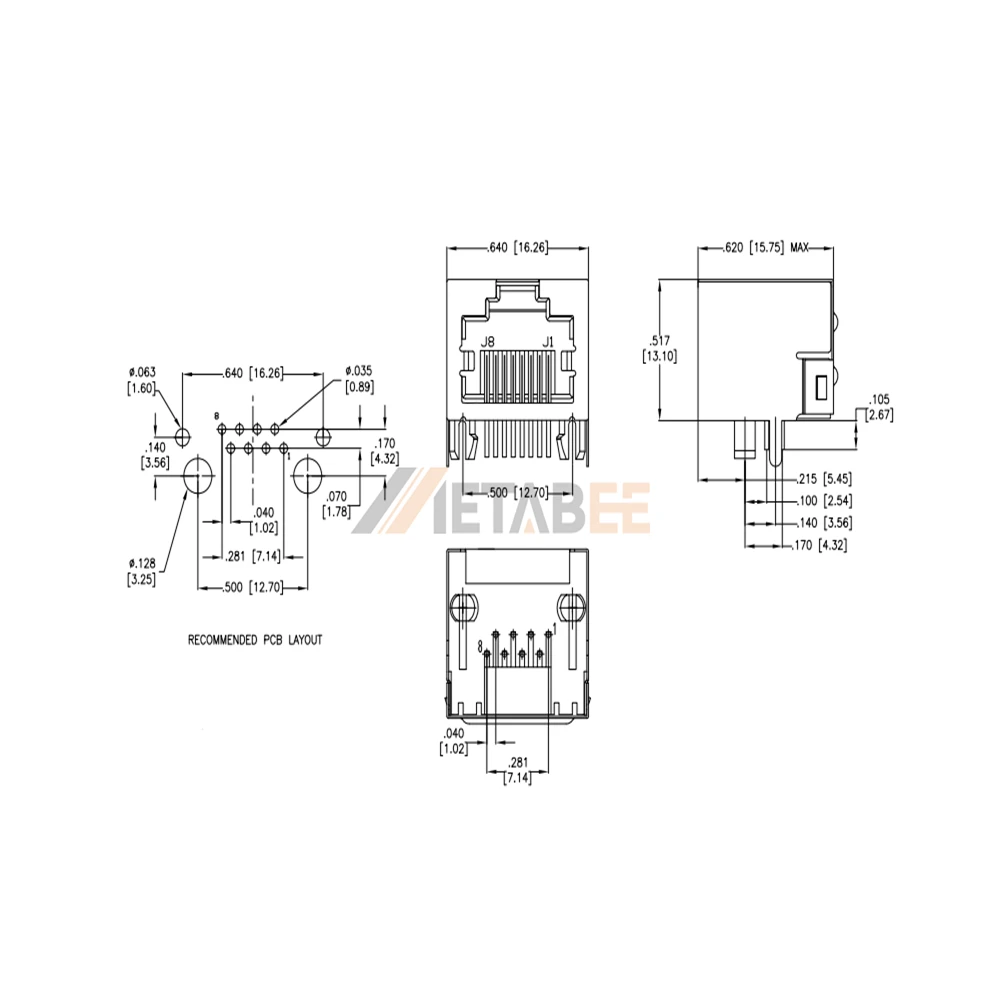

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
