Introduction:
Encasing your network connection in a rugged stainless steel shell, this shielded RJ45 magnetic jack provides superior protection against signal interference. High-quality transformers are built directly into the port to clean up 10/100 BASE-T signals while isolating sensitive internal chips from electrical damage. Designers can rely on the hi-temp thermoplastic housing to withstand intense industrial soldering processes without melting or warping. Monitoring port status at a glance is easy thanks to the integrated green and yellow indicators positioned on the front panel. Because it features a secure board lock mechanism, the right angle connector stays perfectly aligned on the PCB during manufacturing and daily use. Gold over nickel contact finishes ensure a long-lasting, low-resistance electrical link for dependable data flow.
Key Features
- Integrated Magnetics: Filters noise for stable 10/100 BASE-T links.
- Stainless Steel Shielding: Blocks interference to protect your data.
- Dual Status Indicators: Green and yellow LEDs show network activity.
- Secure Board Lock: Ensures a tough mechanical bond to PCB.
- Hi-Temp Thermoplastic: Robust housing survives demanding soldering processes.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSDPGD1LH-M4T-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

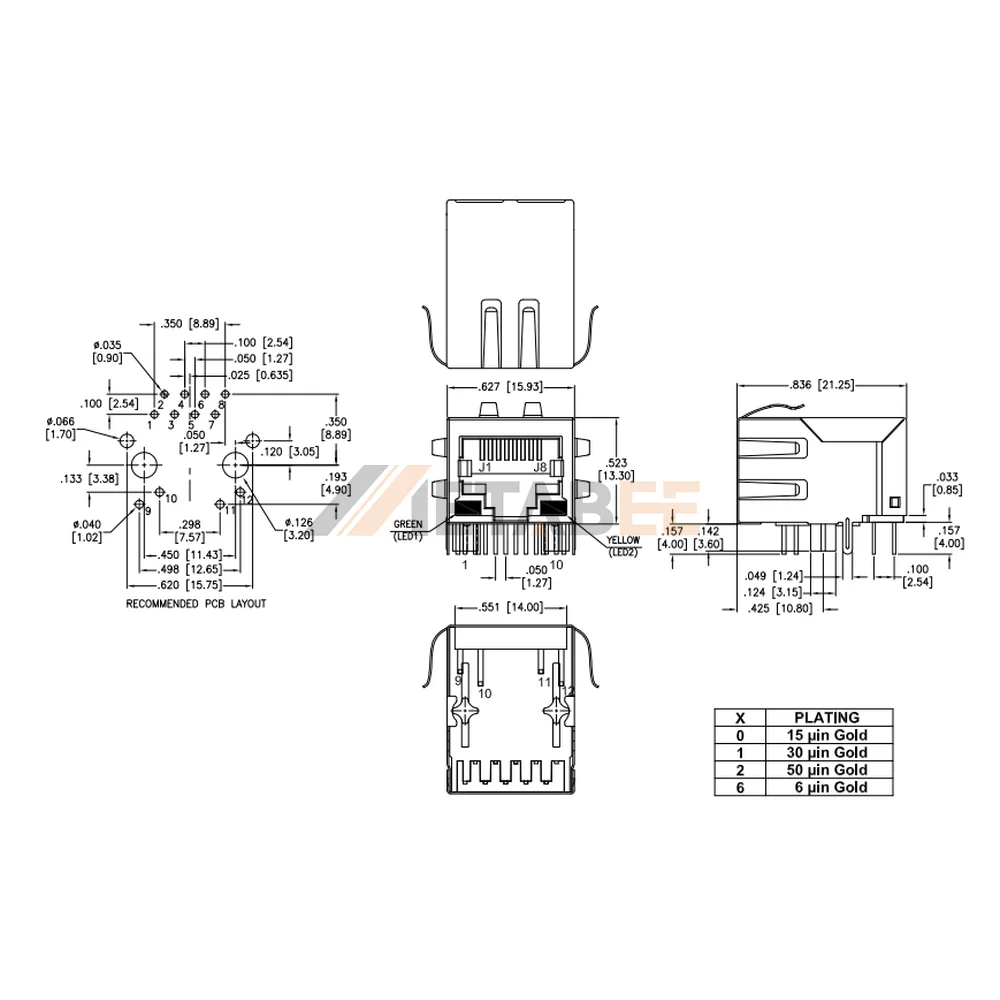

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
