Shielded RJ45 Magjack PoE, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Combining power delivery and data transmission into one interface, our RJ45 MagJack PoE simplifies complex industrial networking designs. Internal magnetic components handle 10/100 Base-T filtering while providing essential electrical isolation to protect sensitive chips from voltage spikes. A nickel-plated brass shell with EMI fingers blocks outside noise to ensure a clear and steady connection in crowded electronic environments. Rugged PA66 material allows the connector to operate reliably in extreme environments ranging from -40°C to 85°C. Monitoring port activity is easy thanks to the built-in yellow and green LEDs located on the front panel. The right angle through hole design provides a strong mechanical bond to the circuit board while optimizing vertical space.
Key Features
- PoE Integration: Handles power and data in a single port.
- Full EMI Shielding: Blocks interference using a nickel-plated shell.
- Industrial Temp Range: Works reliably from -40°C to 85°C.
- Status Indicator LEDs: Provides instant visual feedback for connectivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LG-M48 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Board Guide |
Environmental:
| Operating Temperature: | -45°C~85°C | |
| Flammability Rating: | UL 94 V-0 |

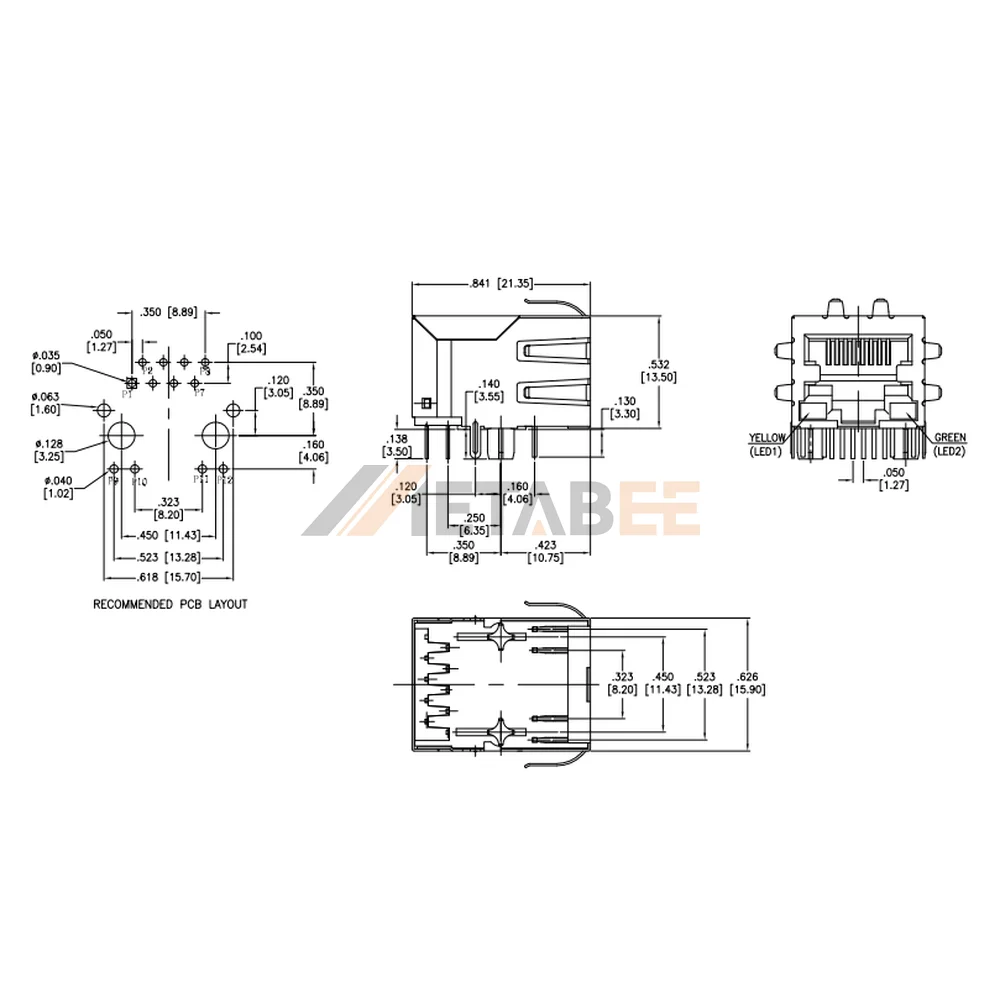

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
