Introduction:

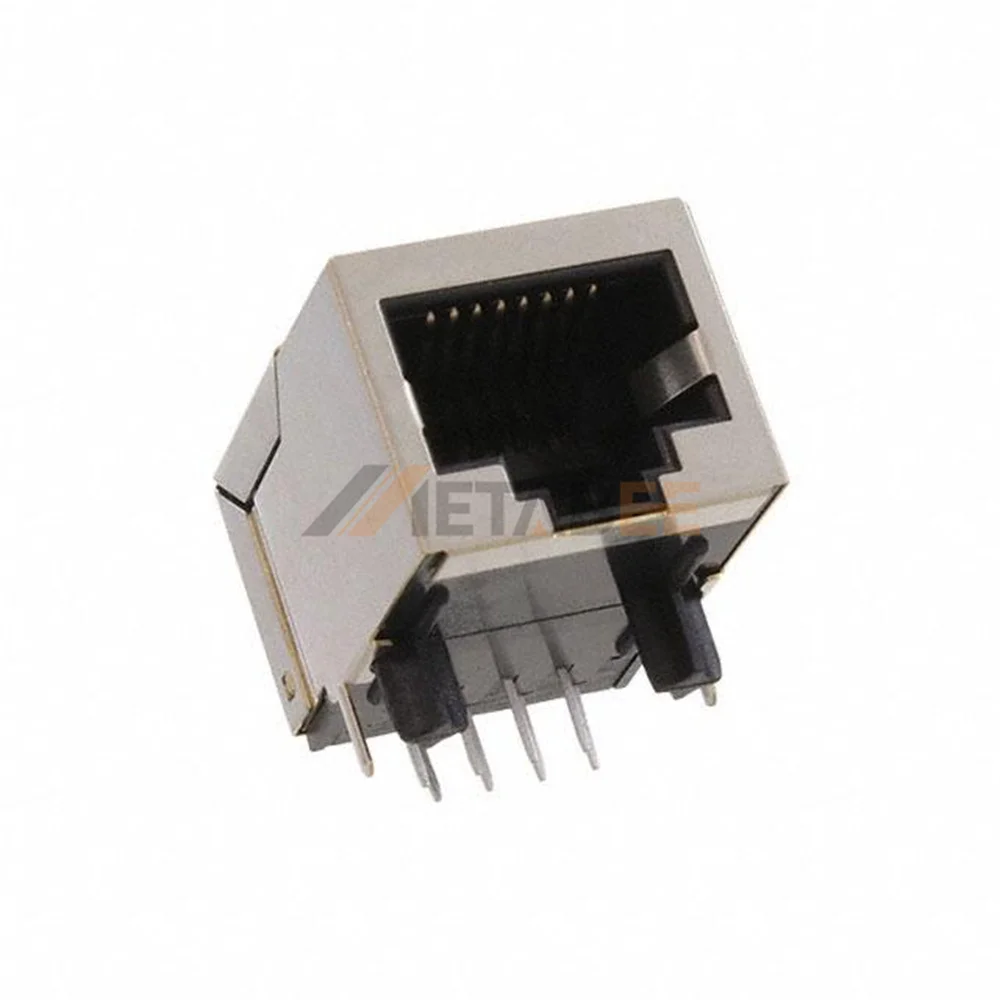

This shielded RJ45 jack with magnetics simplifies circuit design by integrating high-quality transformers directly into the port. It handles essential 10/100 Base-T signal filtering and provides crucial electrical isolation to protect sensitive internal hardware. The nickel-plated brass shell acts as a rugged shield against electromagnetic interference in noisy industrial environments. Because this model lacks built-in LEDs, it offers a clean appearance for equipment that uses separate status indicators. Its right angle through hole design ensures a strong mechanical bond while operating reliably from -40°C up to 85°C. Gold over nickel contacts maintain high conductivity and oxidation resistance for long-term data stability.
Key Features
- Integrated Magnetics: Provides 10/100 Base-T signal filtering and isolation.
- Full EMI Shielding: Blocks interference using a metallic brass shell.
- Industrial Temperature Range: Operates reliably from -40°C up to 85°C.
- Right Angle Profile: Optimizes space on compact networking boards.
- No LED Configuration: Offers a clean look for custom interfaces.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
