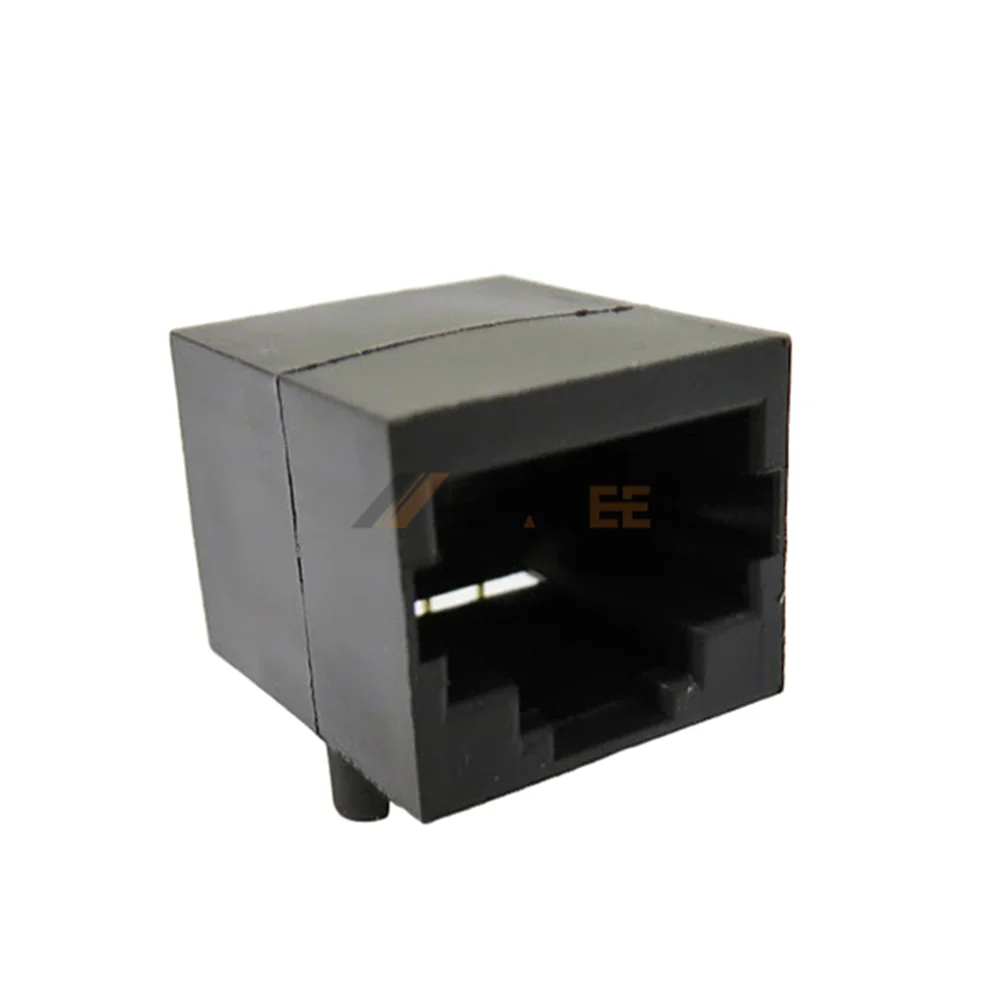

Unshielded RJ45 Jack Through Hole Connector, 8P8C, 1 Port, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a single port unshielded RJ45 jack through hole connector designed for stable board-level mounting in various networking systems. It is constructed with a durable black PBT insulator that ensures high thermal stability and maintains a minimum insulation resistance of 500MΩ. The Phosphor Bronze contacts are finished with Gold over Nickel to provide excellent conductivity and support a consistent 1.5A current rating. Utilizing a Tab-Down right angle configuration, this 8P8C modular interface optimizes vertical board space while effectively handling dielectric voltages up to 1000V. Technicians utilize this reliable component for standard telecommunication equipment and office networking hardware where external shielding is not required.
Key Features
- 8P8C Unshielded Interface: Provides standard modular connectivity for networking hardware.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Tab-Down Configuration: Optimizes vertical space for specialized board layouts.
- Durable PBT Housing: Maintains structural integrity within -40 to +85°C.
- High Current Rating: Supports 1.5A for stable and efficient networking links.
Main Specifications:
General Information:
| Product No.: | MTJ-889X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 25mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
