Shielded RJ45 Female Connector without LEDs, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port shielded RJ45 female connector specifically designed for reliable through hole mounting on networking circuit boards. A robust nickel-plated brass shell encases the unit to provide a full EMI shield for superior signal protection in busy electronic areas. The housing consists of hi-temp thermoplastic that withstands intense industrial wave soldering processes without physical deformation. Premium Phosphor Bronze contacts with Gold over Nickel plating support a consistent 1.5A current rating for various data systems. Utilizing a Tab-Up right angle configuration, the component optimizes PCB space while ensuring a high insulation resistance of 1000MΩ Min. Technicians rely on this interface for telecommunication devices and industrial networking hardware needing durable shielded connectivity.
Key Features
- Full EMI Shielding: Nickel-plated brass shell protects signals from interference.
- Hi-Temp Material: Housing survives intense heat during wave soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-PG2T-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

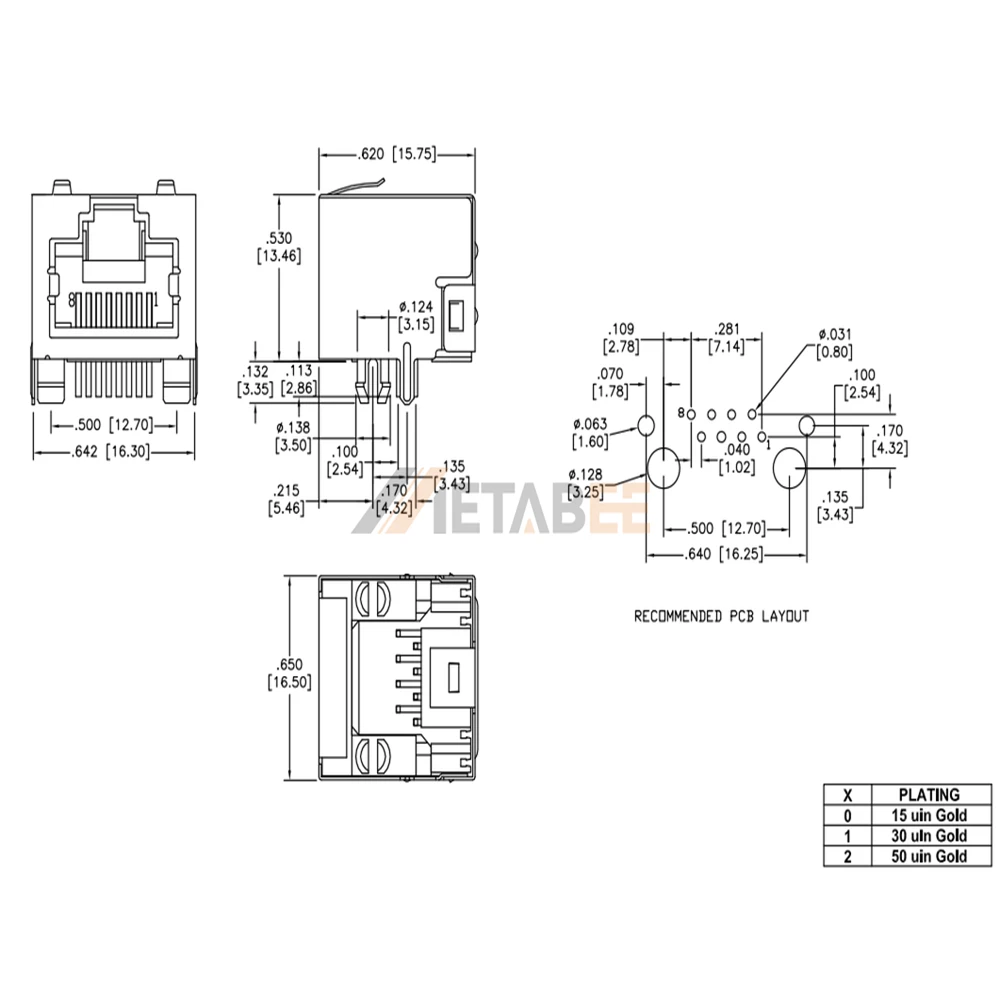

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
