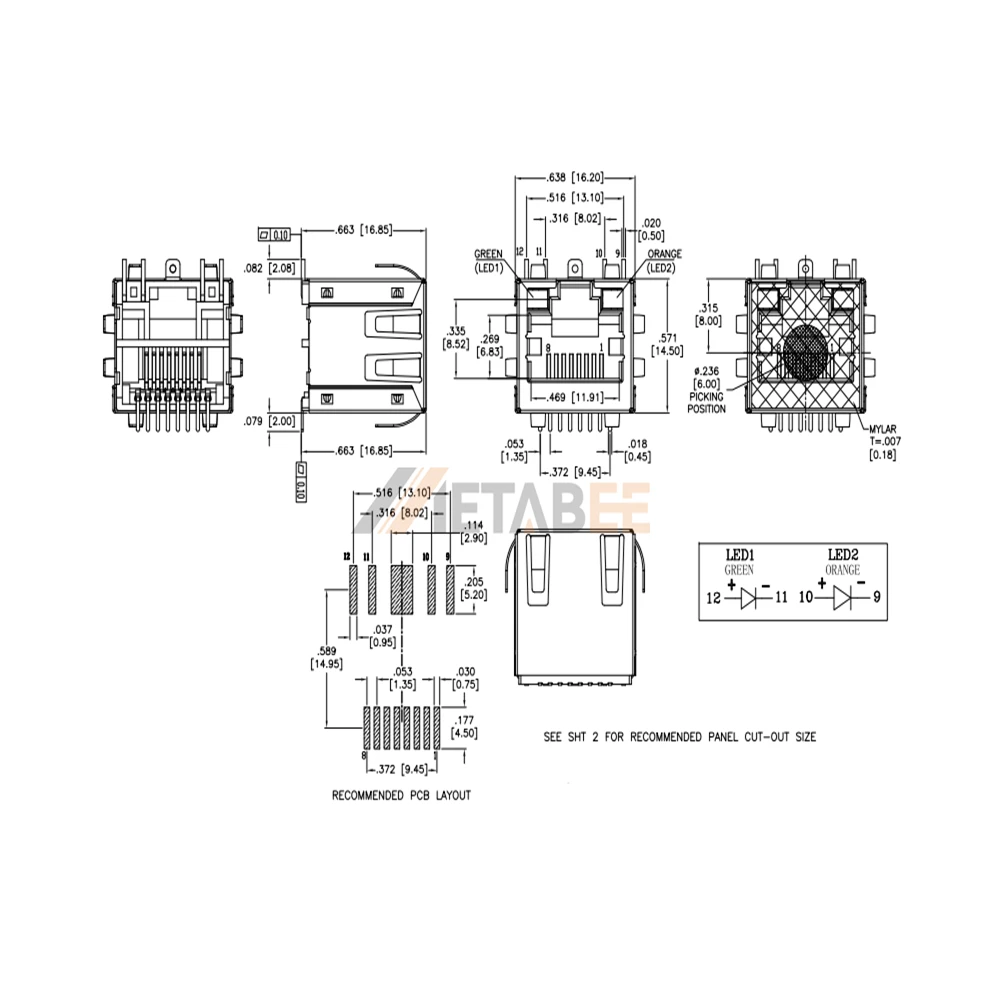

Shielded RJ45 Female Connector with LED Indicator, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, Green/Orange
Introduction:
This is a single port shielded rj45 female connector with led designed for stable right angle through hole mounting on networking circuit boards. It features a full Phosphor Bronze shield that provides a robust barrier against electromagnetic interference to safeguard signal integrity across the 8P8C interface. The housing is made of black hi-temp thermoplastic to survive intense industrial wave soldering without any physical deformation. Utilizing a Tab-Up configuration and integrated Green and Orange indicators, this component provides immediate link diagnostics while supporting a consistent 1.5A current rating. Technicians utilize this reliable interface for telecommunication gear and data networking hardware requiring secure shielded connectivity across a wide industrial temperature range.
Key Features
- Full EMI Shielding: Phosphor Bronze shell blocks external signal interference.
- Integrated Link LEDs: Green-Orange lights show connectivity status instantly.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Robust housing survives intense industrial soldering processes.
Main Specifications:
General Information:
| Product No.: | MTJ-88HAX1-FS-PG-L5 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Shielded | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze, tin plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
