Introduction:
Supporting high-speed 2.5G Base-T networking, this shielded rj45 connector features integrated magnetics for superior signal filtering. The single port 8P8C design includes a brass nickel-plated shell with EMI fingers to ensure reliable contact with the chassis panel. Engineers utilize the through-hole right-angle mounting to save space while maintaining mechanical stability on the PCB. Because it utilizes thermoplastic insulation and gold-plated phosphor bronze contacts, it offers long-term durability and resistance to oxidation. Integrated green and yellow LEDs provide instant status feedback for complex systems. This tab-down modular jack handles up to 1.5A, making it a robust choice for industrial telecommunication hardware.
Key Features
- 2.5G Base-T Performance: Supports high-speed data transfer up to 2.5 Gbps.
- Integrated Magnetics: Built-in filtering improves signal integrity for stable networking.
- EMI Shielding: Full shield with fingers blocks external electromagnetic interference.
- Status LEDs: Green and yellow indicators provide instant visual feedback.
- Tab-Down Orientation: Bottom-latch design fits specific mechanical chassis requirements perfectly.
Main Specifications:
General Information:
| Product No.: | MTJ-88NX1-FS-PG-L38-M369C | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 2.5G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green/Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

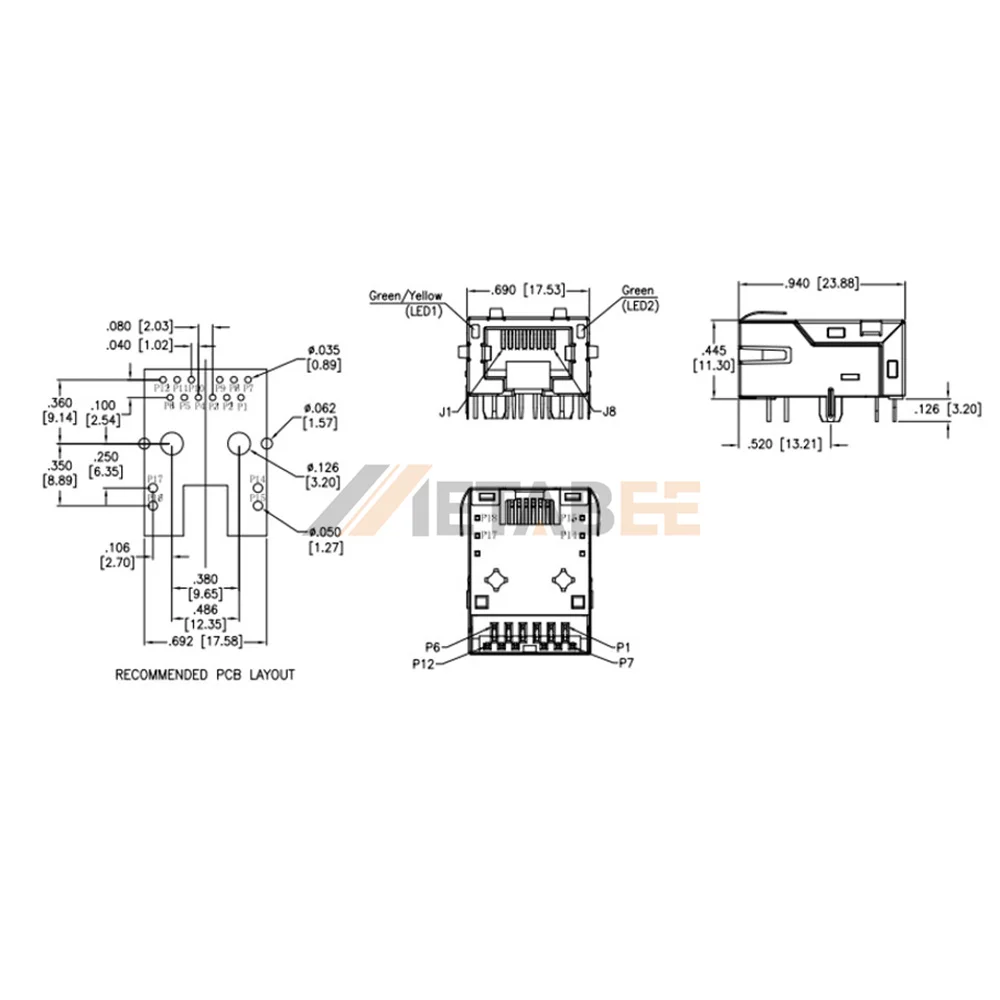

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
