Introduction:

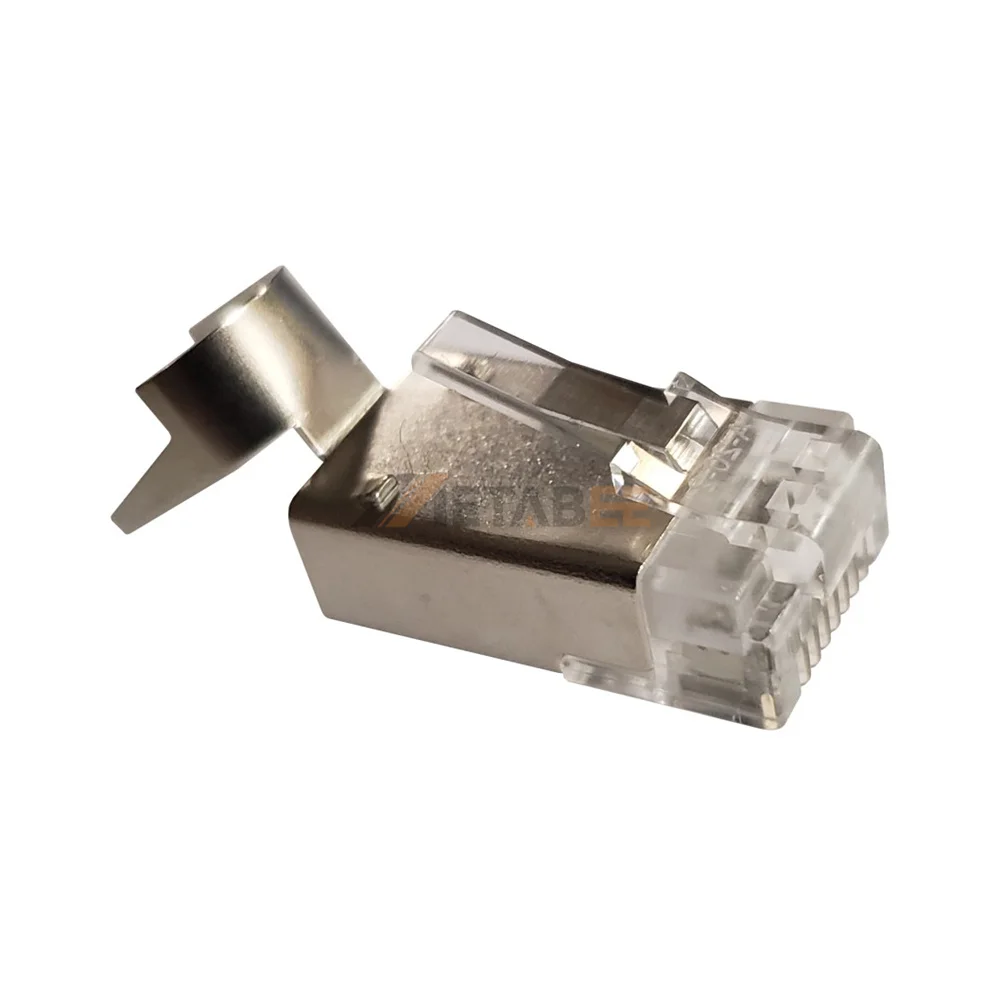

Providing essential protection against electromagnetic interference, this RJ45 Cat6 modular plug features a robust brass shell for signal integrity. It is specifically built to accommodate thick 21-23AWG flat solid cables used in high-bandwidth applications. An integrated external strain relief mechanism enhances mechanical stability by preventing tension on the termination point during use. Because it meets Cat6 standards, this connector supports gigabit ethernet transmission effectively within various networking environments. Technical professionals utilize the 3-prong contacts to pierce solid copper conductors for a lasting electrical bond. The clear PC housing within the metal shell allows for precise wire alignment verification before crimping.
Key Features
- Shielded Brass Shell: Prevents electromagnetic interference for high-speed data integrity.
- Cat6 Performance: Supports gigabit ethernet and high-bandwidth networking applications.
- External Strain Relief: Protects cable terminations from excessive mechanical tension.
- 21-23AWG Support: Accommodates thicker solid copper conductors for stable connectivity.
- Flat Solid Compatibility: Optimized for secure termination on flat-style solid cables.
Main Specifications:
General Information:
| Product No.: | MTP-88-X-S-C6-A | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat6 | |
| Wire Type: | Solid | |
| Cable Type: | Flat | |
| Wire range: | 21-23 AWG | |
| OD of the Individual Cable Core: | 1.14∼1.24 mm | |
| Body Length: | 22.44 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
