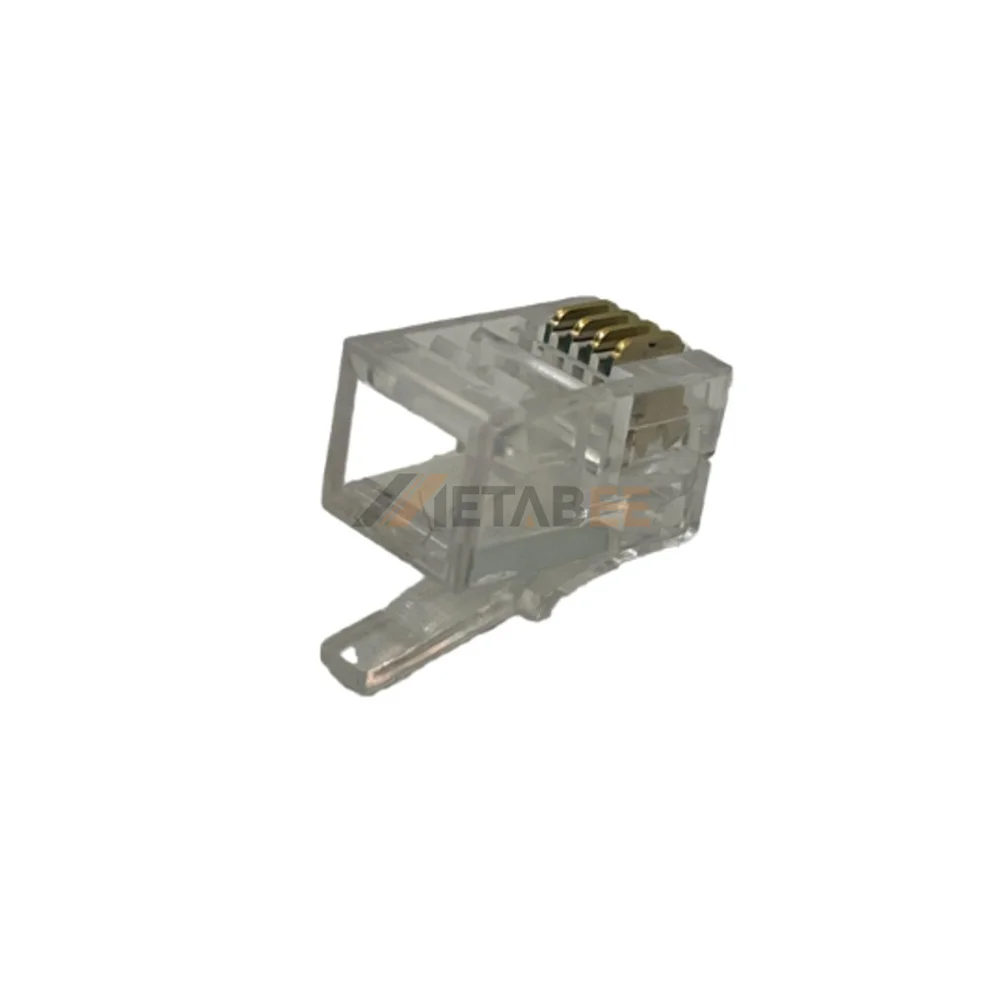

RJ9 4P4C Phone Connector for Stranded Wire, Flat Cable, Cat3, Unshielded
Introduction:
Maintaining a stable connection for telephone handsets is simple with this RJ9 4P4C connector. It is specifically designed to work with stranded flat cables typically used in coiled handset cords. Because it meets Cat3 performance levels, the plug ensures clear voice transmission for standard telecommunication systems. The clear polycarbonate housing allows installers to verify pin alignment before the crimping step is finished. Phosphor bronze contacts with gold over nickel plating provide lasting conductivity and oxidation resistance. Many technicians rely on this unshielded modular component for reliable voice-grade links. This connector handles 1000 VAC for one minute to ensure electrical safety during operation.
Key Features
- 4P4C Configuration: Standard four-pin connectivity for telephone handsets.
- Flat Cable Support: Optimized for secure termination on flat-style wires.
- Cat3 Performance: Delivers reliable signal for voice-grade applications.
- Phosphor Bronze Contacts: Ensures superior conductivity and oxidation resistance.
- Polycarbonate Shell: Features clear housing for easy wire alignment.
Main Specifications:
General Information:
| Product No.: | MTP-44-X | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ9 Plug | |
| Number of Positions/Contacts: | 4P4C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat3 | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |
| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
