6P6C RJ12 Modular Plug for Stranded Wire, Round Cable, Cat3, Unshielded
Introduction:
Integrating voice and data connections is efficient with this RJ12 modular plug designed for 6P6C telecommunication systems. This unshielded connector specifically targets round stranded cables commonly used in telephone patch cords. Because it adheres to Cat3 specifications, the plug maintains stable signal paths for voice-grade networking. Its clear polycarbonate housing allows installers to confirm wire placement before the final crimping stage. Copper alloy contacts with gold over nickel plating ensure lasting conductivity and corrosion resistance. Many technicians rely on this component for its high insulation resistance and dielectric strength in various modular environments.
Key Features
- 6P6C Configuration: Provides six-position connectivity for telephone systems.
- Round Stranded Support: Specifically designed for secure termination on round cables.
- Unshielded Cat3 Rating: Delivers reliable performance for voice-grade applications.
- Polycarbonate Shell: Features clear housing for easy internal wire alignment.
- Gold Over Nickel Finish: Ensures superior conductivity for copper alloy contacts.
Main Specifications:
General Information:
| Product No.: | MTPR-66-X | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ11 Plug | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | CAT3 | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |

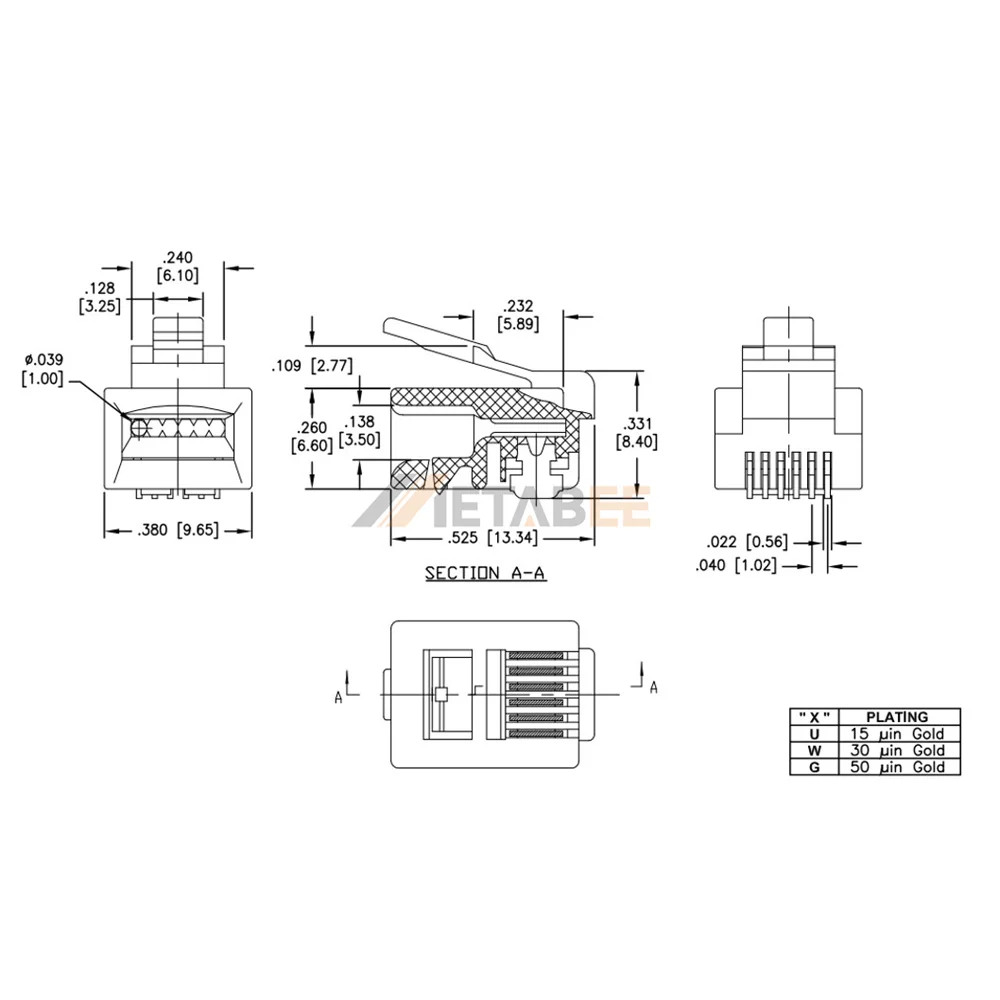

| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
