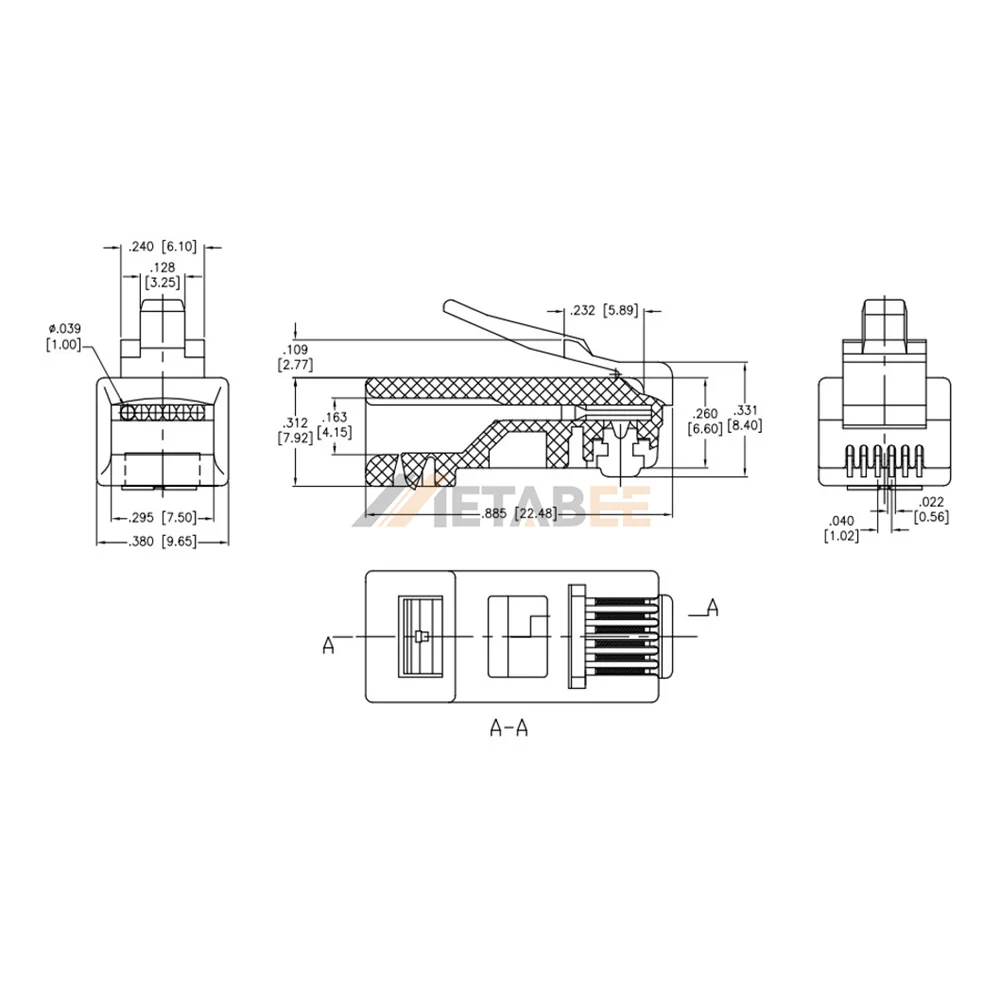

RJ12 6P6C Modular Telephone Plug for Stranded Wire, Round Cable, Unshielded
Introduction:
This 6p6c modular plug provides an efficient connectivity solution for voice and telephone networking. It specifically accepts 24-26AWG round stranded cables used in standard residential or office communication links. Because the housing is crafted from clear PC material, installers can verify the internal wire alignment during the assembly process. The unshielded RJ12 design allows for straightforward cable mount termination without the bulk of metallic shells. Gold over nickel plating on the copper alloy contacts ensures lasting signal conductivity and resistance against oxidation. Many technicians choose this reliable component to maintain stable low-frequency data transmission in modular phone systems.
Key Features
- 6P6C RJ12 Configuration: Provides standard six-pin connectivity for telephone systems.
- Round Stranded Support: Ensures secure termination on cylindrical cable profiles.
- 24-26AWG Compatibility: Fits common copper wire gauges for telecommunication links.
- Gold-Over-Nickel Contacts: Delivers superior conductivity and oxidation resistance.
- Clear PC Housing: Facilitates quick visual verification of internal wiring.
Main Specifications:
General Information:
| Product No.: | MTPR-66-X-EB2 | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ12 Plug | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | N/A | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | 24-26AWG | |
| OD of the Individual Cable Core: | 0.89∼0.99mm | |
| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 VAC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
