Introduction:
This RJ45 Cat5e connector provides a reliable solution for high-speed data transmission in shielded networking environments. It is engineered with a robust brass shell to offer effective protection against electromagnetic interference. Because it adheres to Cat5e standards, the plug supports gigabit Ethernet speeds while maintaining signal integrity. The 8P8C configuration is specifically designed for solid round cables, ensuring a secure mechanical bond for permanent installations. Its copper alloy contacts feature a gold over nickel finish to prevent oxidation and ensure long-term electrical conductivity. Technical professionals value its durable PC housing and consistent performance across a wide operating temperature range from -25°C to +55°C.
Key Features
- Cat5e Performance: Supports fast gigabit ethernet data transmission.
- EMI Shielding: Brass shell protects signals from electromagnetic interference.
- Solid Cable Compatibility: Designed for secure termination on solid round cables.
- Gold Plated Contacts: Ensures superior conductivity and oxidation resistance.
- Temperature Resilience: Operates reliably from -25°C to +55°C.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-S-EMI | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ45 Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Shielded | |
| Performance Category: | Cat5e | |
| Wire Type: | Solid | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |

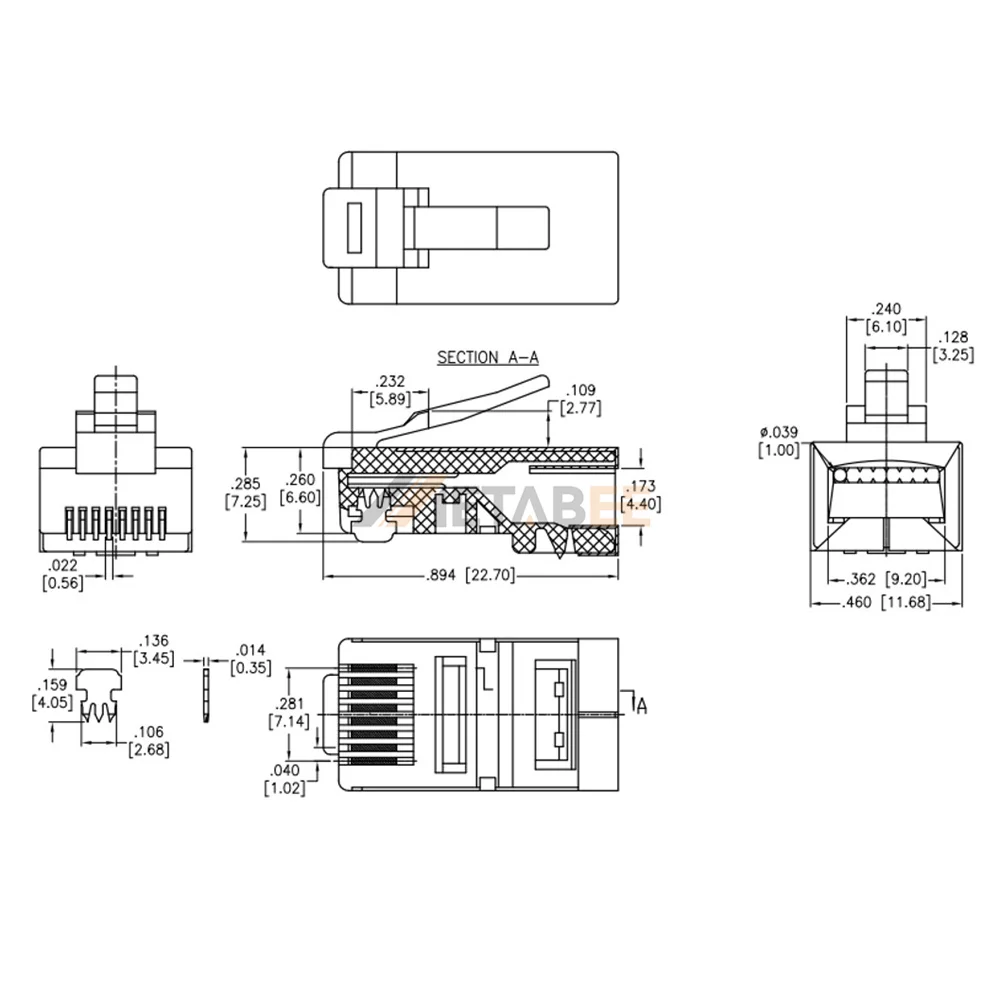

| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 VAC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 500 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
