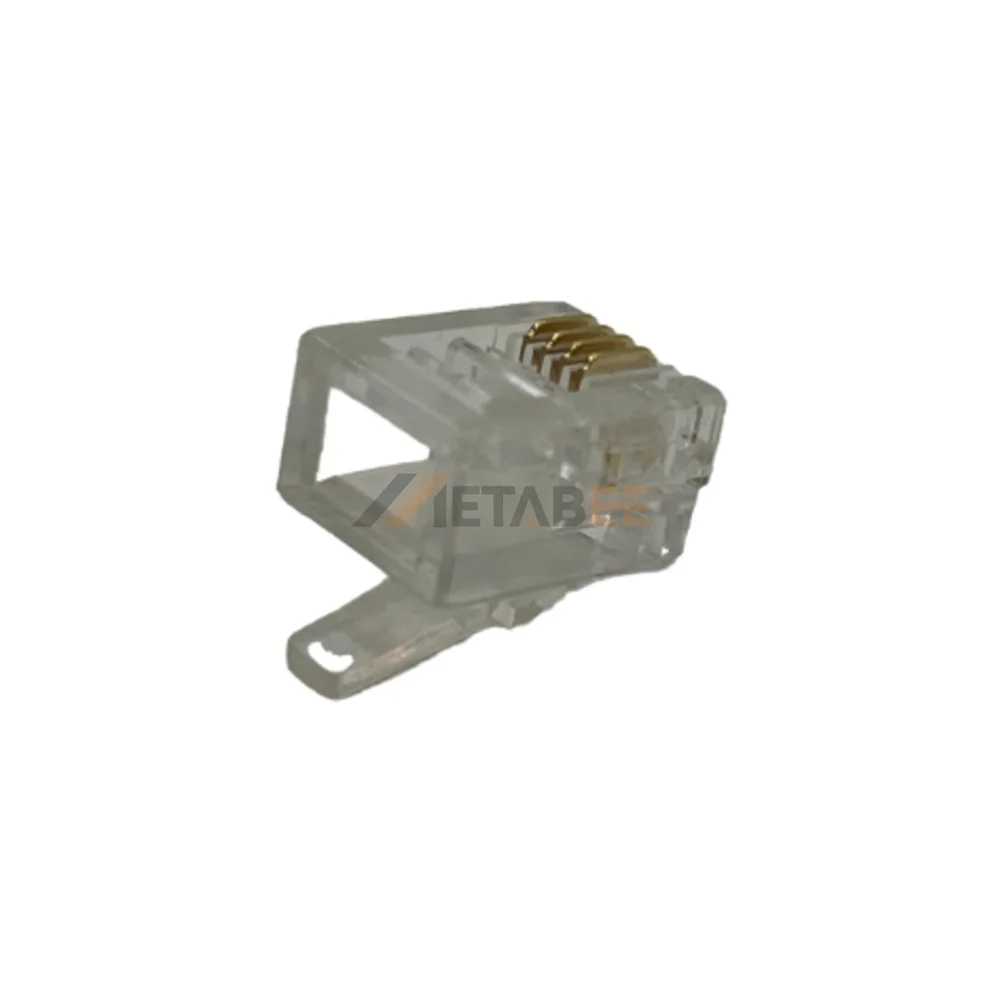

RJ11 6P4C Modular Plug Connector for Stranded Wire, Flat Cable, Cat3, Unshielded
Introduction:
Connecting residential telephone systems is efficient with this RJ11 6p4c connector designed for voice-grade networking. This modular plug specifically accepts flat stranded cables, ensuring a secure electrical link for standard phone lines. Because it adheres to Cat3 specifications, the component maintains stable signal paths for low-speed communication. Its clear polycarbonate housing allows technicians to verify wire alignment during the termination process. Copper alloy contacts with a gold over nickel finish provide lasting conductivity and resistance to oxidation. Many professionals rely on its high insulation resistance of 1000 Mohms for durable telecommunication setups.
Key Features
- 6P4C RJ11 Design: Provides standard four-pin connectivity for telephone systems.
- Flat Cable Support: Specifically engineered for secure termination on flat wires.
- Cat3 Performance: Delivers reliable signal for voice-grade networking applications.
- Gold Plated Contacts: Ensures superior conductivity for Copper Alloy terminals.
- Clear Polycarbonate Shell: Facilitates easy visual inspection of internal wiring.
Main Specifications:
General Information:
| Product No.: | MTP-64-X | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ11 Plug | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat3 | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |
| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
