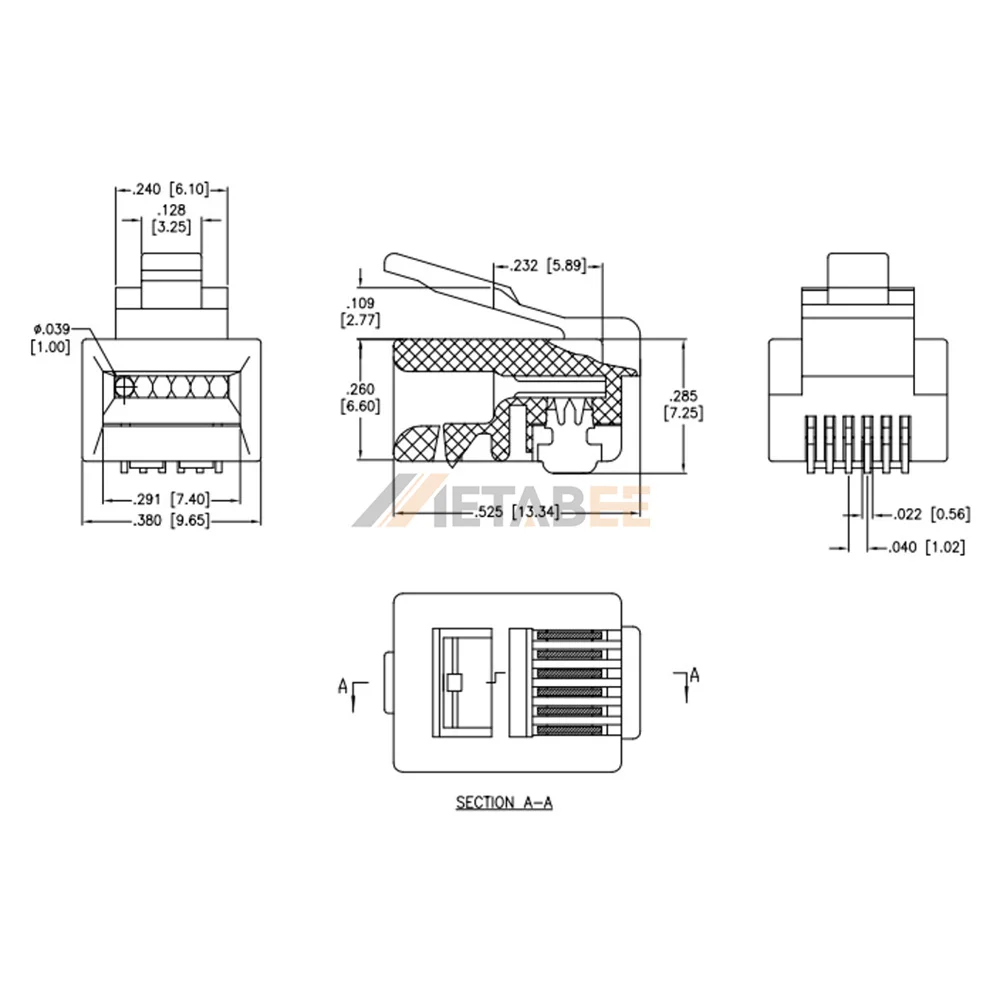

RJ12 Male Connector Plug 6P6C for Solid Wire, Flat Cable, Unshielded, 24-26AWG
Introduction:
Terminating flat cabling systems is simplified with this RJ12 male connector. This 6P6C plug targets 24-26AWG solid wires used in standard telephone networks. Because it adheres to Cat3 standards, the connector provides stable performance for voice-grade transmissions. Its clear polycarbonate housing ensures that technicians can verify pin contact before the assembly is complete. Copper alloy pins with gold over nickel plating offer lasting conductivity and resistance to oxidation. Many professionals depend on this unshielded modular component for its straightforward installation and high insulation resistance.
Key Features
- 6P6C RJ12 Configuration: Provides six-pin connectivity for standard telephone systems.
- Solid Wire Compatibility: Engineered specifically for secure 24-26AWG termination.
- Flat Cable Support: Ensures a stable fit for flat-profile wires.
- Cat3 Performance: Delivers reliable signal for voice-grade communication links.
- Clear Polycarbonate Shell: Facilitates easy visual verification of wire alignment.
Main Specifications:
General Information:
| Product No.: | MTPR-66-X-EB2 | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ12 Plug | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | N/A | |
| Wire Type: | Solid | |
| Cable Type: | Flat | |
| Wire range: | 24-26AWG | |
| OD of the Individual Cable Core: | 0.89∼0.99mm | |
| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 VAC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC/DC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
