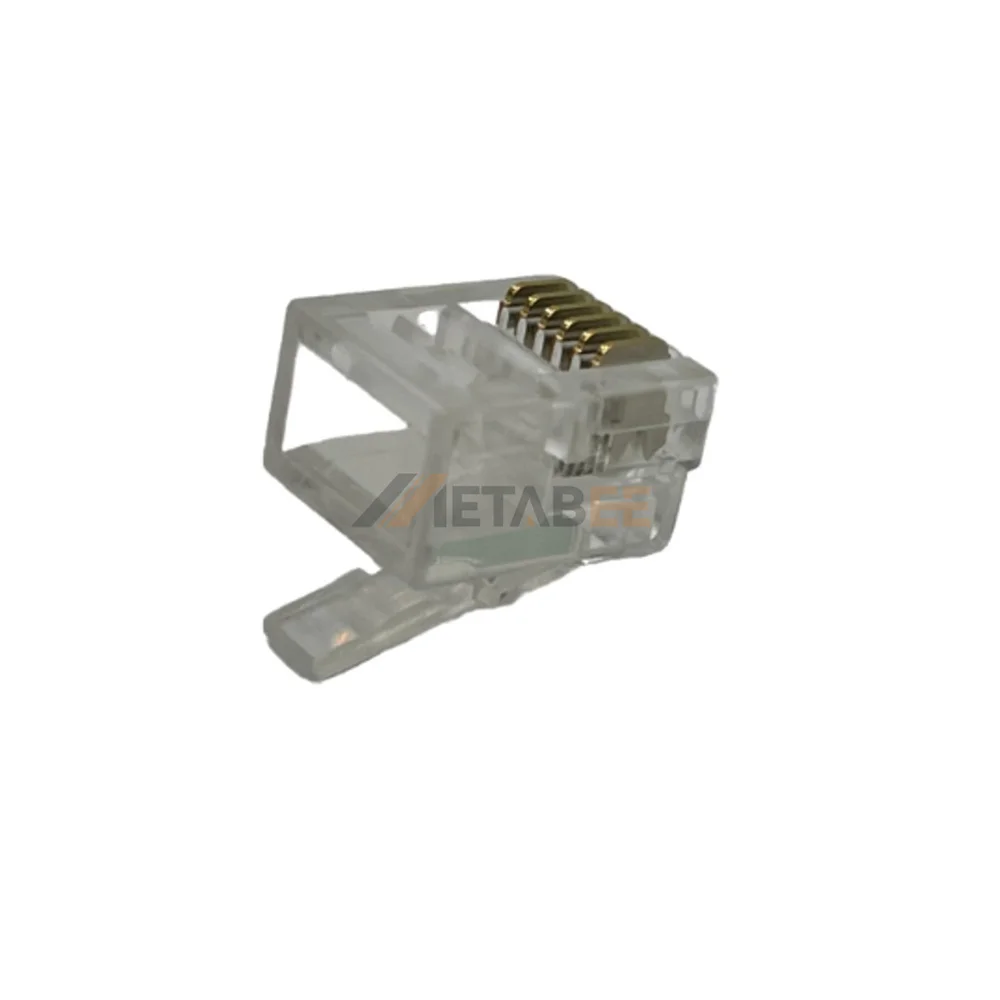

6P6C RJ12 Plug Modular Telephone Connector for Stranded Wire, Flat Cable, Cat3, Unshielded
Introduction:
Connecting flat telephone cables is efficient with this 6p6c rj12 Plug. This unshielded modular connector provides six-position connectivity for voice-grade networking. Because it is rated for Cat3 performance, the plug ensures stable signal transmission for standard phone lines. The internal structure is specifically shaped to accept stranded flat cables commonly found in residential setups. Clear housing allows technicians to verify wire alignment before the final crimping step. Many professionals utilize this durable component for reliable telecommunication links. Its simple design facilitates quick field installations without the need for specialized shielding.
Key Features
- 6P6C RJ12 Design: Provides six-pin connectivity for telephone systems.
- Flat Cable Support: Specifically designed for secure termination on flat wires.
- Cat3 Performance: Delivers reliable signal for voice-grade applications.
- Stranded Wire Compatibility: Ensures stable electrical bond with stranded conductors.
- Clear Modular Housing: Facilitates quick visual inspection of internal wiring.
Main Specifications:
General Information:
| Product No.: | MTP-66-X | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ12 Plug | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat3 | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |
| Body Length: | 13.34 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 VAC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
