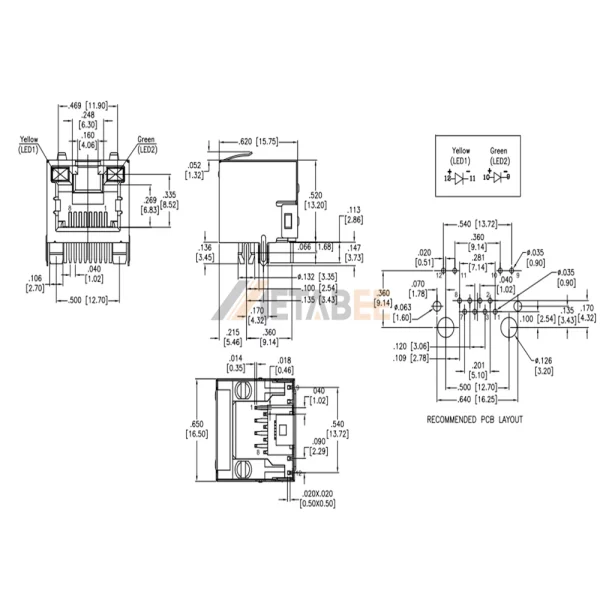

Shielded Right Angle RJ45 Jack PCB Connector, 8P8C, 1 Port, Tab-Down, Through Hole, R/A, Yellow/Green
Introduction:
This is a single port shielded right angle RJ45 jack designed for secure through hole PCB mounting in compact networking environments. Its nickel-plated brass shell provides a full shield to block electromagnetic interference and safeguard signal integrity. Constructed with durable thermoplastic housing, the connector supports a 1.5A current rating and maintains 500MΩ Min insulation resistance. The Gold over Nickel plated contacts provide superior conductivity within a wide temperature range of -40°C to +85°C. Utilizing a Tab-Down orientation, this unit features integrated yellow and green LED indicators for convenient status diagnostics. Technicians utilize this modular interface for stable data links in telecommunication and industrial networking hardware.
Key Features
- Full EMI Shielding: Metallic shell blocks external signal interference effectively.
- Right Angle Design: Optimizes vertical space for compact PCB layouts.
- Integrated LED Indicators: Provides instant visual feedback for link connectivity.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Industrial Temp Range: Performs reliably between -40°C and +85°C environments.
Main Specifications:
General Information:
| Product No.: | MTJ-88AGX1-FS-PG-VLG-WOT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

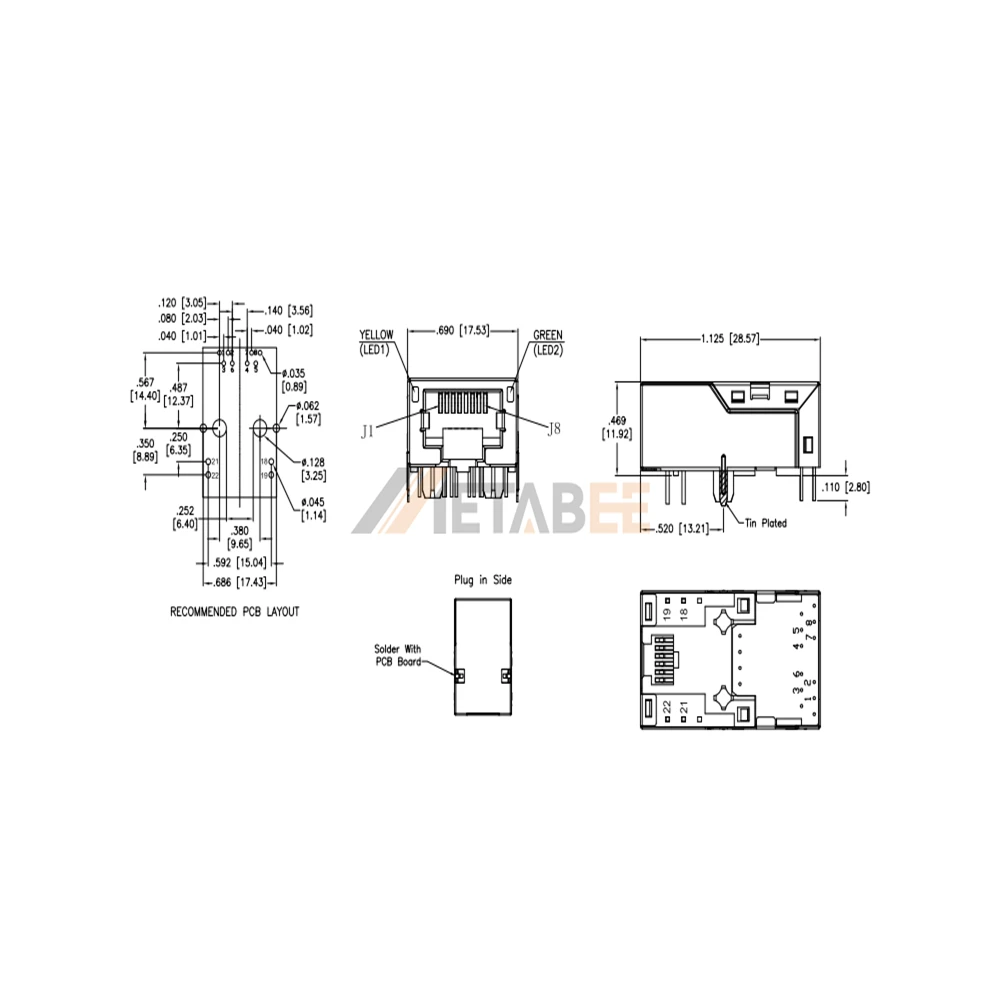

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
