Introduction:
An exceptionally wide operating temperature range from -40°C to 125°C defines this robust magnetic Ethernet jack. Severe thermal conditions pose no challenge for the black PBT insulator, which secures the right-angle module firmly to the PCB via an integrated board lock. A full shield provides crucial protection against electromagnetic interference during fast 10/100 Base-T data transmission. Visual link status is reliably displayed by yellow and green LEDs located within the tab-up housing. Gold-plated phosphor bronze contacts ultimately keep electrical resistance strictly below 20mΩ to guarantee flawless long-term connectivity.
Key Features
- Extreme Temperature Range: Operates reliably between -40°C and 125°C.
- 10/100 Base-T Speed: Supports standard Fast Ethernet data transfer.
- Full Shield Protection: Robust housing blocks electromagnetic interference effectively.
- Durable PBT Insulation: Black thermoplastic features a secure board lock.
- Low Resistance Contacts: Phosphor bronze guarantees <20mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88S01-FSD-PG6-LG-M26 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C ~ +125°C | |
| Flammability Rating: | UL 94 V-0 |

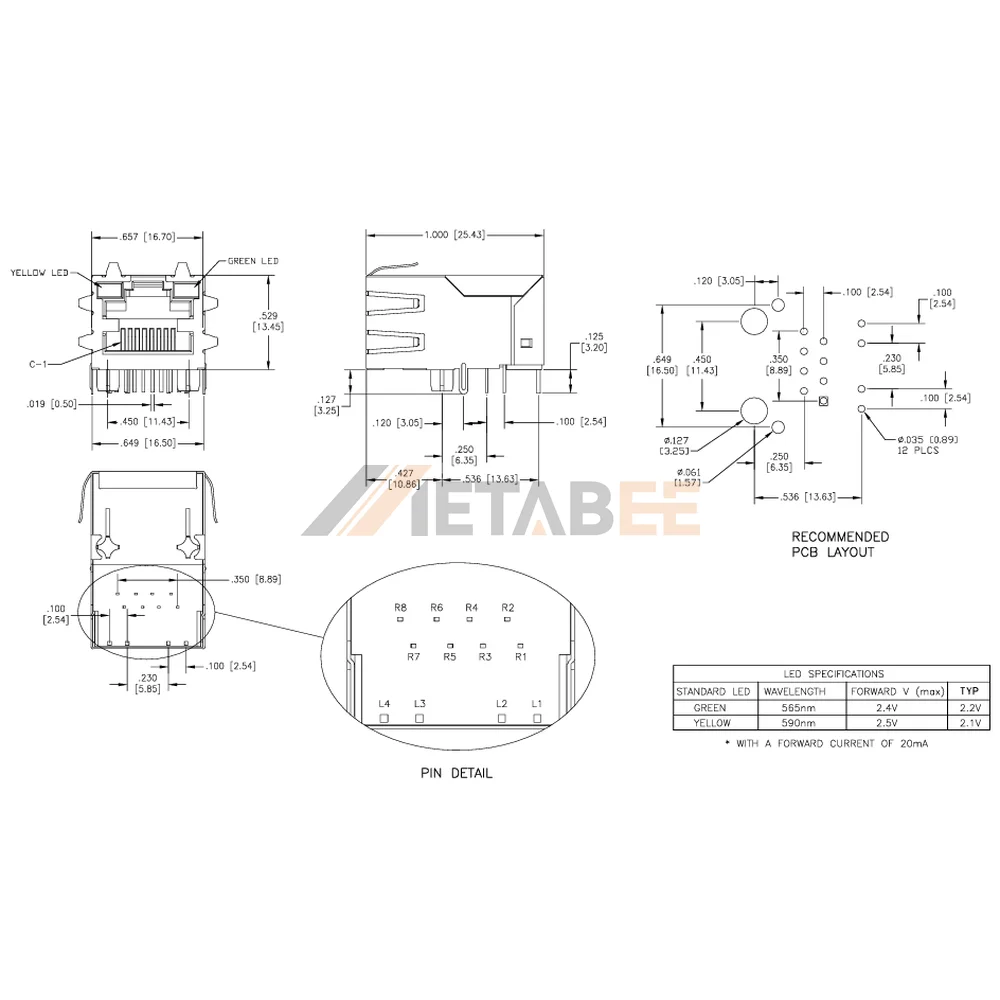

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
