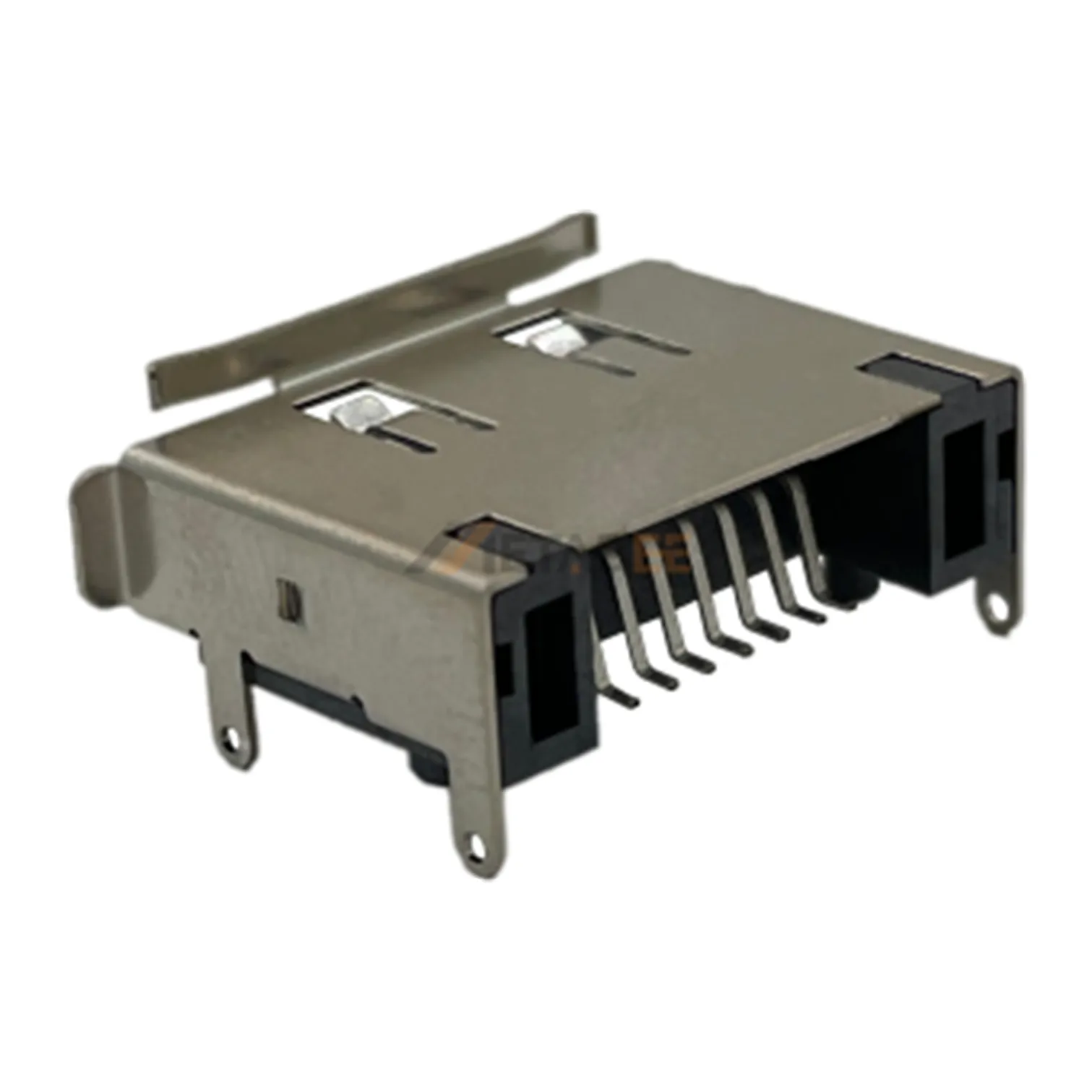

Shielded eSATA 7 Pin Receptacle, SMT, R/A
Introduction:
The shielded esata 7 pin receptacle is a female single-port connector designed for reliable external sata data transmission. Featuring a right-angle configuration and pcb smt mounting, it provides a compact and stable solution for space-constrained electronic devices and storage applications.
With a rated current of 1.5a, this receptacle offers contact resistance of 30 mω max and insulation resistance of 1,000 mω min. It supports 500 vac dielectric withstanding voltage, ul94v-0 flame resistance, and reliable operation from -55°c to +85°c.
Key Features
- Shielded esata design
- Female single-port, 7-pin configuration
- Right-angle orientation
- Pcb smt mounting
- 500 vac dielectric withstanding voltage
- -55°c to +85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-J-NP-SMT-P-S-PG | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
