Introduction:

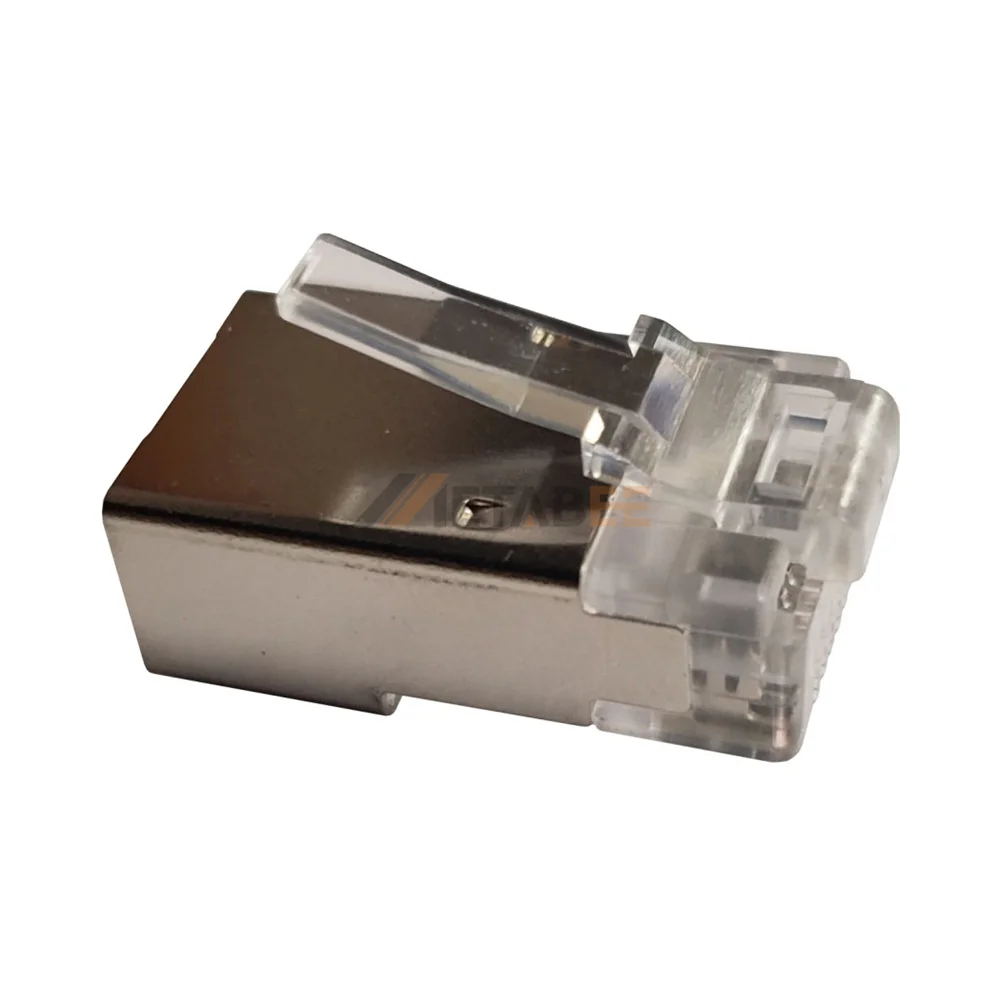

High-frequency data transmission remains stable with this shielded Cat6a RJ45 plug. It is manufactured with a protective metal shell to minimize electromagnetic interference across high-speed links. The connector specifically fits 23-24 AWG flat solid cables required for modern enterprise infrastructure. Utilizing 15-50 μin gold-plated contacts ensures a low-resistance connection and long-term durability against corrosion. Because the internal housing uses clear PC, installers can easily verify wire order during termination. This male connector supports 1.5A current and maintains electrical integrity in complex shielded cabling systems. Many technical teams rely on its robust build for 10Gbps networking applications.
Key Features
- Cat6a Speed: Supports high-bandwidth data for enterprise network systems.
- Shielded Metal Shell: Blocks EMI to maintain clear signal integrity.
- 15-50μin Gold Plating: Offers superior corrosion resistance and electrical conductivity.
- 23-24AWG Support: Accommodates thick solid copper conductors in flat cables.
- Clear PC Housing: Facilitates visual alignment checks for efficient installation.
Main Specifications:
General Information:
| Product No.: | MTP-88-X-S-C6AX | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Shielded | |
| Performance Category: | Cat6a | |
| Wire Type: | Solid | |
| Cable Type: | Flat | |
| Wire range: | 23-24 AWG | |
| OD of the Individual Cable Core: | 0.99∼1.09 mm | |
| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | H65Y |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
