Metal Shielded 8P8C RJ45 Modular Jack With LED and EMI Fingers, Single Port, Tab-Up, Through Hole, R/A
Introduction:
This is a single port shielded surface mount RJ45 ethernet jack engineered for high-density networking circuit boards requiring automated assembly. It features a robust nickel-plated metallic shell that provides a full shield to block electromagnetic interference and safeguard signal integrity. By utilizing hi-temp thermoplastic housing, the connector withstands the intense heat of industrial reflow soldering processes without any physical warping. The Gold over Nickel plated Phosphor Bronze contacts ensure a low-resistance path and a standard 1.5A current rating across a wide temperature range of -40°C to +85°C. Adopting a Tab-Up right angle configuration allows this component to optimize vertical board space while maintaining high insulation resistance. Technicians utilize this modular interface for industrial automation systems and telecommunication hardware requiring secure, unshielded SMT connectivity.
Key Features
- Surface Mount Design: Facilitates efficient automated SMT assembly on modern PCBs.
- Full EMI Shielding: Metallic shell effectively blocks external signal interference.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Tab-Up Configuration: Specifically oriented to optimize vertical board clearance.
Main Specifications:
General Information:

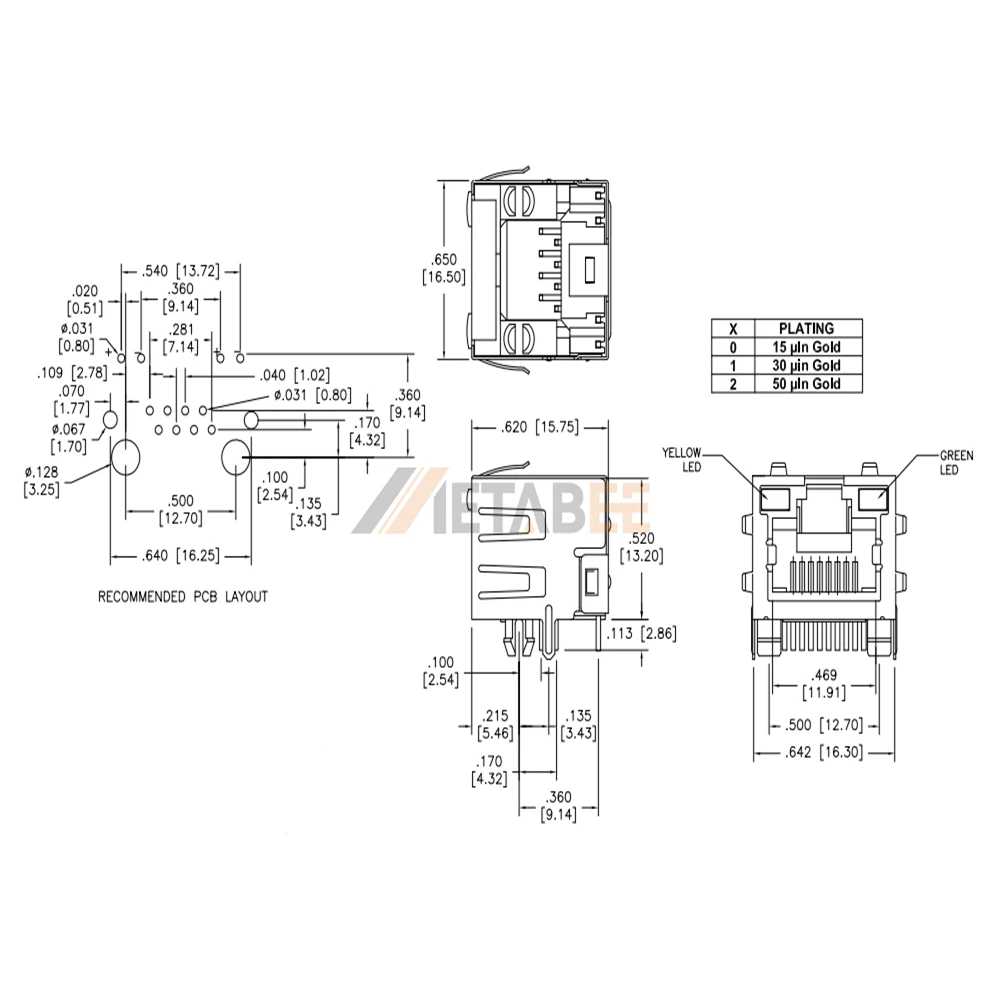

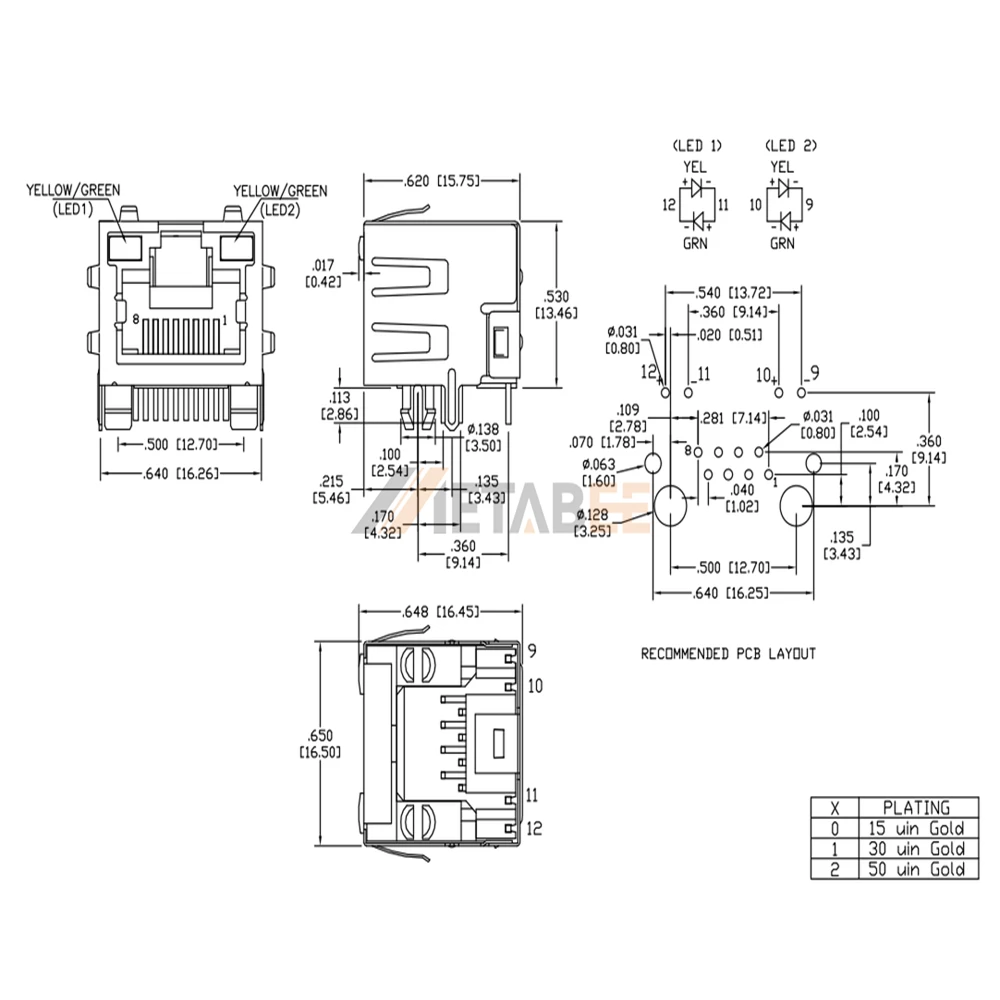

| Product No.: | MTJ-88ARX1-FSM-PG-LG, MTJ-88ARX1-FSM-PG-LP | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max / 45mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated/Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
