Introduction:
Reliable network connectivity is sustained by the magnetic RJ45 jack, designed for standard 10/100 Base-T Ethernet applications. Extreme industrial environments ranging from -40°C to 85°C pose no operational threat to the robust hi-temp thermoplastic housing. A nickel-plated brass shield entirely wraps the module to mitigate electromagnetic interference effectively during data transmission. Stable surface mount integration depends on the integrated board guide for precise PCB alignment. High-quality gold-plated copper alloy contacts strictly keep electrical resistance below 20mΩ for long-term signal clarity. For space-constrained designs, the tab-down profile operates cleanly without built-in LED indicators.
Key Features
- Industrial Temperature Range: Operates reliably between -40°C and 85°C.
- Full Brass Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Surface Mount Design: The SMT profile includes a precise board guide.
- Low Contact Resistance: Gold finish ensures signal integrity under 20mΩ.
- Streamlined No LED: Compact tab-down profile simplifies dense PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FS-NP-SMT-M5C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

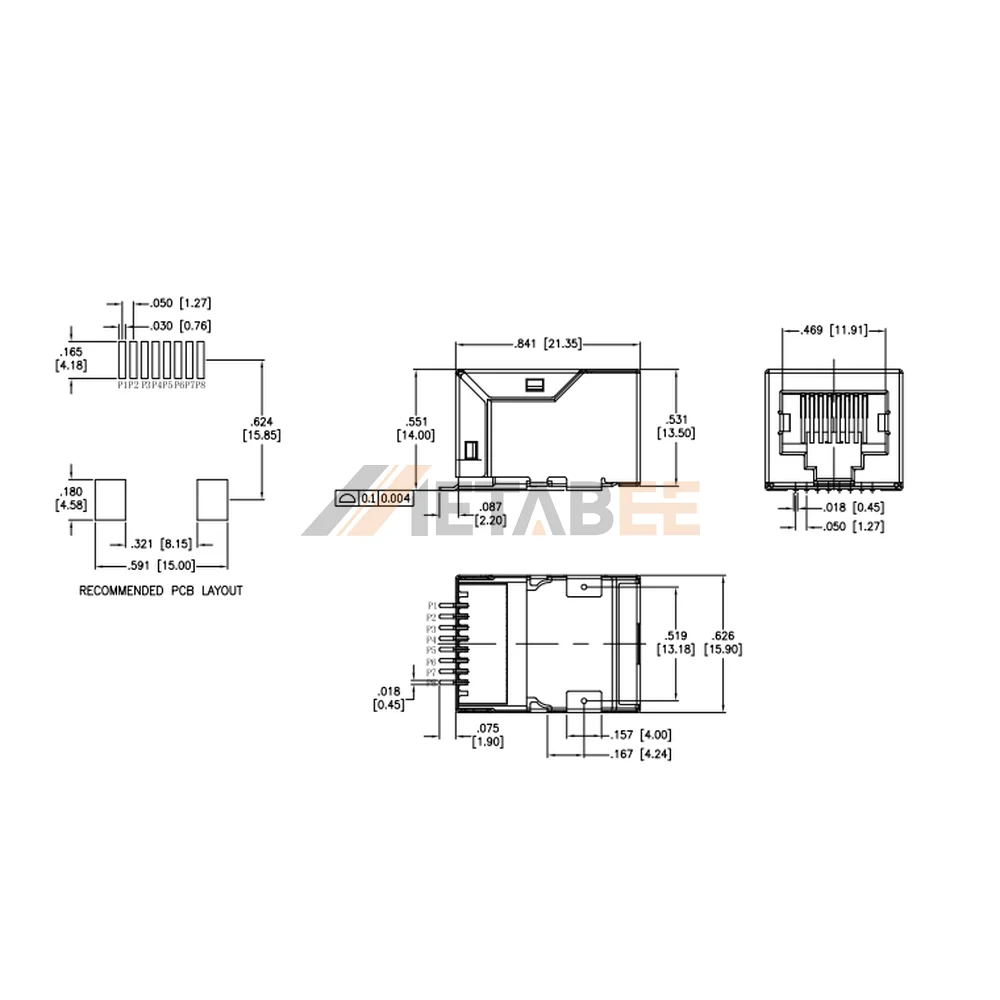

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
