SFP Transceiver Cage, Single Port (1×1), PCB Mount, THT, Integral EMI Spring Fingers
Introduction:
This single-port SFP transceiver cage houses MSA-compliant optical and copper modules on communication boards. Its rugged copper alloy frame delivers durable mechanical containment and continuous chassis grounding. Integrated EMI spring fingers press against the bezel cutout to suppress electromagnetic interference effectively. Through-hole solder pins pass through the host PCB, establishing a high-retention joint that resists mechanical stress during transceiver insertions. The assembly functions stably within a -40°C to +85°C operating range. These properties suit optical transceivers, network interface cards, and industrial data transmission switches.
Key Features
- Integral EMI Spring Fingers: Suppresses electromagnetic emissions at bezel openings.
- Through-Hole Solder Mount: Secures durable mechanical anchorage to PCB.
- Copper Alloy Frame: Provides low grounding resistance and structural rigidity.
- Wide Operating Range: Functions continuously from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | SFC-1-ST | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (1×1) | |
| PCB Mounting Style: | Through-Hole Solder | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series | |
| EMI Shielding Type: | Integral EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Cage Material: | Copper Alloy, Nickel plated | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

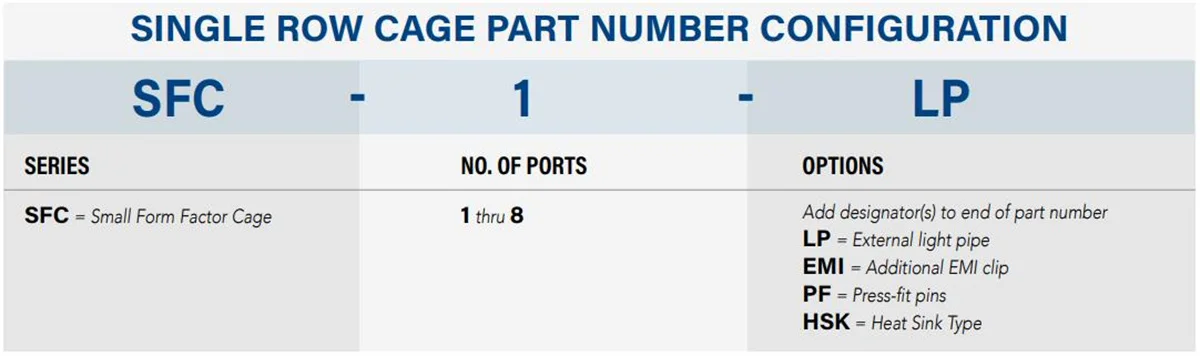

Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
