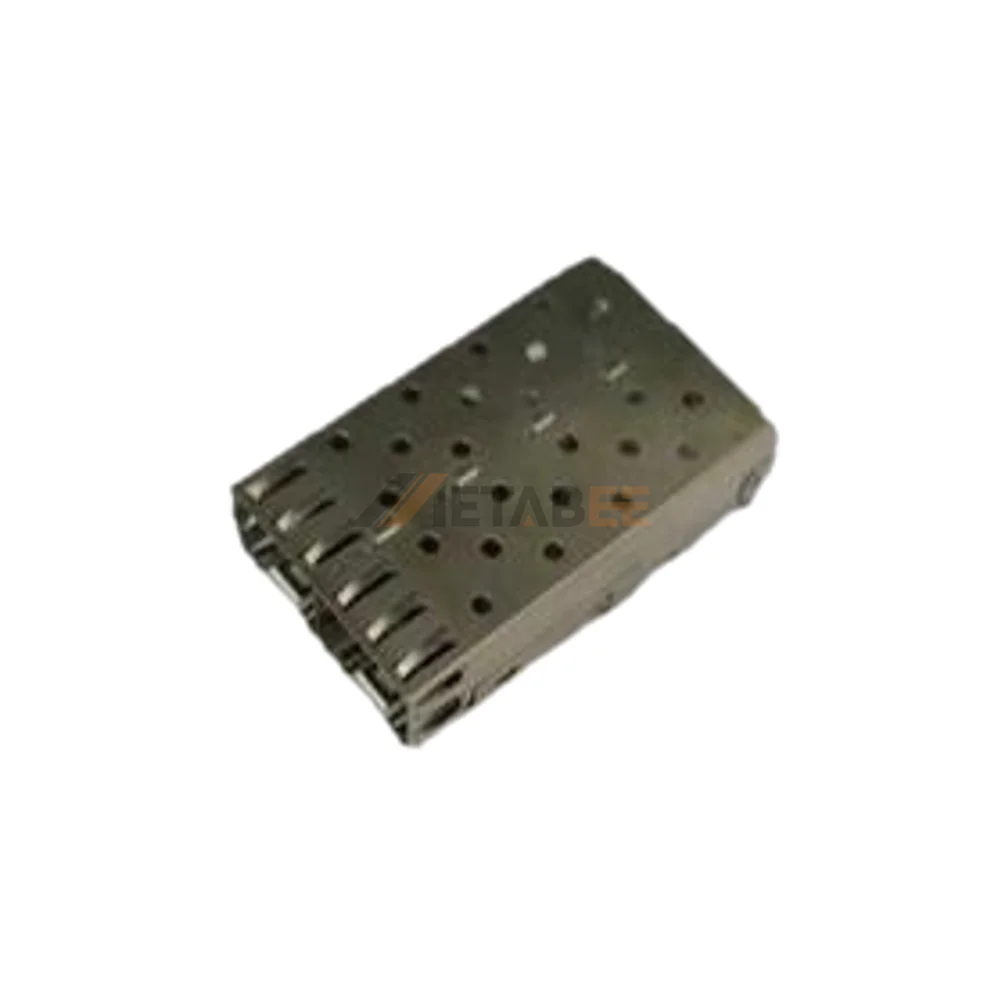

1×2 Ganged Dual Press-Fit SFP Cage, EMI Spring Fingers
Introduction:
This 1×2 ganged dual-port SFP cage houses two adjacent optical or copper transceivers to expand I/O interface density on system boards. Nickel-plated copper alloy construction provides surface corrosion protection while ensuring continuous electrical ground paths across the panel. Integrated EMI spring fingers form a perimeter seal against the bezel cutout, suppressing high-frequency emissions effectively. Solderless press-fit compliant pins anchor directly into PCB plated through-holes, eliminating assembly heat exposure and delivering reliable mechanical retention. Operating continuously from -40°C to +85°C, this dual cage suits industrial Ethernet switches, telecom aggregation routers, and high-density network interface cards.
Key Features
-
Solderless Press-Fit Pins: Secures board retention without thermal solder processing.
-
1×2 Ganged Configuration: Expands transceiver port count in compact footprints.
-
Integrated EMI Springs: Suppresses electromagnetic emissions along chassis cutouts.
-
Nickel-Plated Copper Alloy: Delivers corrosion resistance and ground conductivity.
-
Wide Temperature Range: Operates reliably across -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | SFC-2-CS1-PF | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 2 Ports (1×2 Ganged) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series (x2) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | Copper Alloy, Nickel plated | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
