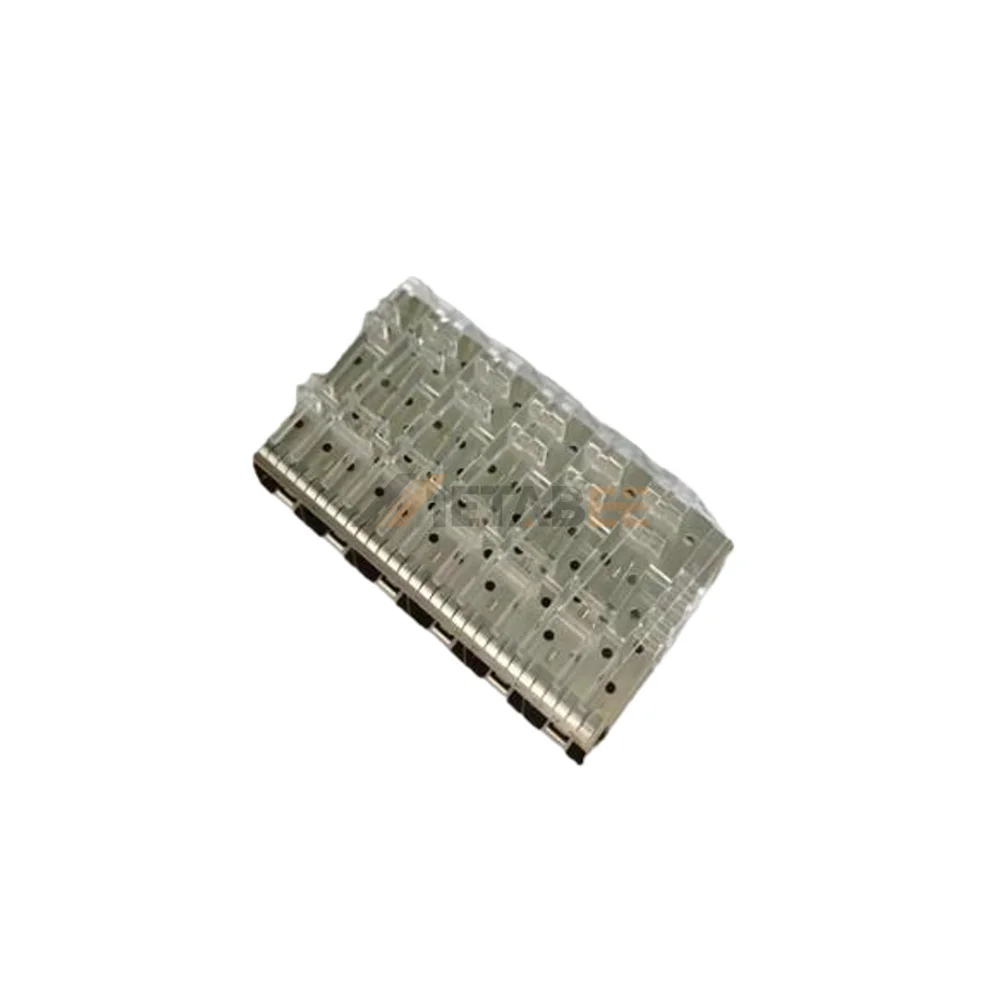

1×6 Ganged SFP Module Cage with EMI Gasket, Press-Fit, Integrated Light Pipes
Introduction:
This 1×6 ganged SFP module cage provides an edge-mount interface that accommodates six pluggable optical or electrical transceivers in a compact row. Constructed from copper alloy, the enclosure ensures mechanical robustness and dependable ground paths across high-speed channels. Integrated optical light pipes transmit PCB-level LED illumination directly to the front bezel, enabling real-time port link and activity inspection. Integrated copper alloy EMI spring fingers press against the bezel opening, suppressing high-frequency electromagnetic noise. Solderless press-fit compliant pins eliminate thermal wave processing and secure firm retention within host PCB vias. Rated for continuous operation between -40°C and +85°C, this 6-port assembly suits high-density Ethernet switches, optical line cards, and telecom aggregation routers.
Key Features
-
Integrated Light Pipes: Delivers visible transceiver status directly to front panel.
-
Solderless Press-Fit Pins: Secures board mounting without thermal wave processing.
-
1×6 Ganged Layout: Consolidates six transceiver bays into a single row.
-
Copper Alloy EMI Fingers: Grounds bezel apertures to suppress electromagnetic leakage.
-
Industrial Temperature Range: Operates continuously across -40°C to +85°C environments.
Main Specifications:
General Information:
| Product No.: | SFC-6-LP-EMI | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 6 Ports (1×6 Ganged) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | None | |
| Included Heat Sink: | Integrated Light Pipe | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series (x6) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | N/A | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
