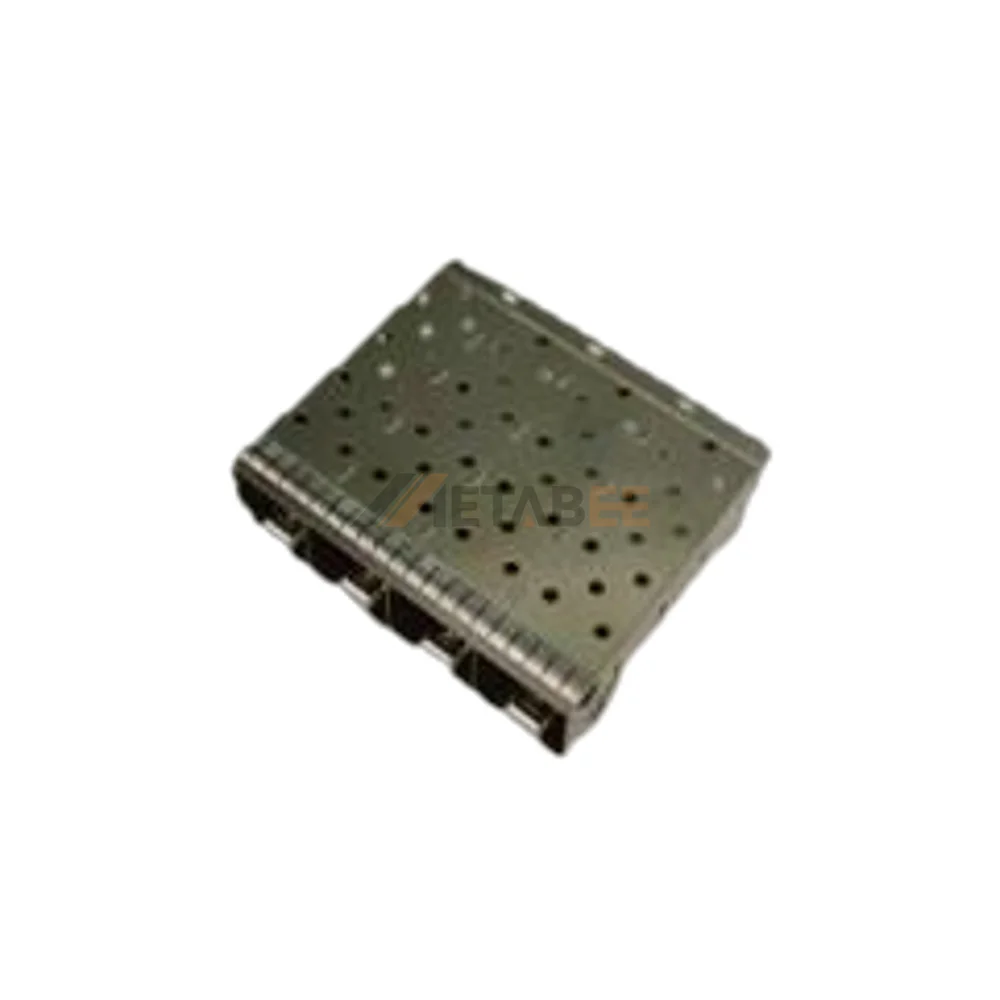

1×4 Port SFP Pluggable Module Cage, Press-Fit, EMI Clip
Introduction:
This 1×4 ganged SFP pluggable module cage provides four continuous transceiver ports to maximize panel density in data communication hardware. Fabricated entirely from copper alloy, the body ensures high mechanical strength and reliable ground continuity. Integrated copper alloy EMI spring clips establish a low-impedance ground path against chassis openings, preventing high-frequency electromagnetic radiation leakage. Solderless press-fit compliant pins press directly into PCB plated through-holes, providing strong retention while eliminating assembly solder stress. Operating stably from -40°C to +85°C, this quad cage suits multi-port Ethernet switches, telecom aggregation hubs, and core data center routers.
Key Features
-
1×4 Ganged Ports: Quadruples transceiver density along standard bezel frontplates.
-
Solderless Press-Fit Pins: Ensures durable PCB retention without thermal processing.
-
Copper Alloy EMI Clips: Suppresses electromagnetic emissions across all port openings.
-
Industrial Temperature Range: Operates reliably across -40°C to +85°C environments.
Main Specifications:
General Information:
| Product No.: | SFC-4-EMI | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 4 Ports (1×4 Ganged) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series (x4) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | Copper Alloy | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
