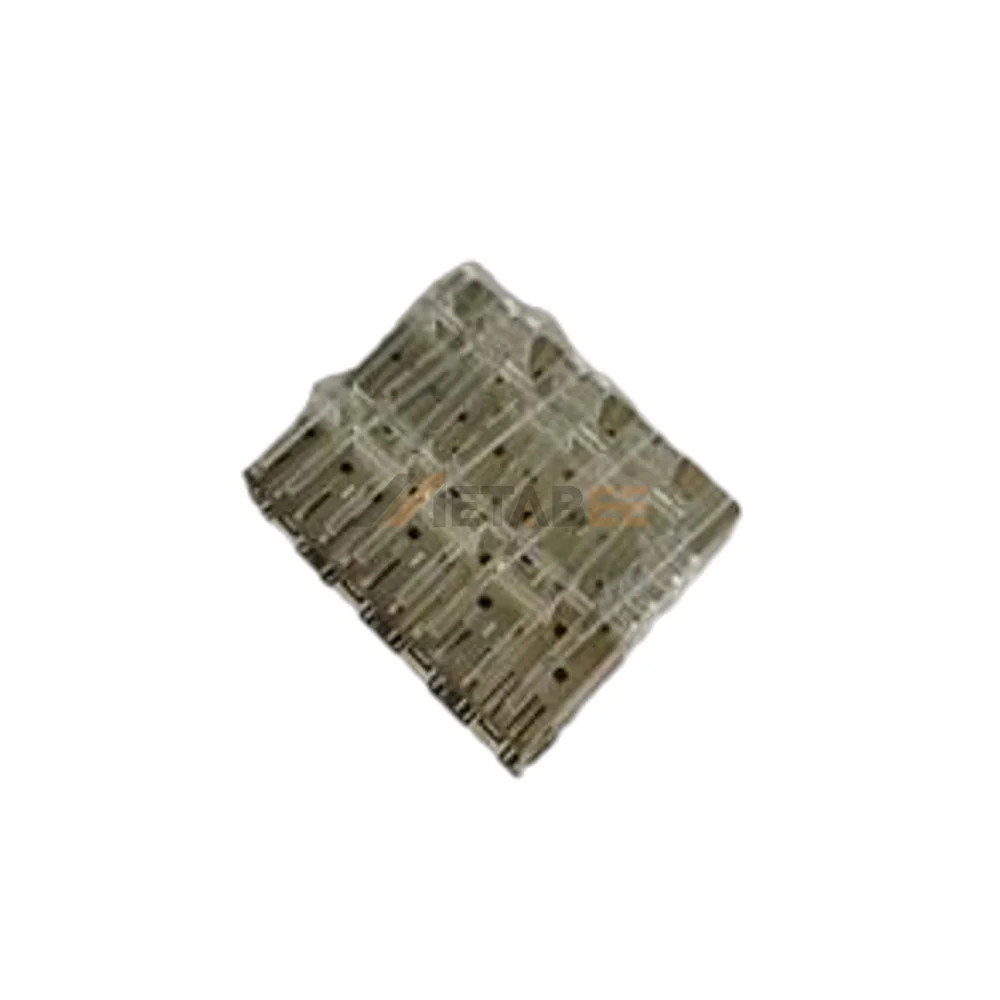

4-Port SFP Module Cage Connector, 1×4 Ganged, Press-Fit, PCB Mount, Integrated Light Pipes

4-Port SFP Module Cage Connector, 1×4 Ganged, Press-Fit, PCB Mount, Integrated Light Pipes

Introduction:

This 1×4 ganged SFP module cage connector integrates four side-by-side transceiver bays to maximize board I/O density along system front panels. Constructed from durable copper alloy, the frame maintains low electrical resistance and continuous chassis grounding. Built-in optical light pipes guide PCB-level LED illumination to the front bezel, allowing direct port activity monitoring without auxiliary hardware. In addition, solderless press-fit pins press firmly into through-board vias to provide strong mechanical retention without thermal solder exposure. Rated for continuous operation between -40°C to +85°C, this 4-port assembly supports enterprise aggregation switches, high-speed telecom routers, and multi-channel fiber optic interfaces.

Key Features

• Integrated Light Pipes: Transmits board-level LED status to front panels.

• 1×4 Ganged Footprint: Maximizes transceiver port count in compact layouts.

• Solderless Press-Fit Pins: Delivers high-strength board retention without heat.

• Copper Alloy Structure: Ensures continuous ground conductivity and mechanical durability.

• Wide Thermal Tolerance: Operates reliably across -40°C to +85°C.

Main Specifications:

General Information:

Materials and Plating:

Environmental:

Single Row Cage Part Number Configuration

Applications:

• Switch
• Router
• Server & Storage
• Fibre Channel and Gigabit Ethernet
• Networking & Telecommunication
