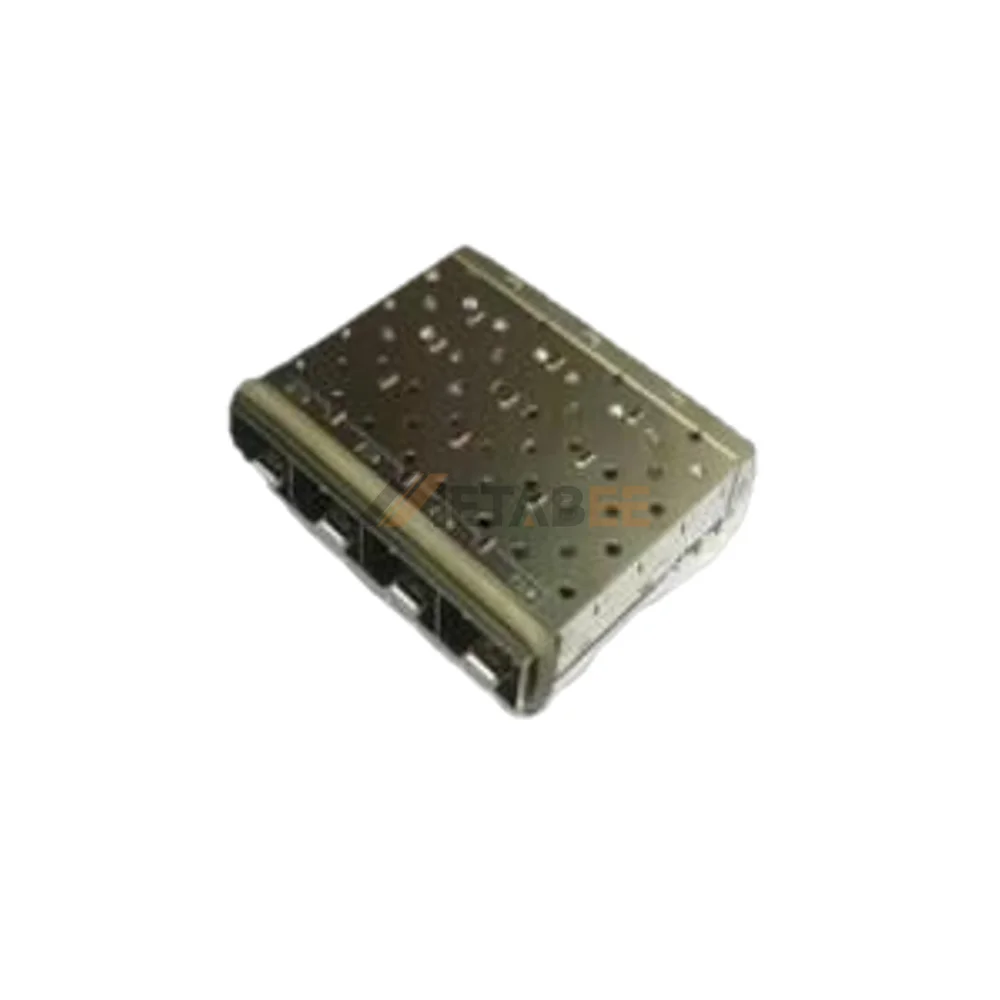

SFP Shielding Cage with EMI Elastomeric Gasket, 1×4 Port, DIP Solder
Introduction:
This 1×4 port SFP shielding cage accommodates four high-speed pluggable transceivers along communication board faceplates. Crafted from nickel-plated copper alloy, the body ensures surface corrosion resistance and reliable electrical ground conductivity. A perimeter conductive elastomeric gasket made of plated filled silicone forms a continuous compression seal against chassis panel openings, suppressing high-frequency electromagnetic radiation across the entire interface. Through-hole DIP solder tails penetrate the host PCB, providing strong mechanical anchorage against repetitive mating forces. Operating stably across temperatures from -40°C to +85°C, this 4-port cage suits core telecom routers, dense Ethernet switches, and optical transmission hubs.
Key Features
-
Conductive Elastomeric Gasket: Compresses seamlessly to seal high-frequency EMI leakage.
-
1×4 Ganged Ports: Quadruples transceiver density across compact faceplates.
-
Through-Hole DIP Solder: Provides rigid through-board mechanical retention to PCB.
-
Nickel-Plated Copper Alloy: Protects against oxidation and maintains low contact resistance.
-
Wide Thermal Range: Delivers dependable performance from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | SFC-4-ST-EMI-GT | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 4 Ports (1×4 Ganged) | |
| PCB Mounting Style: | Through-Hole Solder | |
| Included Lightpipe : | None | |
| Included Heat Sink: | Integrated Light Pipe | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series (x4) | |
| EMI Shielding Type: | Conductive Elastomer Gasket |
Materials and Plating:
| EMI Shielding Material: | Plated Filled Silicone | |
| Cage Material: | Copper Alloy, Nickel plated | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
