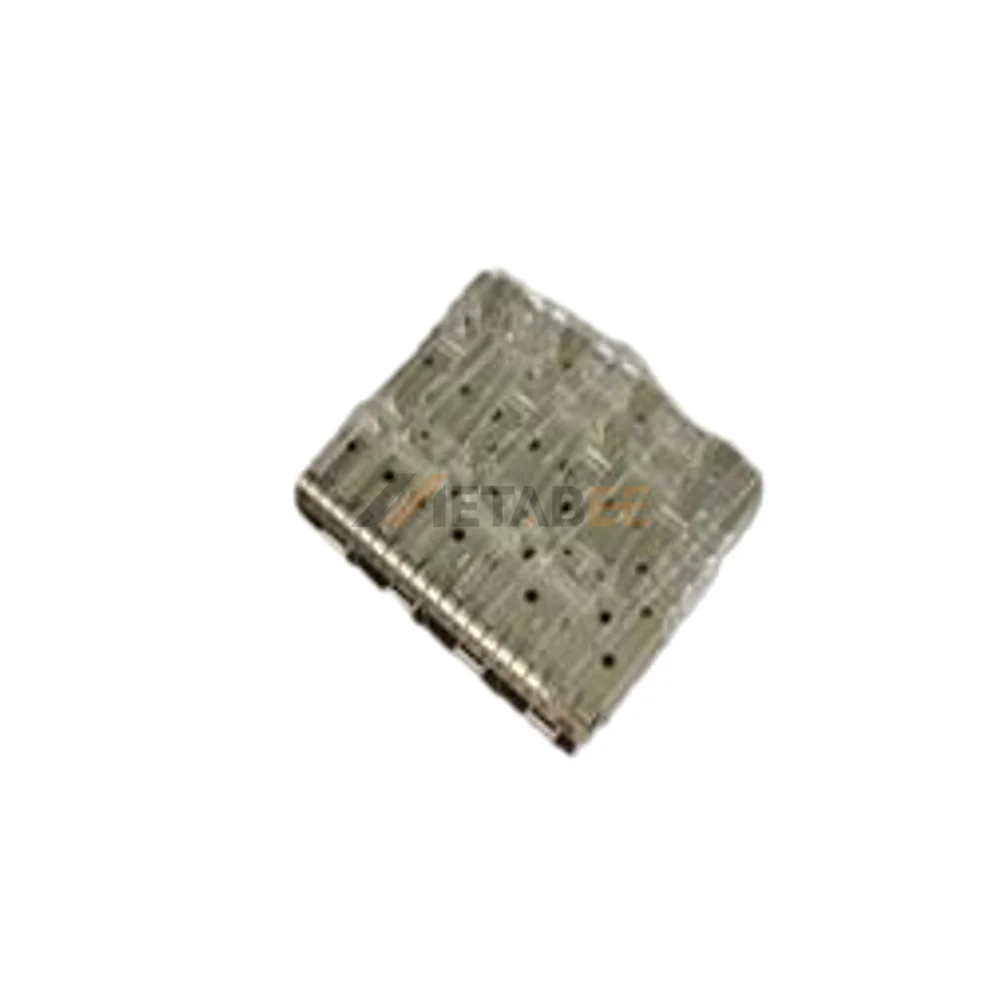

Multi-Port SFP Cage Connector, 1×4 Ganged, Solderless Press-Fit, Light Pipe & EMI Spring Fingers
Introduction:
Designed for dense networking architectures, this 1×4 multi-port SFP cage connector houses four individual transceiver modules in a single ganged row. Its resilient copper alloy structure delivers dependable ground continuity and physical cage stability. Solderless press-fit compliant pins eliminate thermal wave processing, anchoring the housing securely into PCB through-holes to endure repetitive module latching. Integrated light pipes route board LED indicators directly to the faceplate for instant link visibility, while built-in EMI spring fingers ground against chassis cutouts to seal high-frequency radiation. These capabilities suit modular enterprise switches, fiber optic patch panels, and industrial telecommunication gateways.
Key Features
-
1×4 Ganged Row: Maximizes transceiver port concentration along the bezel.
-
Solderless Press-Fit Mounting: Prevents thermal board stress and ensures firm retention.
-
Integrated Light Pipes: Delivers visible transceiver link signals to front panel.
-
Copper Alloy EMI Fingers: Grounds chassis seams to contain high-frequency emissions.
Main Specifications:
General Information:
| Product No.: | SFC-4-LP-EMI | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 4 Ports (1×4 Ganged) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | None | |
| Included Heat Sink: | Integrated Light Pipe | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series (x4) | |
| EMI Shielding Type: | N/A |
Materials and Plating:
| EMI Shielding Material: | EMI Spring Fingers | |
| Cage Material: | Copper Alloy | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
