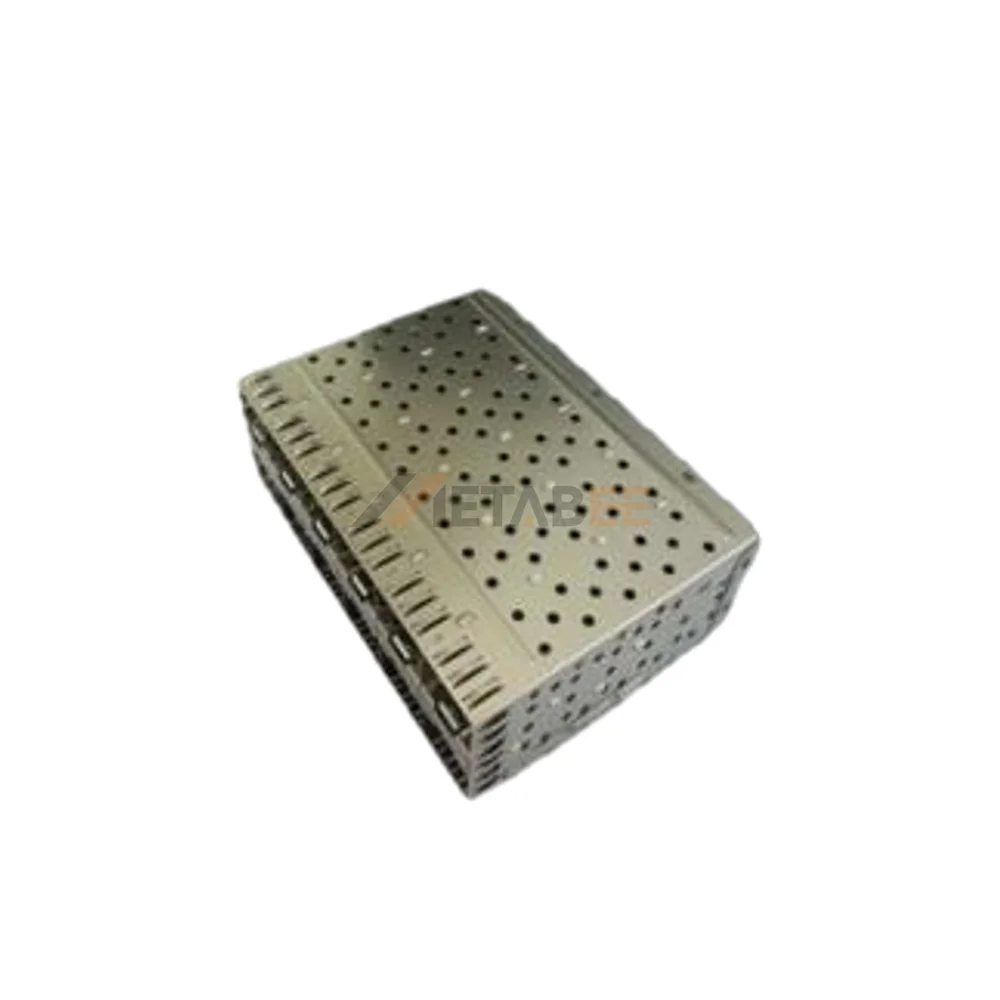

SFP Small Form Pluggable Multi-Port 2×6 Stacked Cage Connector, 12 Port, Press-Fit, EMI Fingers
Introduction:
This 2×6 stacked multi-port SFP cage connector consolidates twelve transceiver bays into a bi-level architecture to optimize faceplate real estate on host networking cards. Built as an integrated combo unit, it incorporates internal mating receptacles directly within a copper alloy cage, eliminating secondary connector soldering. Robust copper alloy contacts housed in high-temperature UL 94V-0 thermoplastic maintain electrical conductivity through multiple mating cycles. Integrated EMI spring fingers establish ground contact against chassis cutouts to suppress electromagnetic radiation. Solderless press-fit pins anchor firmly into PCB vias, providing mechanical retention without thermal exposure. This twelve-port assembly supports enterprise switches, core telecom routers, and high-density optical distribution shelves.
Key Features
-
2×6 Stacked Layout: Houses twelve SFP transceivers across dual rows.
-
Integrated Combo Unit: Combines cage and internal connector to simplify assembly.
-
Solderless Press-Fit Termination: Delivers mechanical board retention without thermal processing.
-
Copper Alloy EMI Fingers: Grounds bezel openings to reduce electromagnetic emissions.
-
UL 94V-0 Thermoplastic: Provides flame retardance and high-temperature dimensional stability.
Main Specifications:
General Information:
| Product No.: | SFCJ-12 | |
| Product Type: | Cage and Connector Combo | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 12 Ports (2×6 Stacked) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | Self-Contained (No separate socket needed) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Cage Material: | Copper Alloy | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | PBT, UL 94V-0 | |
| Contact Material: | Copper Alloy |
Environmental:
| Operating Temperature: | N/A | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
