Introduction:

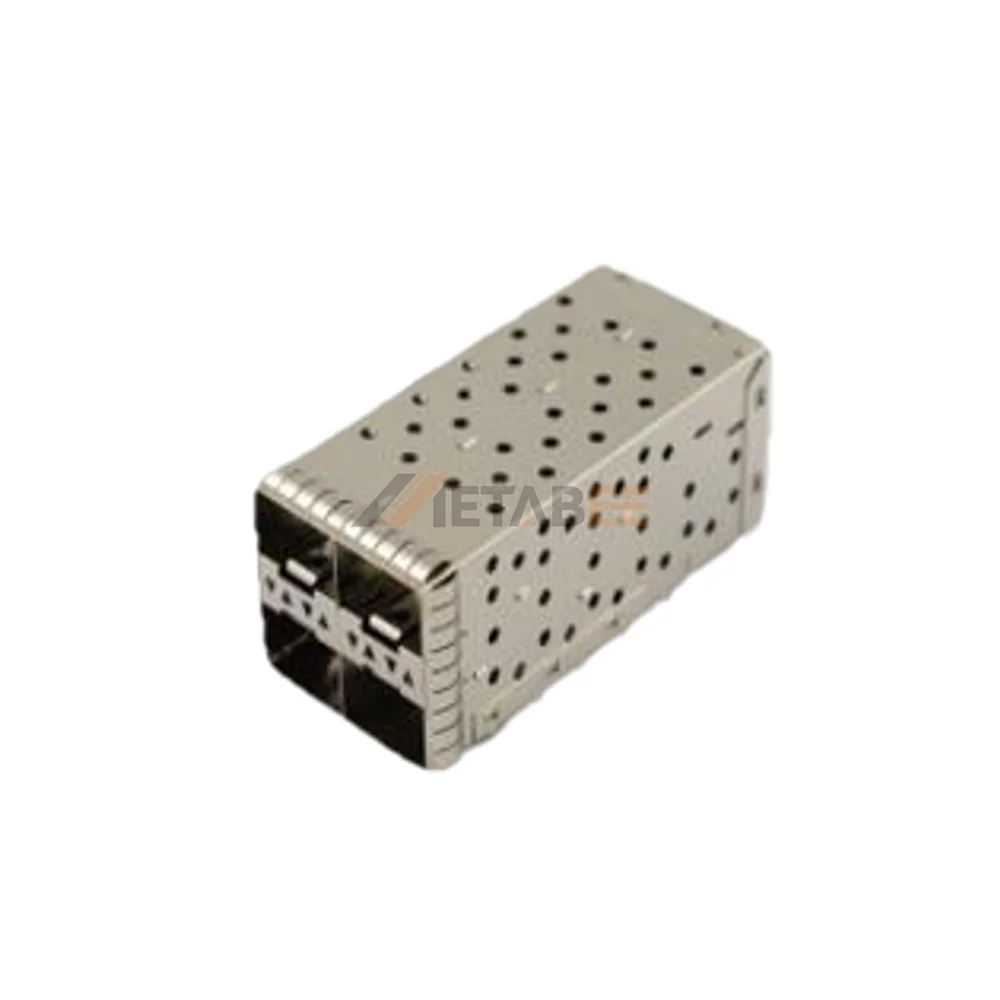

This 4-port SFP 2×2 receptacle and cage assembly combines external shielding and internal mating receptacles into a dual-tier stacked combo unit. Fabricated from corrosion-resistant copper-nickel alloy, the outer frame ensures reliable structural protection and standard electrical grounding continuity across panel cutouts. High-temperature UL 94V-0 LCP and PA46 housings insulate wear-resistant phosphor bronze contacts to preserve signal integrity through repetitive module mating cycles. Integrated enhanced LPX light pipes route board-level LED indicators to the front bezel, allowing real-time monitoring of transceiver activity on both levels. Compliant press-fit pins install directly into PCB plated through-holes, delivering high mechanical retention without thermal solder exposure. This stacked assembly suits high-density managed Ethernet switches, fiber media converters, and enterprise aggregation routers.
Key Features
-
2×2 Stacked Configuration: Integrates four transceiver ports in compact vertical space.
-
Enhanced LPX Lightpipes: Transmits board-level optical link signals to front bezel.
-
Solderless Press-Fit Pins: Secures high-strength PCB retention without heat damage.
-
Copper-Nickel Alloy Body: Resists corrosion and delivers stable standard grounding.
-
Integrated Combo Design: Eliminates separate SMT connectors to simplify board assembly.
Main Specifications:
General Information:
| Product No.: | SFCJ-4A-LPX | |
| Product Type: | Cage and Connector Combo | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 4 Ports (2×2 Stacked) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | Enhanced Light Pipe (LPX) | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | Self-Contained (No separate socket needed) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | Copper-Nickel Alloy | |
| Insulator Material: | LCP, UL 94V-0 | |
| Connector Insert Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Contact Material: | Phosphor Bronze |
Environmental:
| Operating Temperature: | N/A | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
