Introduction:

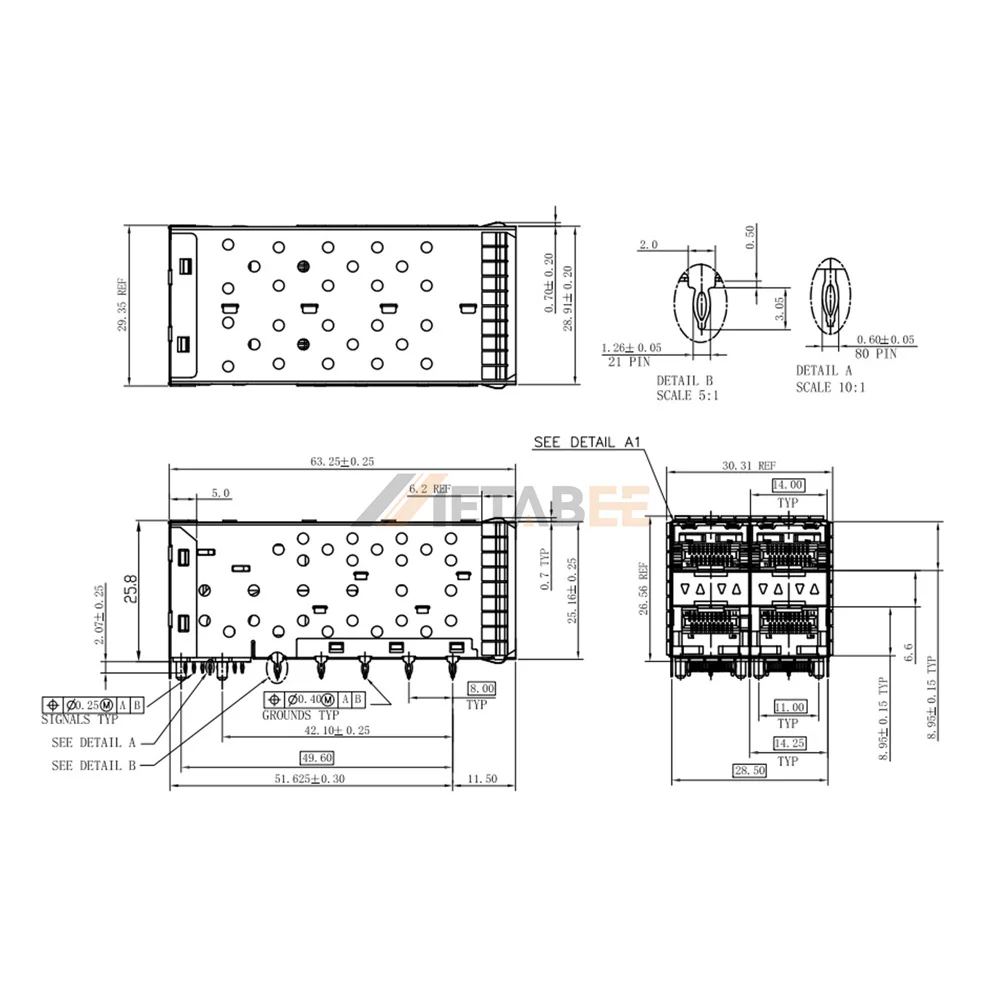

This 4-port shielded SFP 2×2 connector and cage combo integrates four transceiver bays into a dual-row stacked profile to optimize front panel density on system host boards. Built from resilient copper alloy, the unitary structure delivers continuous electrical ground paths and mechanical protection without requiring separate connector soldering. High-temperature UL 94V-0 LCP and thermoplastic housings secure phosphor bronze contacts to maintain signal integrity through frequent transceiver mating cycles. Integrated enhanced LPX light pipes channel PCB-level optical signals to the bezel, providing real-time port link monitoring across upper and lower tiers. Copper alloy EMI spring fingers press flush against chassis cutouts to suppress high-frequency radiation leakage. Solderless press-fit compliant pins anchor directly into PCB plated through-holes, providing mechanical retention while avoiding thermal assembly stress. This stacked combo suits high-density Ethernet switches, optical transceivers, and telecommunication access routers.
Key Features
-
2×2 Stacked Footprint: Doubles port count within compact front panel space.
-
Enhanced LPX Lightpipes: Channels clear link and activity signals to bezel.
-
Integrated Combo Receptacle: Streamlines PCB assembly by eliminating separate SMT sockets.
-
Solderless Press-Fit Pins: Secures board retention without thermal wave soldering stress.
-
Copper Alloy EMI Fingers: Grounds chassis openings to block electromagnetic noise leaks.
Main Specifications:
General Information:
| Product No.: | SFCJ-4-LPX-EMI | |
| Product Type: | Cage and Connector Combo | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 4 Ports (2×2 Stacked) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | Enhanced Light Pipe (LPX) | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | Self-Contained (No separate socket needed) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | Copper Alloy | |
| Insulator Material: | LCP, UL 94V-0 | |
| Connector Insert Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Contact Material: | Phosphor Bronze |
Environmental:
| Operating Temperature: | N/A | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
