Introduction:
This 2×6 stacked SFP cage integrates twelve transceiver bays and internal mating connectors into a high-density combo assembly. Fabricated from durable copper alloy, the housing provides structural rigidity and low ground impedance. Enhanced LPX light pipes route board LED signals clearly to the front bezel, allowing visual inspection of link and activity statuses across both tiers. Copper alloy EMI spring fingers establish positive contact against chassis cutouts to suppress high-frequency radiation leakage. Compliant press-fit pins install directly into PCB plated through-holes without heat processing, ensuring robust mechanical retention. This twelve-port assembly suits high-capacity Ethernet switches, enterprise aggregation routers, and telecom transport chassis.
Key Features
-
2×6 Stacked Layout: Consolidates twelve transceiver ports in two rows.
-
Enhanced LPX Light Pipes: Channels visual LED link status to front bezel.
-
Integrated Combo Receptacle: Eliminates discrete SMT connectors to simplify assembly.
-
Solderless Press-Fit Pins: Secures heavy multi-port housings without thermal stress.
-
Copper Alloy EMI Fingers: Grounds chassis openings to block electromagnetic emissions.
Main Specifications:
General Information:
| Product No.: | SFCJ-12-LPX-EMI | |
| Product Type: | Cage and Connector Combo | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 12 Ports (2×6 Stacked) | |
| PCB Mounting Style: | Press-Fit | |
| Included Lightpipe : | Enhanced Light Pipe (LPX) | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | Self-Contained (No separate socket needed) | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy | |
| Cage Material: | Copper Alloy | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | PBT, UL 94V-0 | |
| Contact Material: | Phosphor Bronze |
Environmental:
| Operating Temperature: | N/A | |
| Compliance: | Lead Free & RoHS Compliant |

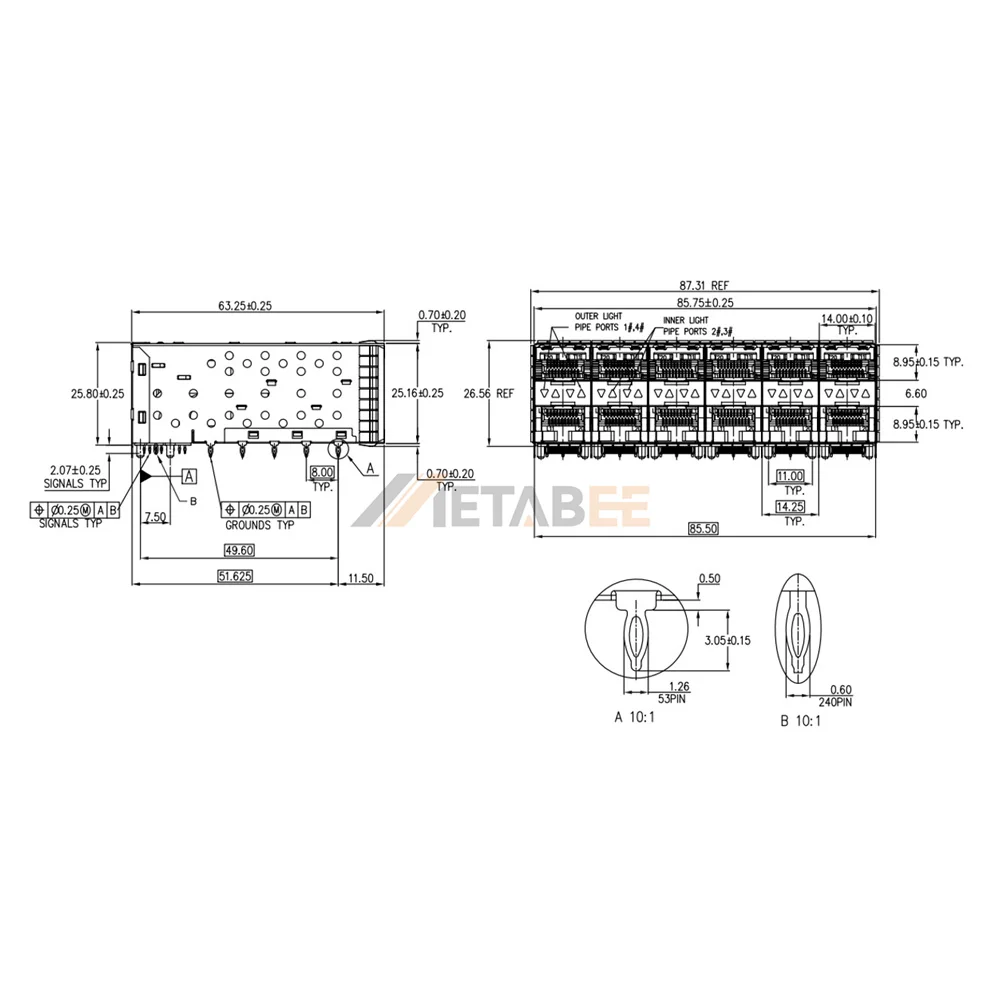

Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
