SFP Shielding Cage, 1×1 Single Port, PCB-THT, Enhanced Shielding Tabs
Introduction:
This 1×1 single-port SFP shielding cage provides secure mechanical housing for pluggable transceivers on communication boards. Fabricated from nickel-plated copper alloy, it offers corrosion resistance along with stable ground conductivity. Integrated EMI spring tabs maintain firm contact with the bezel cutout, sealing high-frequency leakage paths around the port opening. Through-hole solder pins anchor the body directly into the PCB, giving the assembly high resistance against mechanical stress during module insertion. The cage functions continuously across temperatures from -40°C to +85°C. These qualities suit optical line cards, industrial gateways, and telecommunication switches.
Key Features
-
Nickel-Plated Copper Alloy: Resists surface oxidation and improves conductivity.
-
Integrated EMI Spring Tabs: Seals panel openings to prevent radiation leakage.
-
PCB-THT Solder Legs: Anchors the cage firmly against mating forces.
-
Industrial Temperature Range: Operates reliably from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | SFC-1-ST-CS1X | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (1×1) | |
| PCB Mounting Style: | Through-Hole Solder | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFF-20 Series | |
| EMI Shielding Type: | Integral EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Cage Material: | Copper Alloy | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

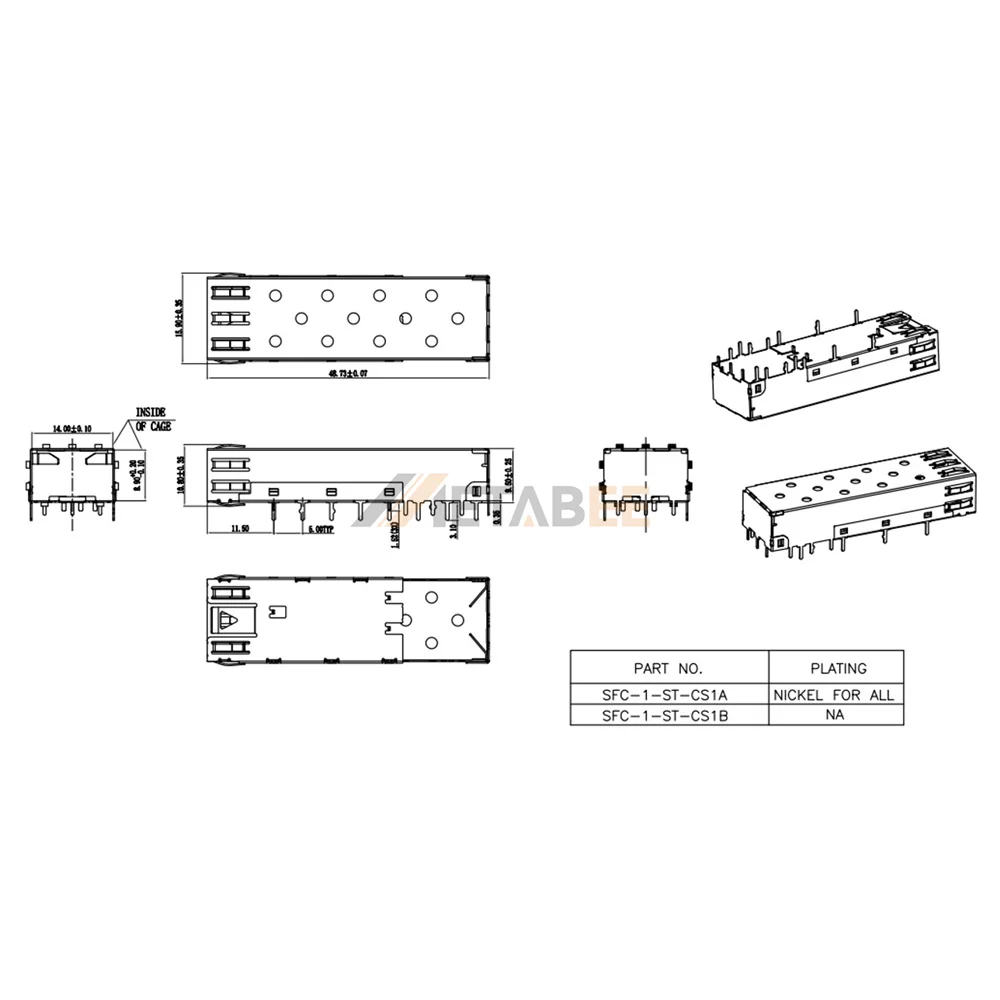

Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
