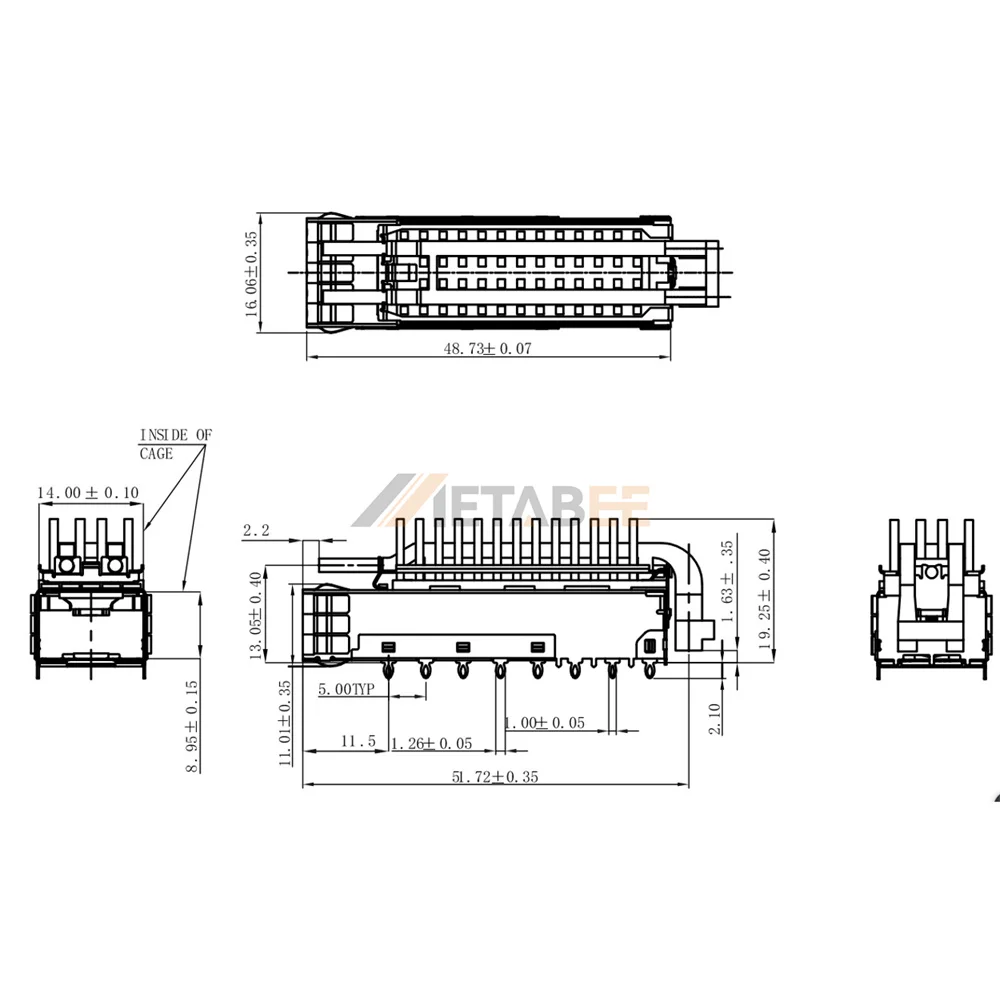

SFP Module Cage with EMI Fingers, 1×1 Port, Press-Fit, Pin-Fin Heat Sink, Light Pipe

SFP Module Cage with EMI Fingers, 1×1 Port, Press-Fit, Pin-Fin Heat Sink, Light Pipe

Introduction:

This single-port SFP module cage establishes a compact interface for pluggable optical and electrical transceivers on system boards. It features an aluminum pin-fin heat sink to dissipate module heat under multi-directional airflow. Solderless press-fit tails ensure strong mechanical retention on the PCB without thermal processing. Nickel-plated copper alloy EMI spring fingers block high-frequency leakage at the panel cutout, while integrated light pipes route port activity indications directly to the front bezel. These integrated functions support high-density network switches, optical line cards, and telecommunication access servers.

Key Features

• Pin-Fin Heat Sink: Enhances thermal dissipation across omnidirectional airflows.
• Solderless Press-Fit Tails: Secures reliable board mounting without thermal stress.
• Integrated Light Pipes: Delivers visible port status to the front bezel.
• Plated EMI Fingers: Suppresses electromagnetic leakage around panel openings.

Main Specifications:

General Information:

Materials and Plating:

Environmental:

Single Row Cage Part Number Configuration

Applications:

• Switch
• Router
• Server & Storage
• Fibre Channel and Gigabit Ethernet
• Networking & Telecommunication
