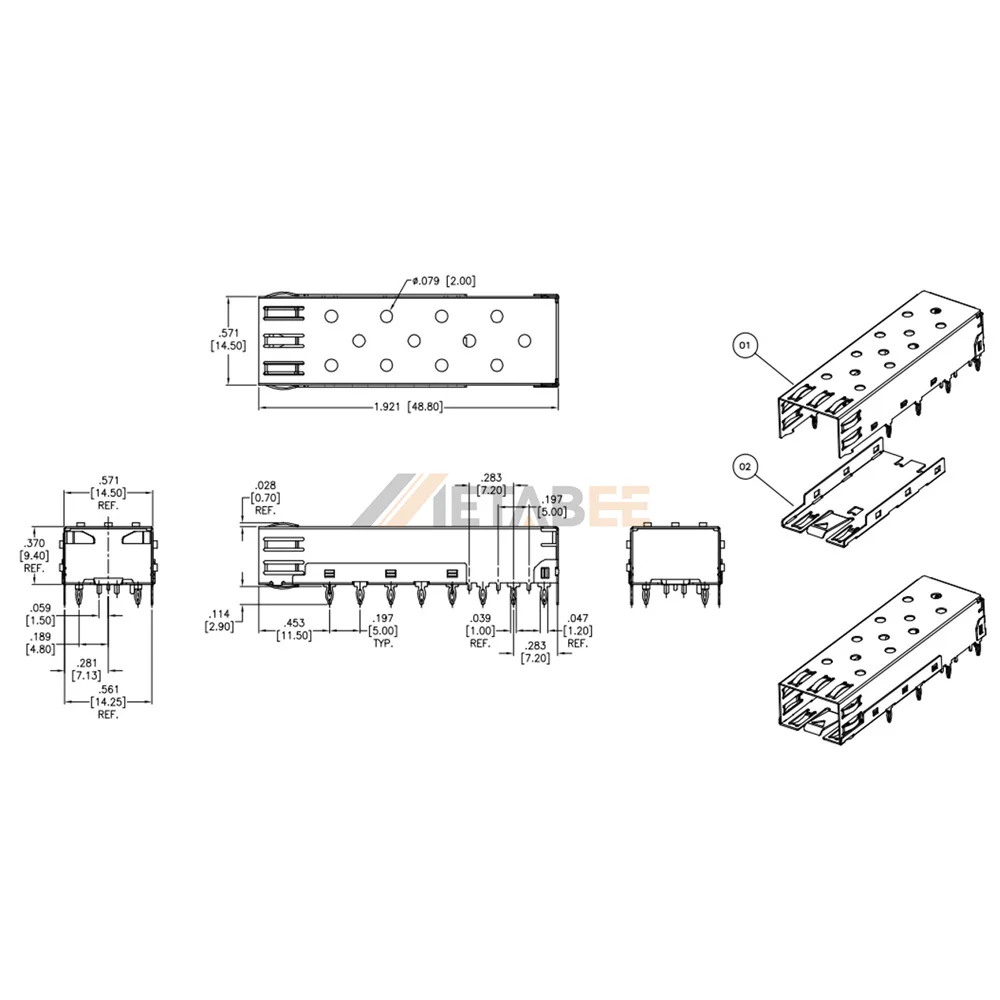

SFP Cage, 1×1 Single Port, Through-Hole Solder
Introduction:
This SFP cage provides a single-port (1×1) shielding enclosure designed for through-hole solder PCB mounting. Formed from corrosion-resistant copper-nickel alloy, the metal cage delivers physical rigidity and long-term grounding continuity. Built with integrated nickel-plated copper alloy EMI spring fingers around the front bezel, it establishes 360-degree contact with the chassis panel, containing electromagnetic radiation and suppressing high-frequency noise. The through-hole solder tails ensure solid mechanical anchoring on the host circuit board, operating reliably across industrial temperatures from -40°C to +85°C. Engineered to mate with SFF-20 series 20-pin SMT connectors, it accommodates standard optical and copper SFP transceiver modules. Common applications include gigabit Ethernet switches, media converters, telecom edge routers, and industrial automation gateways.
Key Features
- Copper-Nickel Alloy Body: Delivers high structural rigidity and corrosion protection.
- EMI Spring Fingers: Provides 360-degree chassis contact for noise suppression.
- Through-Hole Solder Tails: Ensures strong mechanical retention on host circuit boards.
- SFF-20 Series Mating: Interfaces cleanly with 20-pin SFP board receptacles.
Main Specifications:
General Information:
| Product No.: | SFC-1 | |
| Product Type: | Cage | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (1×1) | |
| PCB Mounting Style: | Through-Hole Solder | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | Mates with SFF-20 Series | |
| EMI Shielding Type: | EMI Spring Fingers |
Materials and Plating:
| EMI Shielding Material: | Copper Alloy, Nickel plated | |
| Cage Material: | Copper-Nickel Alloy | |
| Heat Sink Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
