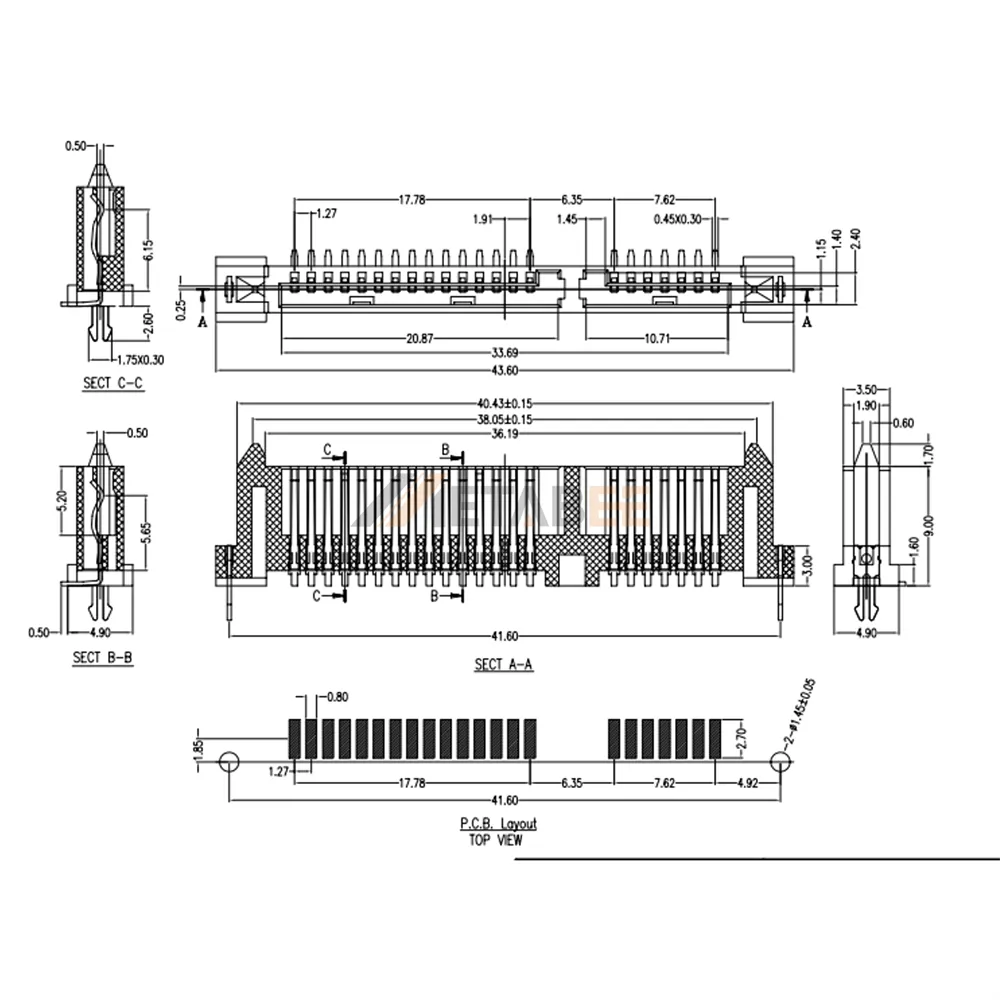

Serial ATA Combo 7+15 Pin Female Connnector, SMT, Vertical
Introduction:
This serial ata combo 7+15 pin female connector features dual-port design with vertical mounting orientation, adopting standard pcb surface mount (smt) type for stable and efficient circuit installation. it fits mainstream sata device assembly scenarios, delivering reliable connection performance for electronic equipment with precise pin structure and standardized production craft.
The connector owns stable electrical performance, with 1.5a rated current, maximum 30 mohms contact resistance and minimum 1000 mohms insulation resistance. it supports 500 vac dielectric withstanding voltage, adopts ul94v-0 flame retardant grade, and works steadily in -55°c to 85°c wide temperature range, ensuring long-term safe operation in complex working environments.
Key Features
-
Dual-port 7+15 pin male sata connector design
-
Vertical SMT pcb mounting structure
-
1.5a rated current with stable electrical performance
-
Ultra-low 30 mohms max contact resistance
-
Ul94v-0 flame retardant and 500 vac withstand voltage
-
Wide -55°c to 85°c working temperature rang
Main Specifications:
General Information:
| Product No.: | SATA-G1-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
Factory pricing and exceptional product quality. Get a free quote now!
