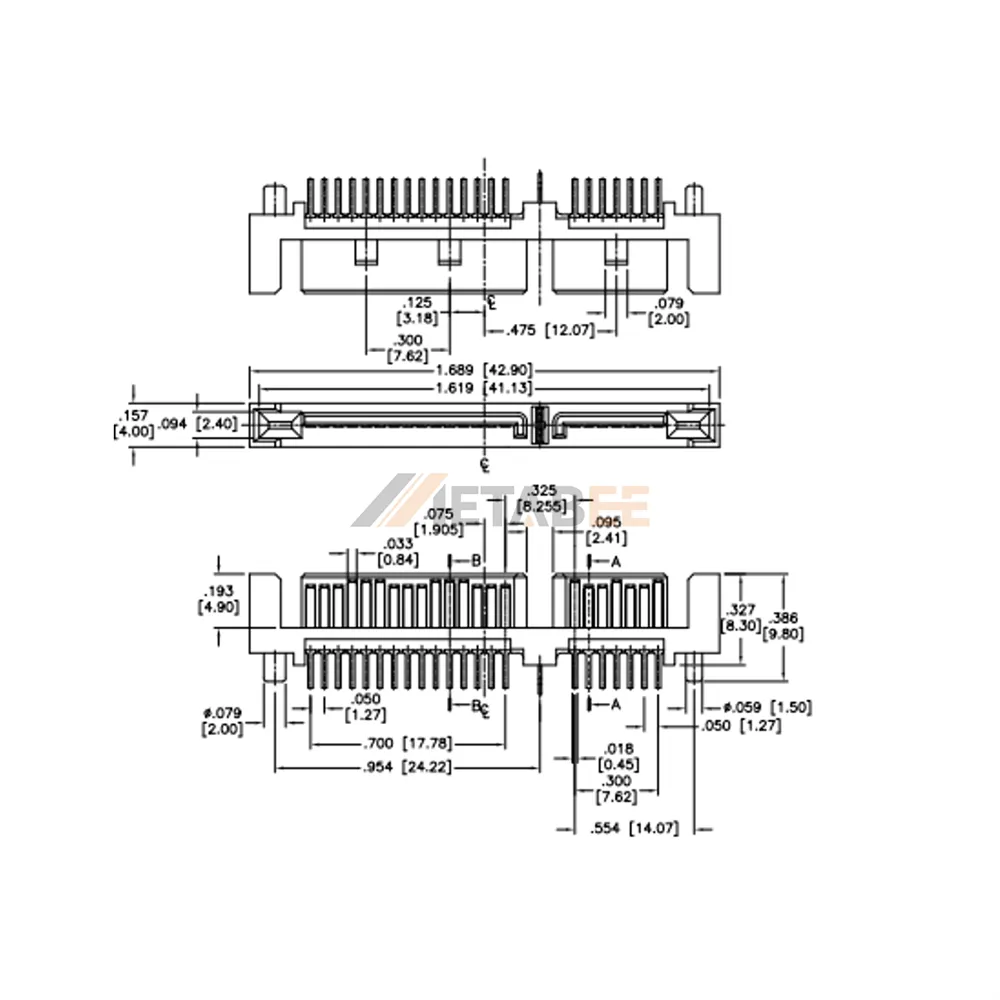

SATA Combo Female Connector for PCB, 7+15 Pin, THT, Vertical
Introduction:
This high-performance sata combo male connector features a dual-port 7+15 pin design, adopting vertical mounting orientation and pcb thru hole (tht) installation type. It is professionally engineered for pcb board assembly, delivering stable and reliable connection for sata interface transmission scenarios. Built with strict industrial standards, it ensures precise fitting and firm installation on various pcb boards, suitable for mainstream electronic device wiring and connection systems.
The connector supports a rated current of 1.5a, with maximum contact resistance of 30 mohms and minimum insulation resistance of 1,000 mohms. It withstands 500 vac dielectric voltage, featuring excellent electrical stability. With ul94v-0 flame retardant rating and a wide working temperature range from -55°c to 85°c, it boasts strong fire resistance and environmental adaptability for long-term stable operation.
Key Features
-
Dual-port 7+15 pin male sata connector design
-
Vertical thru hole (tht) pcb mounting structure
-
1.5a rated current with stable electrical performance
-
Ultra-low 30 mohms max contact resistance
-
Ul94v-0 flame retardant and 500 vac withstand voltage
-
Wide -55°c to 85°c working temperature rang
Main Specifications:
General Information:
| Product No.: | SATA-G-PM-VT-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
