SATA Combo 22 Pin Female Connector, SMT, Vertical
Introduction:
The SATA Combo 7+15 Pin Receptacle is a female dual-port connector designed for reliable data and power connections in sata storage applications. It combines 7-pin data and 15-pin power contacts in a space-efficient configuration, with a right-angle orientation and pcb through-hole mounting for secure board-level integration.
Manufactured for stable electrical performance, this sata receptacle supports a rated current of 1.5a, with contact resistance of 30 mΩ max and insulation resistance of 1,000 mΩ min. It provides 500 vac dielectric withstanding voltage and operates reliably across temperatures from -55°c to +85°c. The ul94v-0 flame-retardant rating supports demanding electronic applications.
Key Features
- Female dual-port design
- 7+15 pin sata configuration
- Right-angle mounting orientation
- Pcb through-hole mounting
- 1.5a rated current
- -55°c to +85°c operating temperature

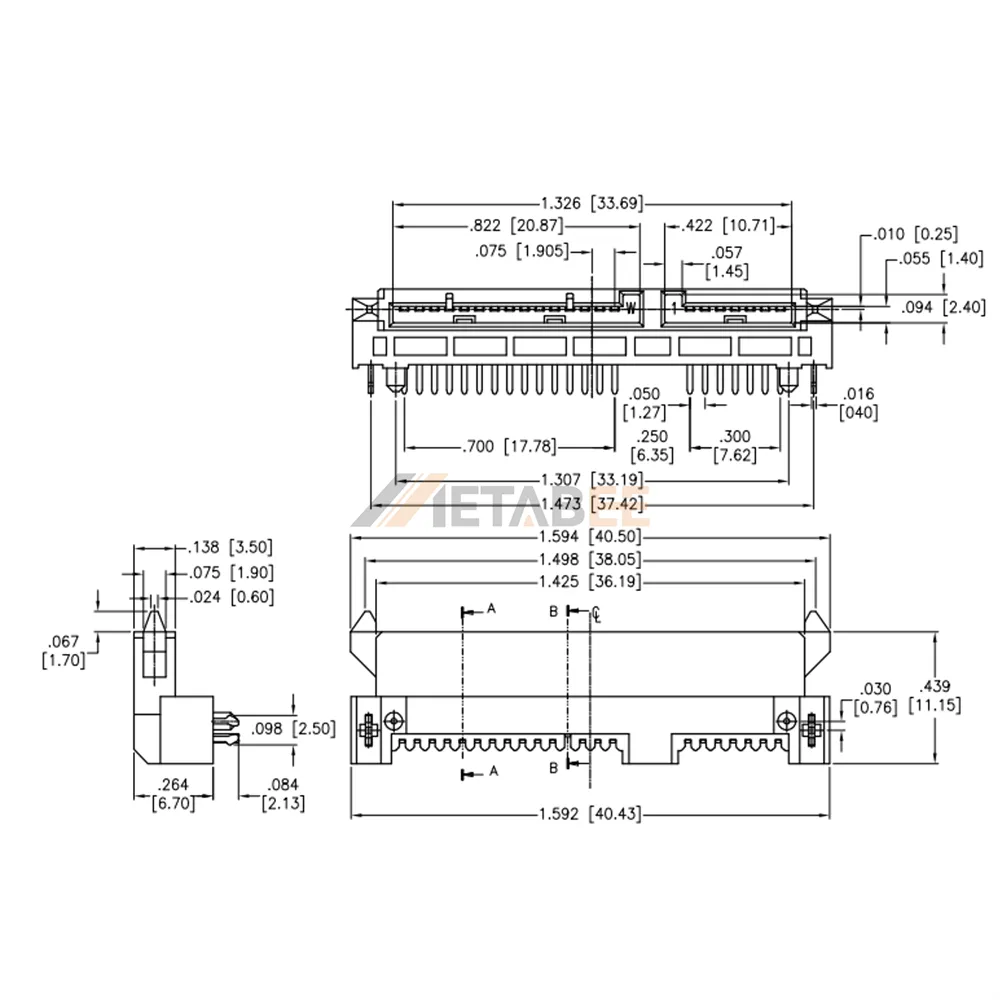

Main Specifications:
General Information:
| Product No.: | SATA-H-PM-RT-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
