SATA Combo 22 Pin Receptacle, Through Hole, Right Angle
Introduction:
Engineered for high-speed storage architectures and embedded hardware, this sata combo 22-pin (7+15) female receptacle integrates critical data transfer and power distribution into a single, compact interface. The dual-port configuration eliminates separate cabling requirements, optimizing internal airflow and maximizing board routing efficiency.
Designed in a right-angle profile, this receptacle facilitates clean horizontal mating ideal for tight server chassis, backplanes, and peripheral drive enclosures. Molded from high-grade ul94v-0 rated flame-retardant material, it delivers dependable mechanical endurance and electrical stability across demanding industrial environments.
Key Features
- Unified 22-pin (7+15) female design consolidates high-speed sata data and power pathways.
- Space-efficient right-angle orientation streamlines low-profile enclosure integration.
- 1.5 a rated current capacity ensures stable electrical delivery to connected drives.
- Low 30 mohms maximum contact resistance minimizes signal attenuation and losses.
- Superior 1,000 mohms minimum insulation resistance with 500 vac dielectric tolerance.
- Rugged -55°c to +85°c operating range protected by ul94v-0 flame-retardant housing.

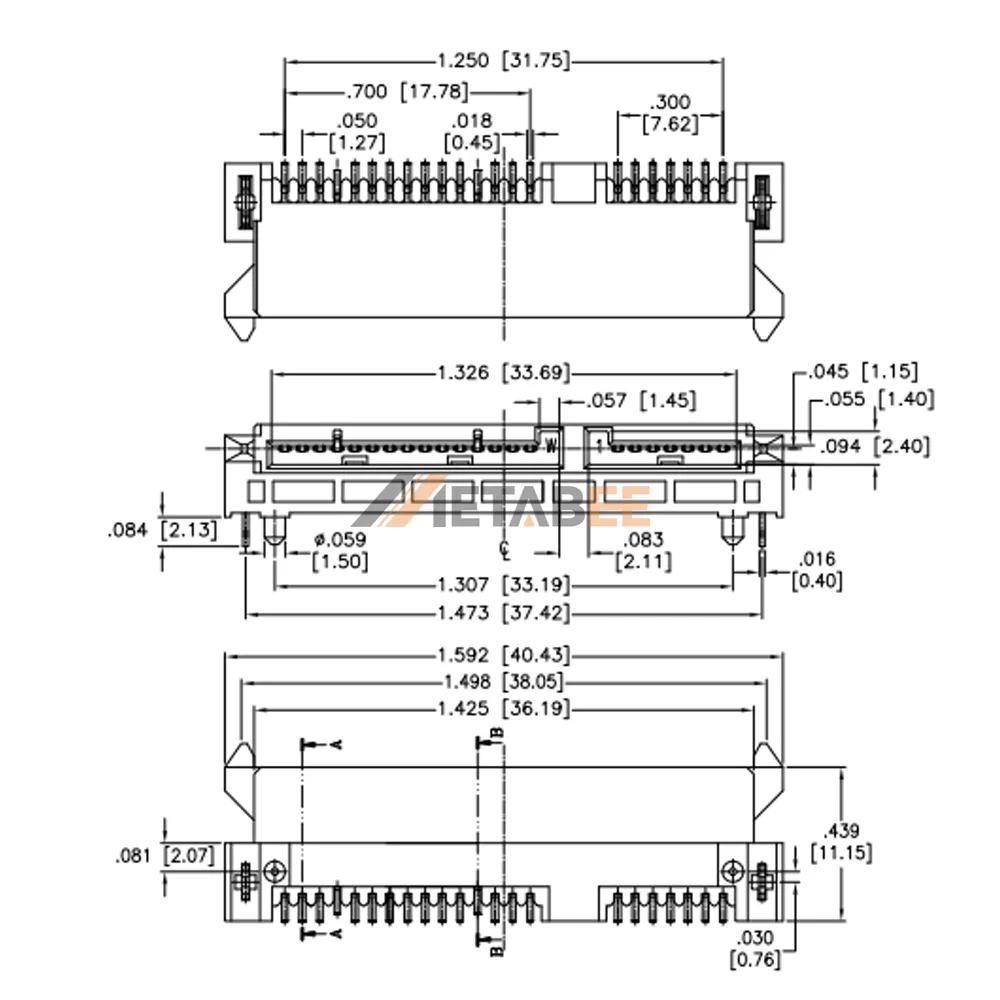

Main Specifications:
General Information:
| Product No.: | SATA-H-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
